Front Suspension

Front Shock Absorber

Service Repair No - 60.30.02

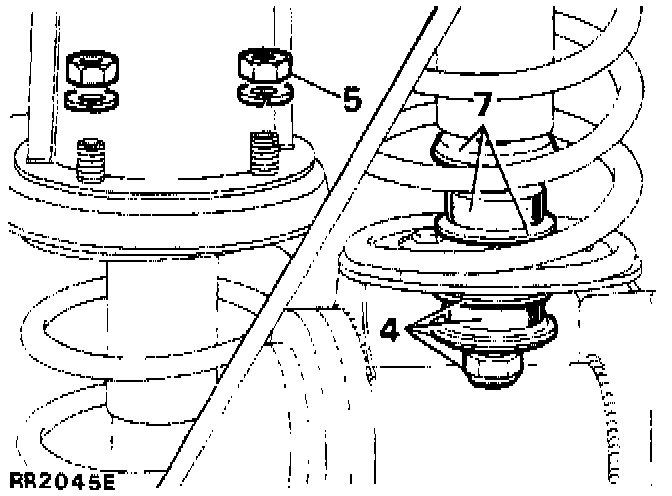

Removal

1. Loosen road wheel retaining nuts.
2. Support chassis on stands and remove road wheel.
3. Support axle weight with jack.
4. Remove shock absorber lower fixing and withdraw cupwasher, rubber bush and seating washer.
5. Remove four shock absorber bracket fixing nuts.
6. Withdraw shock absorber and bracket assembly.
7. Withdraw lower seating washer, rubber bush and cupwasher.

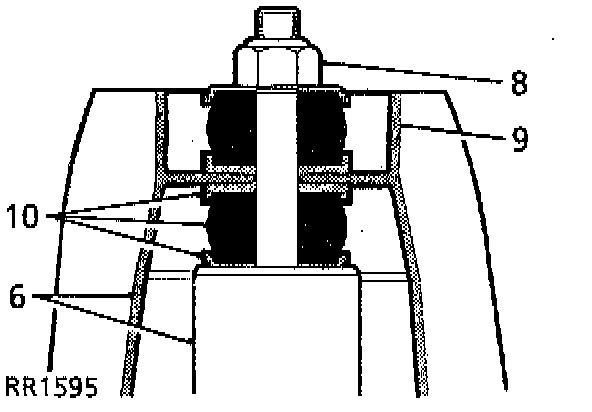

Shock Absorber Mounting:

8. Remove fixings, shock absorber to mounting bracket.
9. Withdraw mounting bracket.
10. Lift off top seating washer, rubber bush and cupwasher.






Installation

1. Assemble shock absorber components.
2. Position shock absorber, complete with bracket and secure with 4 fixings.
3. Secure shock absorber lower fixing.
4. Install road wheel, remove chassis stands and jack. Tighten wheel nuts to specification.
