Rear

Rear Stabilizer Bar Link

Service Repair No - 64.35.24






Removal

1. Remove 2 nuts, bolts, washers and rubber bushes from links and lower stabilizer to clear links.
2. Remove cotter pin and loosen castellated nut a few turns.

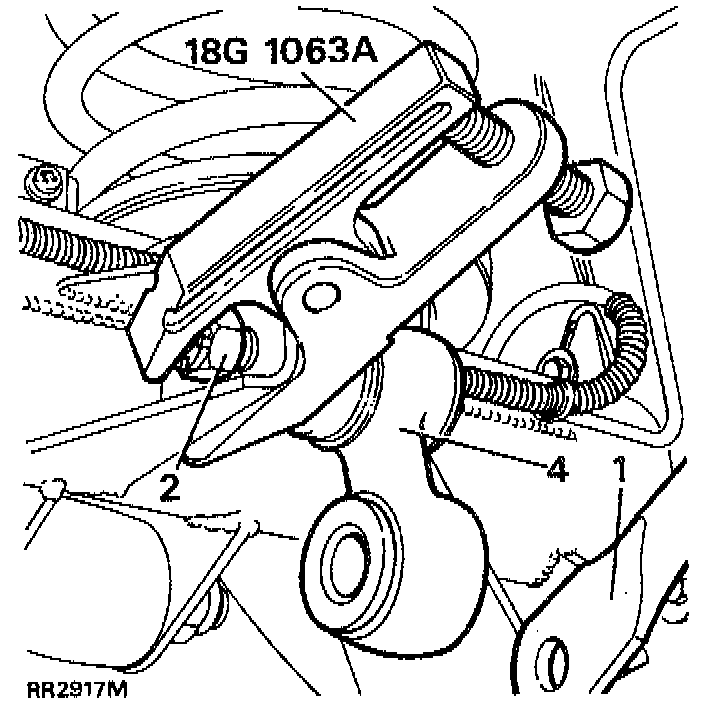

3. Release link using tool LRT-57-018 as shown.
4. Remove castellated nut and link.

Installation

1. Install stabilizer bar link arm and castellated nut. Point link arm down as shown. Tighten fastener to 40 Nm (30 ft. lbs.) and install new cotter pin.
2. Align stabilizer bar to links.
3. Install bolts, washers and rubber bushes using new self locking nuts and secure stabilizer bar to links. Tighten to 68 Nm (50 ft. lbs.).
