Power Steering Fluid Reservoir: Service and Repair

Power Steering Fluid Reservoir

Service Repair No - 57.15.08


Removal

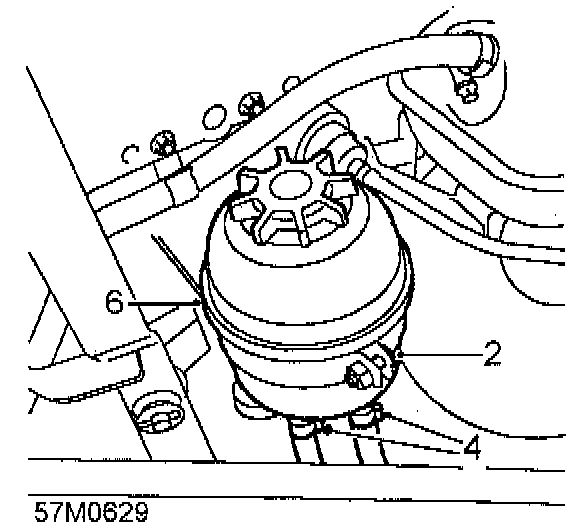

1. Position drain tin beneath reservoir.
2. Slacken mounting bracket clamp bolt and raise reservoir to gain access to feed and return hose retaining clips.
3. Slacken clips, disconnect hoses from fluid reservoir, allow fluid to drain.

CAUTION: Plug connections to prevent ingress of dirt. Discard fluid drained from system. Do not allow fluid to contact paintwork, if spilled, remove fluid and clean area with warm water.

4. Remove reservoir.






Installation

1. Position reservoir, connect feed and return hoses and tighten clips to 3 Nm (2 ft. lbs.).
2. Fit reservoir in clamp, tighten clamp bolt.
3. Fill reservoir between upper mark and end of dipstick with power steering fluid.
4. Bleed power steering system.
