Land Rover
>>
1994
>>
Defender 90 (LD) V8-3.9L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Wiring Diagrams
>>
Power Distribution
>>
Fuseboxes
Fuseboxes

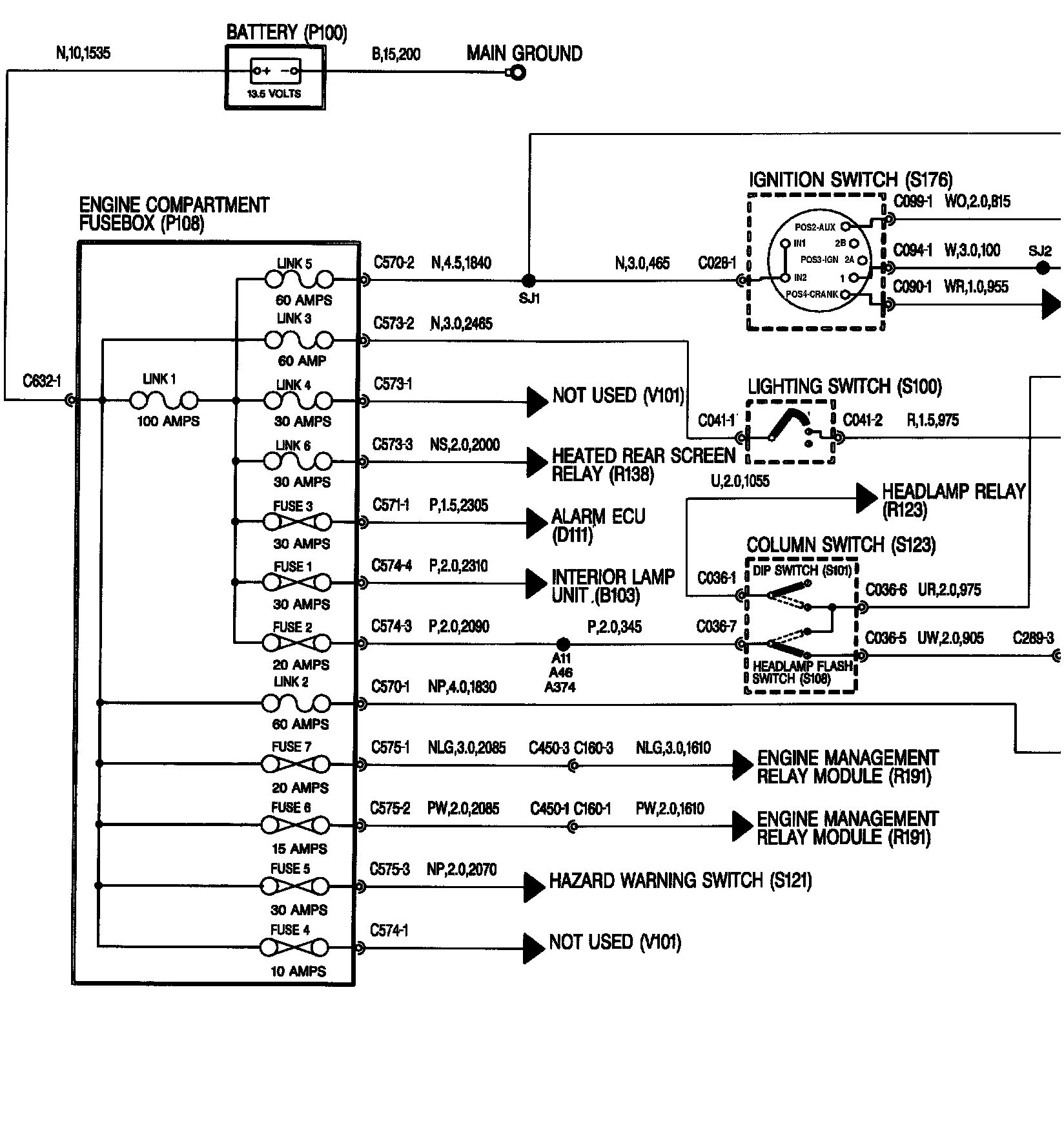

��Power Distribution: Fuseboxes:
