Wheel Stud / Lug Nut: Service and Repair

Wheel Stud

Service Repair No - N/A


1. Remove wheel.

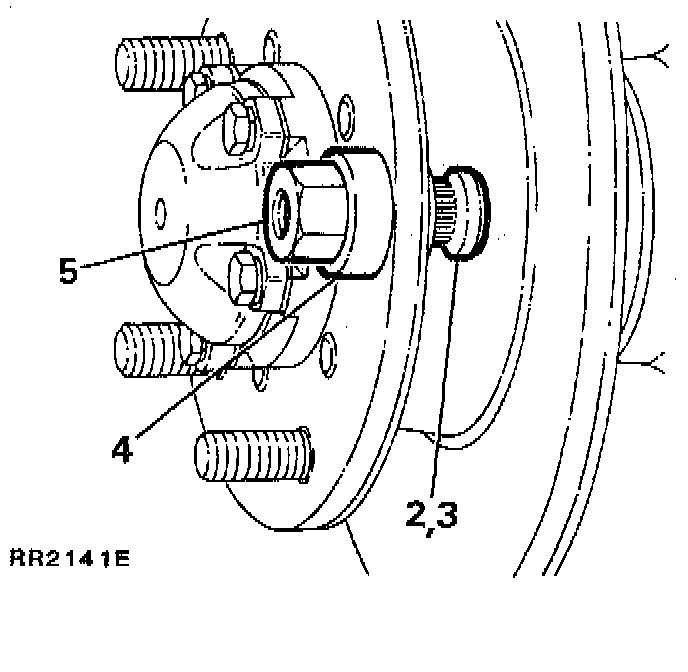

2. Drive stud (2,3) out of driveshaft flange.





3. Position stud (2,3) in flange.
4. Install a suitable spacer (4) over stud.
5. Using a M16 x 1.5 nut (5), a slave wheel nut is suitable, pull stud into flange until shoulder of stud abuts flange.
6. Install wheel.
