Land Rover
>>
1994
>>
Defender 90 (LD) V8-3.9L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Drive Axles, Bearings and Joints
>>
System Diagram
>>
Rear
Rear

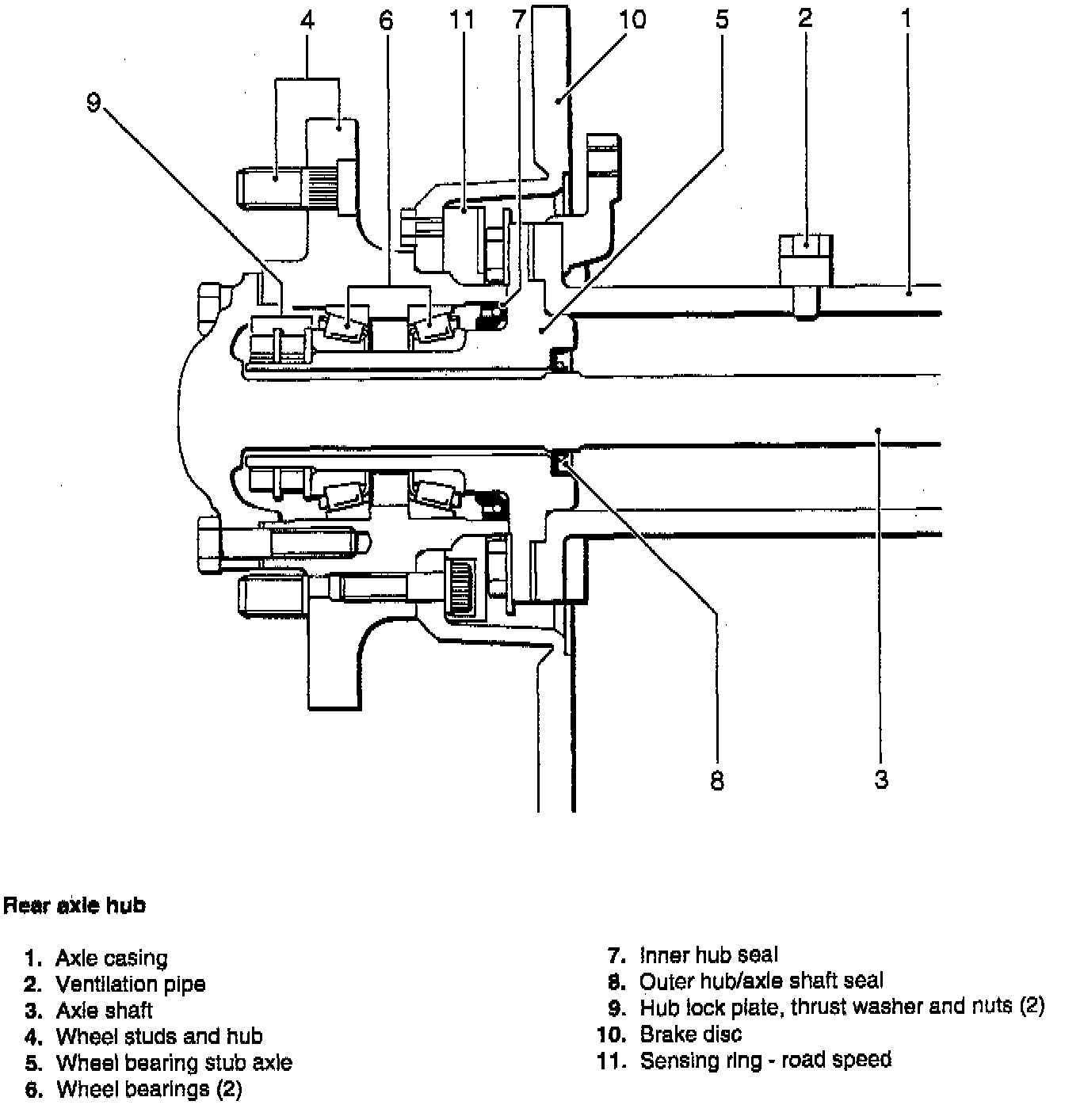

Cutaway View, Rear:
