Rear Headlining - Hard Top

Rear Headlining - Hard Top

Service Repair No - 76.64.11

Remove
1. Remove rear end trim panel.
2. Remove side trim panels.
3. Remove rear grab handles.
4. Remove rear end lining.
5. Remove rear interior lamp.
6. Remove interior roll-over bar.

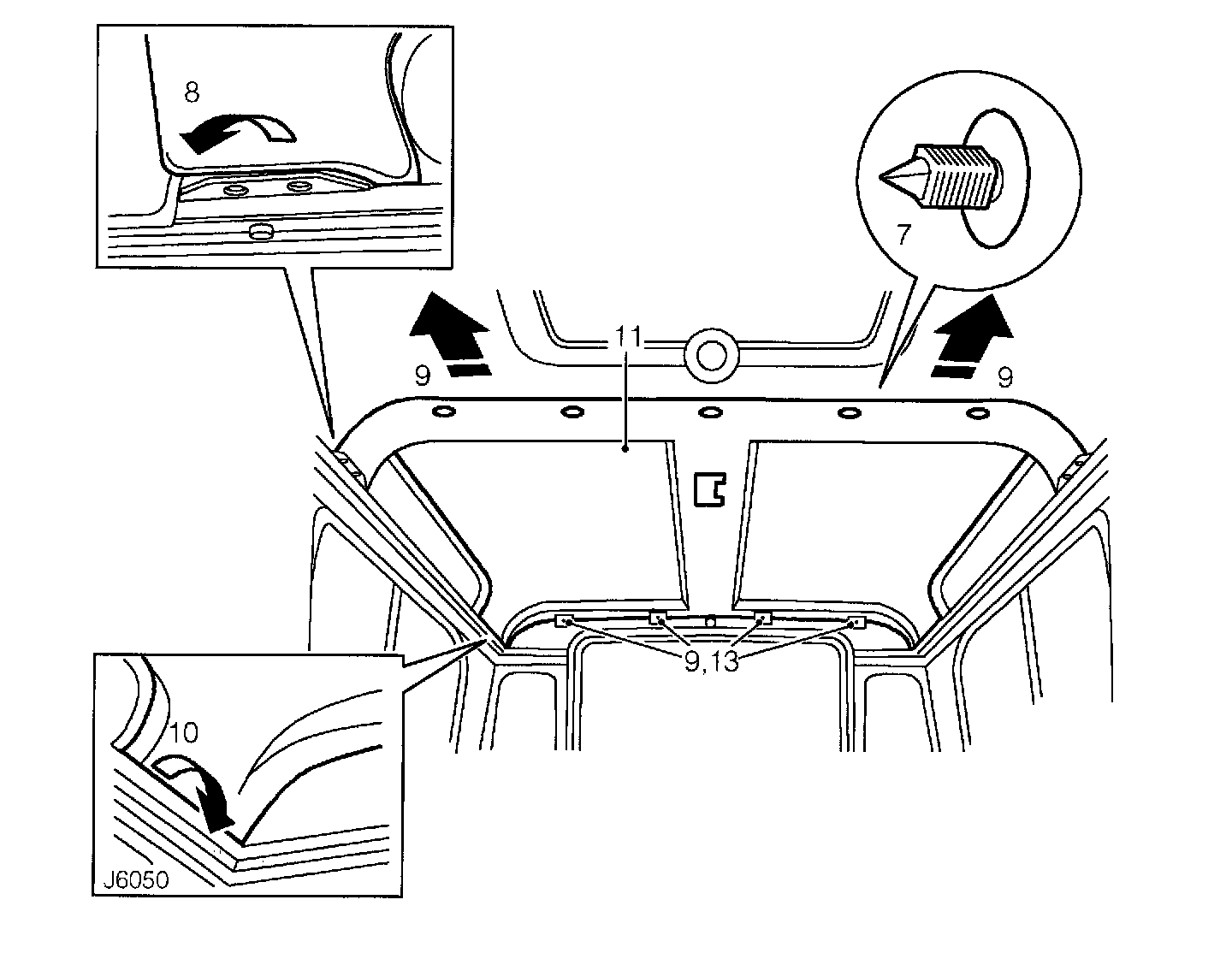

7. Carefully prise out 7 trim studs securing rear and front headlining to roof mounting brackets.
8. Release front corners of headlining from cantrail, on both sides.
9. Pull headlining forwards sufficiently to clear rear end lining mounting brackets.
10. Release rear corners of headlining from cantrail, on both sides.
11. Lower rear headlining from roof and remove from vehicle.

NOTE: Take care not to bend headlining on removal and refitting.


Refit
12. With assistance, position rear headlining to root and locate rear corners in cant rail.
13. Push headlining rearwards and position over rear end lining mounting brackets.
14. Locate front corners of headlining in cant rail.
15. Position front edge of rear headlining over front headlining and secure with trim studs.
16. Adjust rear headlining to achieve good fit at all corners.
17. Fit rear interior lamp.
18. Fit interior roll-over bar.
19. Fit rear end lining.
20. Fit rear grab handles.
21. Fit side trim panels.
22. Fit rear end trim panels.
