Front Headlining - Hard Top

Front Headlining - Hard Top

Service Repair No - 76.64.10

Remove

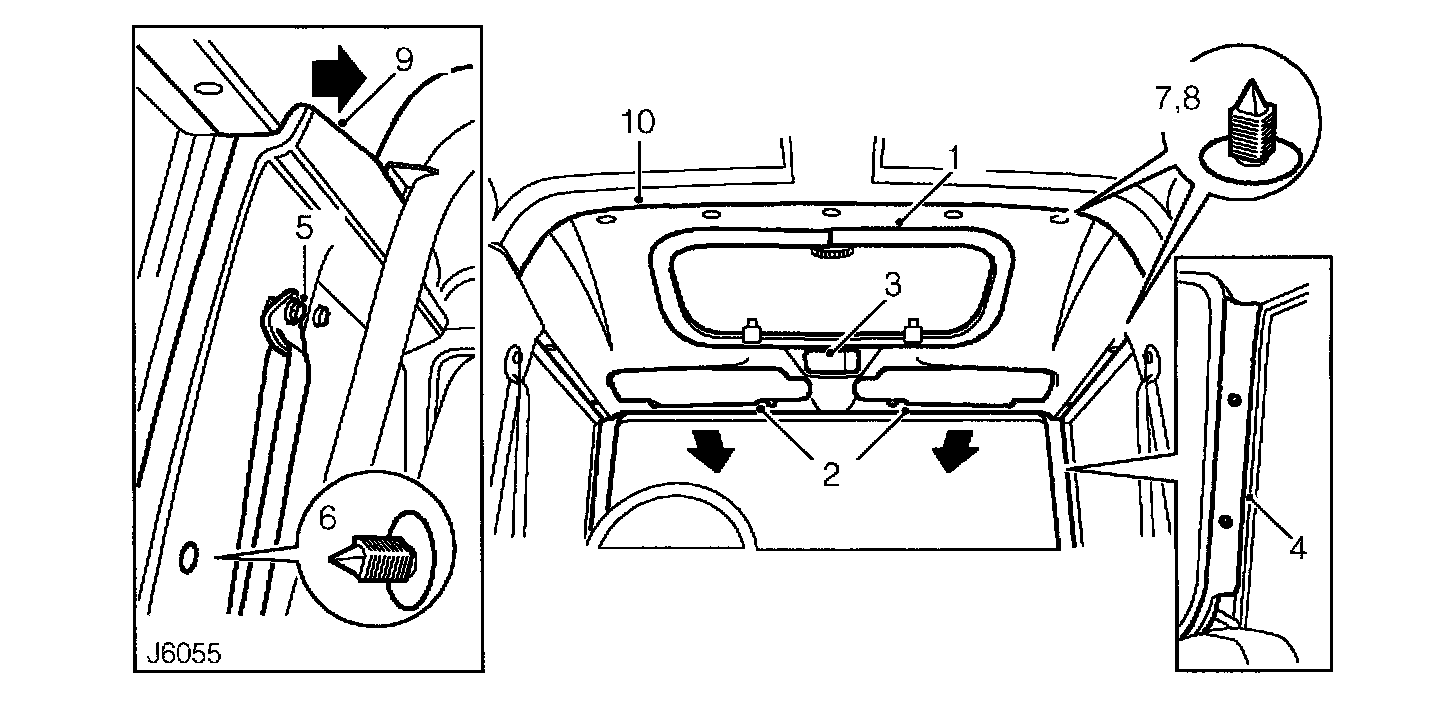

1. Remove sun roof headlining finisher.
2. Remove sun visors.
3. Remove interior lamp.
4. Remove 4 retaining screws and detach both 'A' post trims.
5. Remove caps and unscrew front seat belt fixing bolts from 'B/C' posts.
6. Carefully prise side trim panel cap fastener from 'B/C' posts.
7. Carefully prise 2 cap fasteners, from each side, securing headlining to body at door apertures.
8. Carefully prise out 7 cap fasteners securing front and rear headlinings to roof.
9. From both sides, pull side trim panel inwards enough to release rear corners of front headlining.
10. Lower headlining, disconnect interior lamp harness plug at 'A' post, and remove headlining from vehicle.

NOTE: Take care not to bend the headlining on removal and refluing.

11. Do not carry out further dismantling it component is removed (or access only.
12. Remove interior lamp harness from headlining.


Refit
13. Tape interior lamp harness to headlining.
14. With assistance, raise headlining to roof.
15. Carefully pull side trim panel inwards, on both sides, and slide headlining behind trim panel.
16. Position front headlining into recess of rear headlining and secure both to roof mounting brackets with cap fasteners.
17. Secure both sides of front headlining to body at door apertures with cap fasteners.
18. Fit side cap fasteners at 'B/C' posts.
19. Secure seal belts to 'B/C' posts and tighten bolts to 32 Nm, 24 lbf ft. Fit caps to bolts.
20. Fit 'A' post trims.
21. Fit interior lamp.
22. Fit sun visors.
23. Fit sun roof headlining finisher.
