Windshield Washer Reservoir: Service and Repair

Washer Reservoir

Service Repair No - 84.10.03

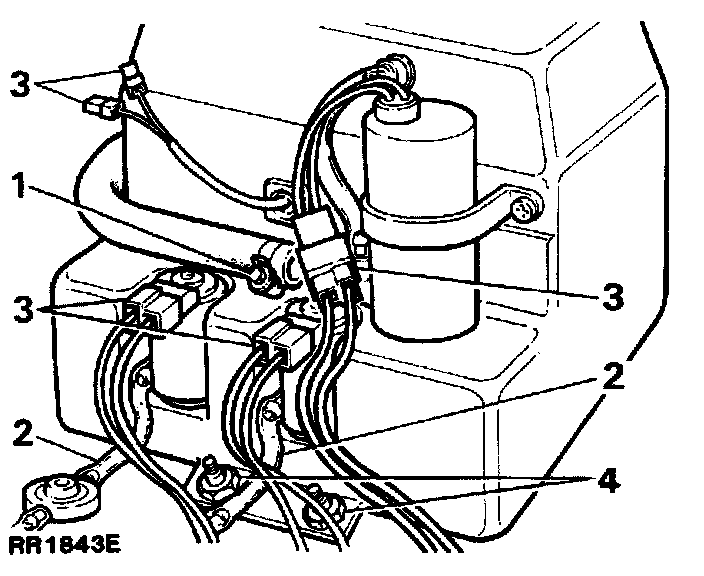

Remove
1. Loosen hose clamp and remove power wash hose.
2. Disconnect tubing from washer pumps.
3. Disconnect electrical leads from pumps and low level warning unit.
4. Remove 3 bolts and withdraw reservoir.

Refit
1. Reverse procedure to install.
