Tailgate Glass Wiper Motor

Tailgate Glass Wiper Motor

Service Repair No - 84.35.12

Remove
1. Disconnect the battery negative cable.
2. Lower headlining rear section to access wiper motor assembly.
3. Remove wiper arm and blade.

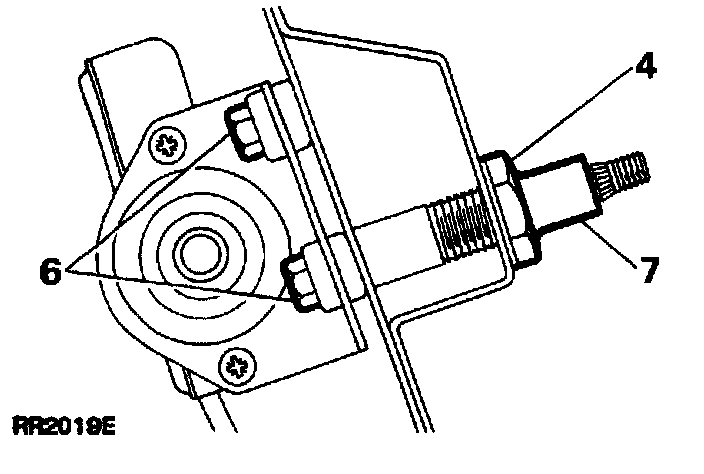

4. Loosen nut securing wiper motor to body. DO NOT REMOVE AT THIS STAGE.

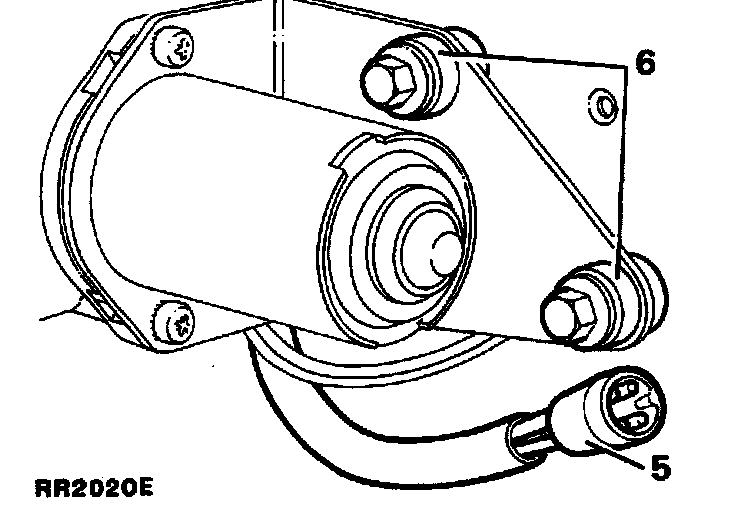

5. Disconnect electrical leads at multi-plug.
6. Remove two bolts securing wiper motor to inner body.
7. Support wiper motor remove nut lossened in step 4, complete with protective cover, washer and seal. Simultaneously withdraw wiper motor.

Refit
1. Reverse procedure to install.
