Sway Bar Bushing - Installation
Bulletin: P93/51-002Section: Product
Date: 12/2/93
Model: Range Rover/Defender
Applicable to: USA/CND
Subject:
SWAY BAR BUSHING INSTALLATION

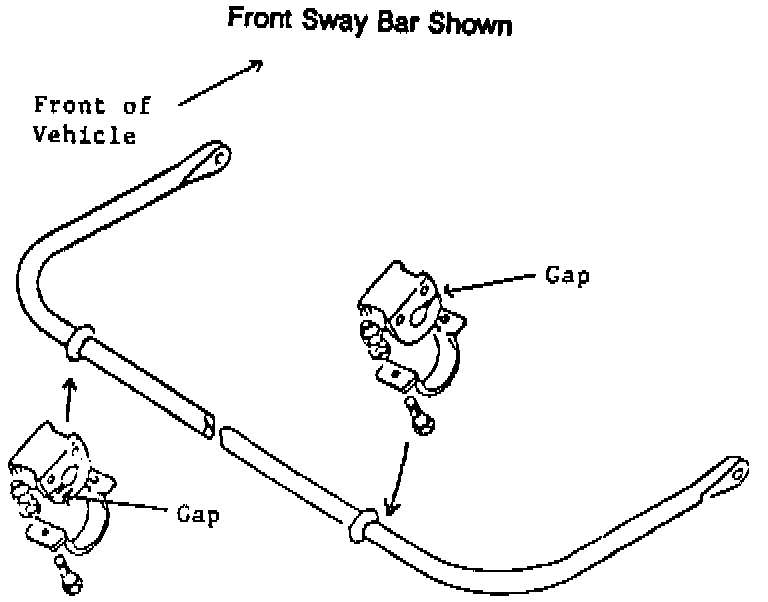

During installation of the sway bar it is important that the sway bar to chassis bushings are correctly fitted. Front sway bar bushings have a pre-molded external taper, the largest diameter is designed to face outwards to the side of the vehicle, and each bushing should be installed as follows:
Front Left Hand Bushing: Gap opening in bushing faces to the rear of the vehicle.
Front Right Hand Bushing: Gap opening in bushing faces to the front of the vehicle.
Rear Sway Bar Bushings: It is important that both gap openings on the bushings face to the front of the vehicle.
NOTE:
The front and rear bushings are NOT interchangeable with each other.
PARTS INFORMATION
Range Rover and Defender: Front Sway Bar Bushing - NTC6828
Range Rover: Rear Sway Bar Bushing - NTC7394
Defender: Rear Sway Bar Bushing - NRC5674
ACTION REQUIRED
For information only, no action required.
