Fuel Gauge Sending Unit - Diagnosis
Bulletin: P93/86-W2Section: Product
Date: 2/2/93
Model: Range Rover
Applicable to: USA/CND
Subject:
FUEL GAUGE SENDING UNIT
The flow chart, specifications and illustration should be used when addressing complaints of incorrect fuel gauge and/or low fuel light operation. Many pump/sender units which were formerly replaced can now be repaired by following this bulletin.
Affected Vehicles
1991-1993 Range Rover (except GDE)

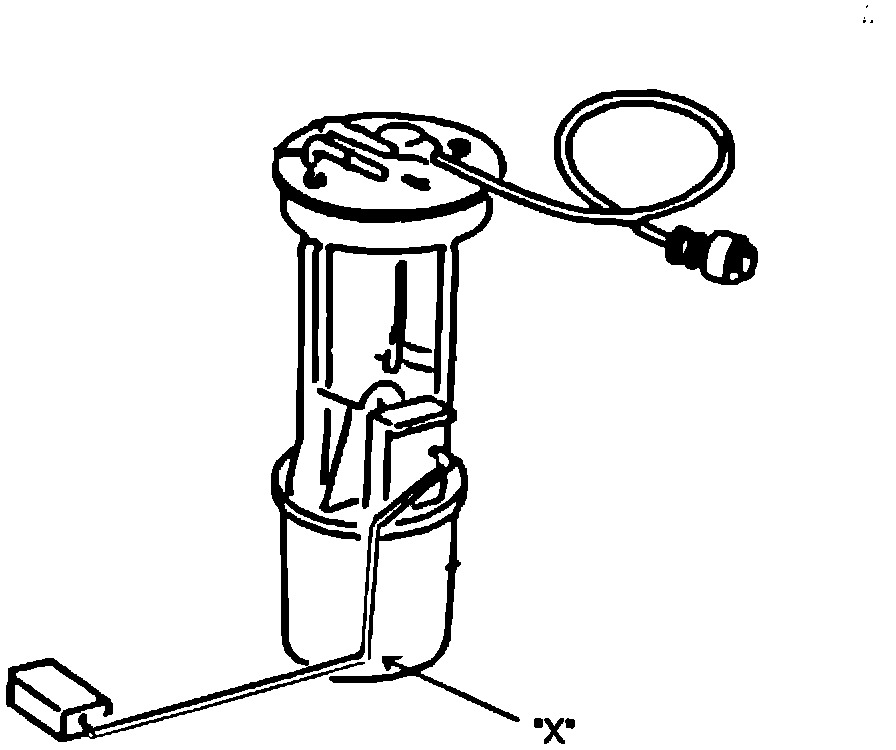

Illustration

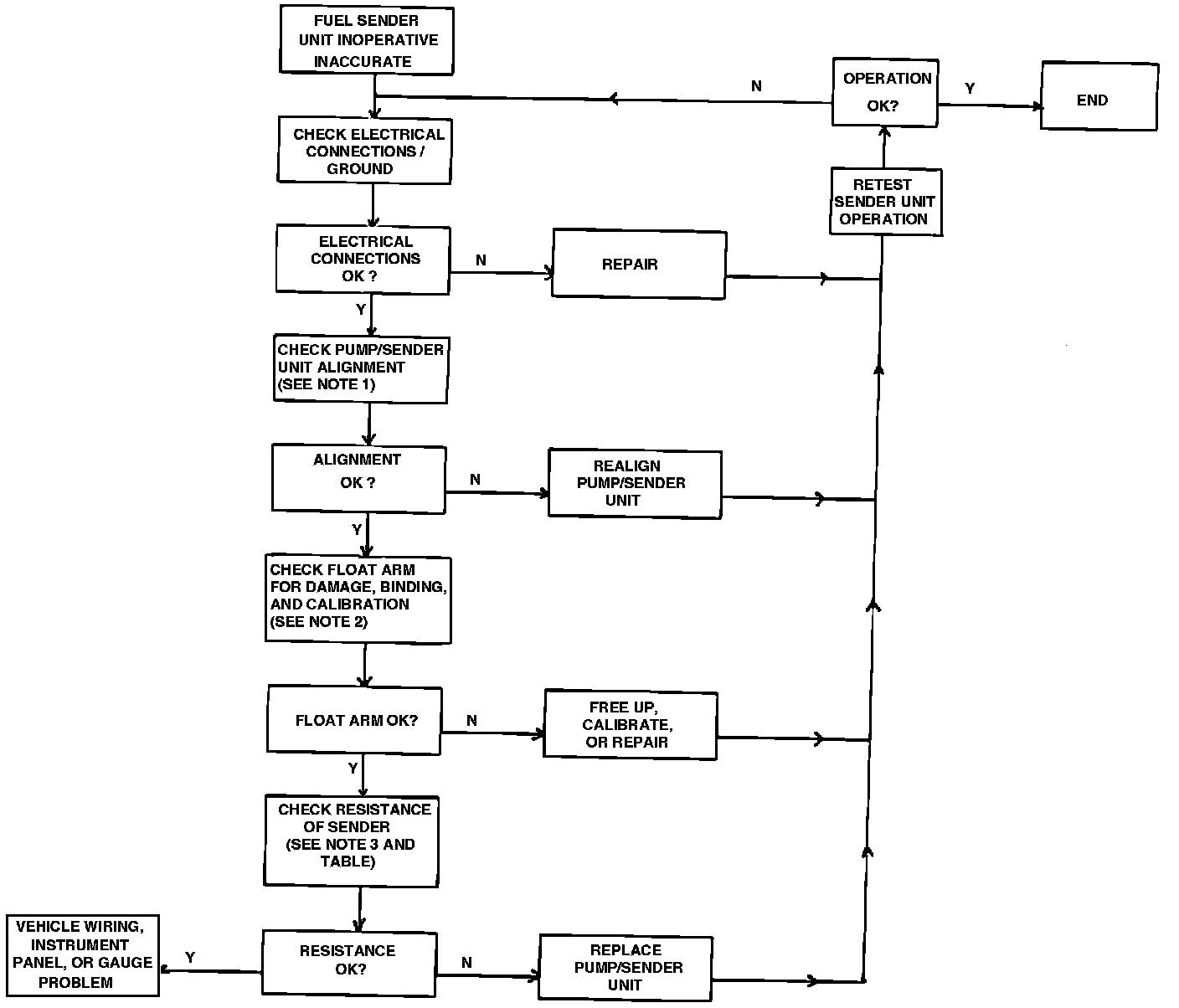

Diagnostic Procedure Use the flow chart if you suspect a fuel sender related problem.
NOTES:
1. The arrow stamped on the top of the fuel pump must align with the arrow cast into the top of the fuel tank. If the pump/sender unit is misaligned even by as little as 2, the float can jam against tank baffles.
2. Make sure that the short plastic portion of the float arm is not jammed next to the lower stop. Place the pump/float unit on a level surface. The float should just touch the same surface without moving the float arm away from the lower stop. If not ok, carefully bend the arm to correct. See illustration. Bend at point "X".

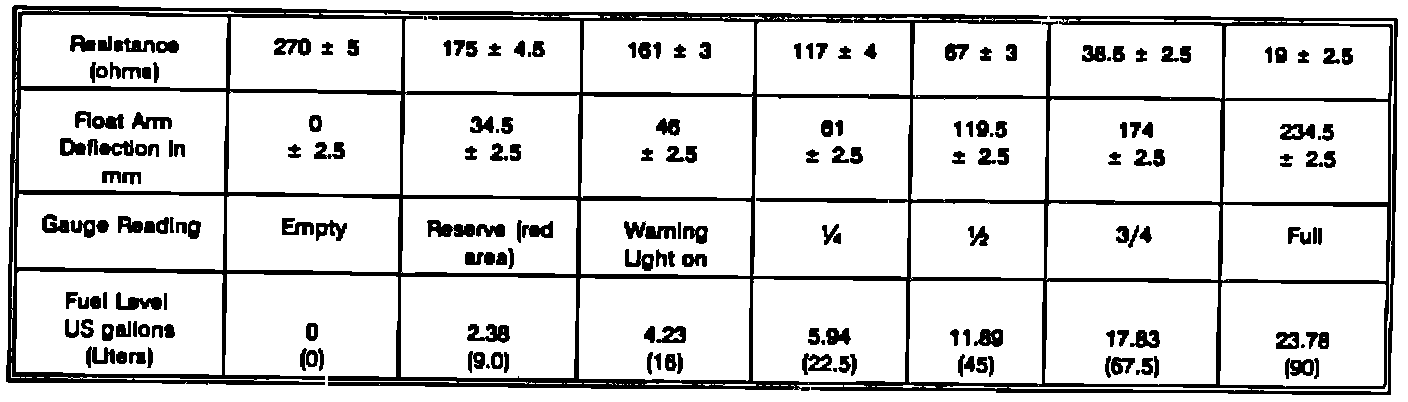

3. Using a digital multi-meter between the green/black and black leads at the plug, measure the resistance at various points and compare with the chart. Any gaps or opens in the resistance curve will cause erratic fuel gauge readings.
Parts Information
Fuel pump/sending units found to be defective should be replaced with Part Number:
PRC9409.
Warranty Information
Submit warranty claims as follows:
Service Type: WW
Repair Code: 7U8U
Labor Operation: 999977 (includes R&R Pump) 1.10 hrs.
