Home >> Land Rover >> 1993 >> Range Rover County LWB (LH) V8-4.2L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Mirrors >> Memory Mirrors

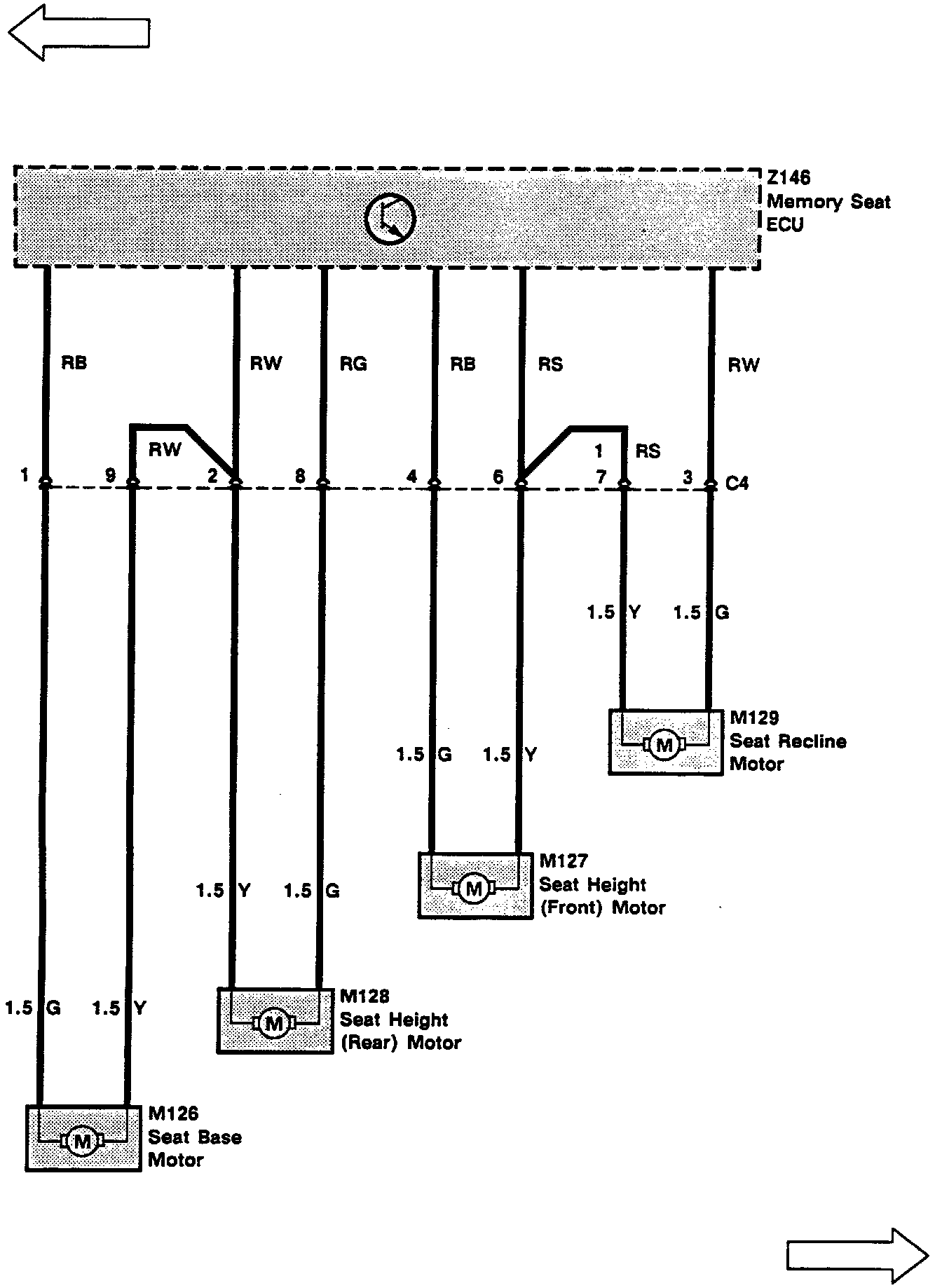

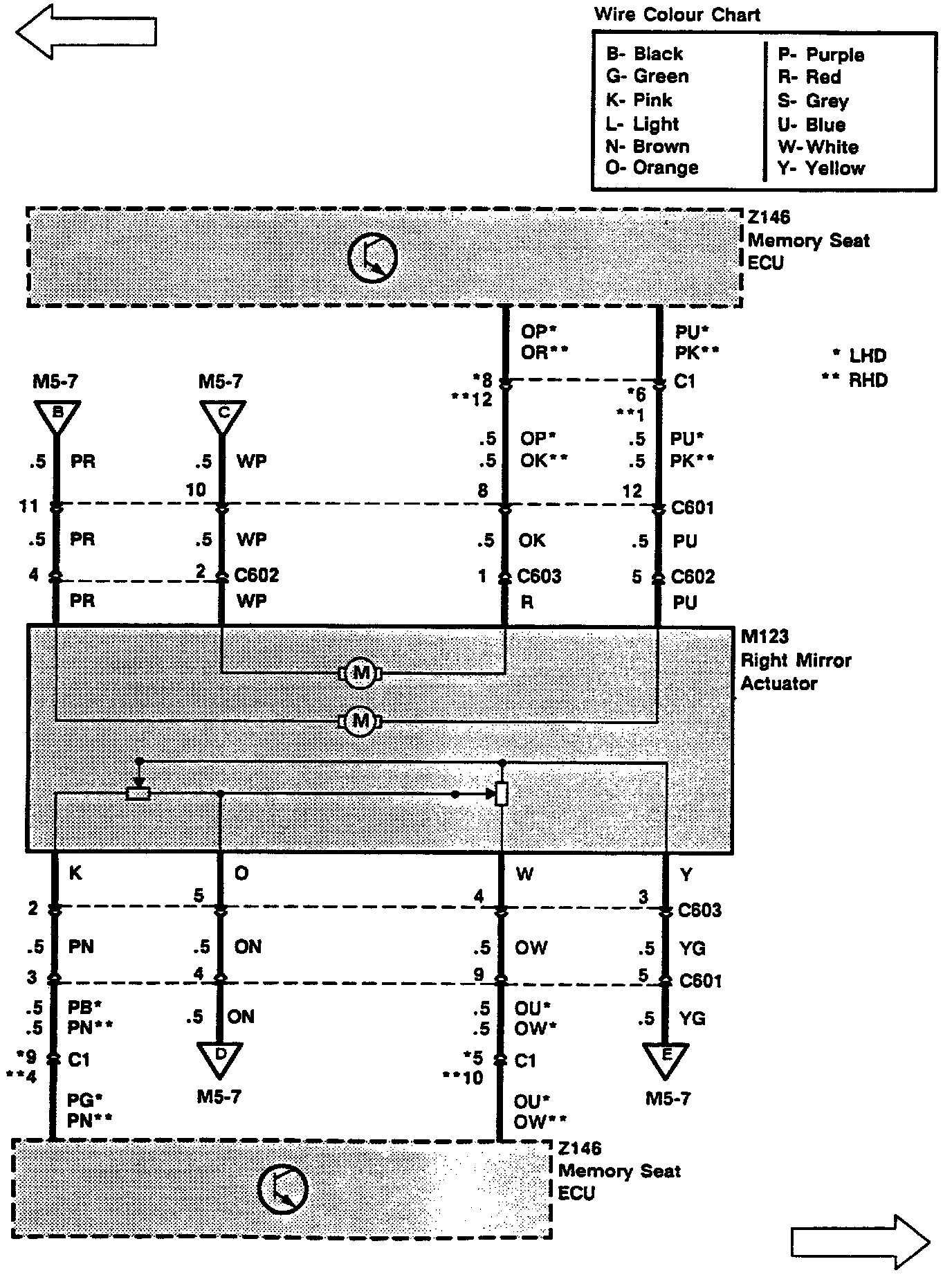

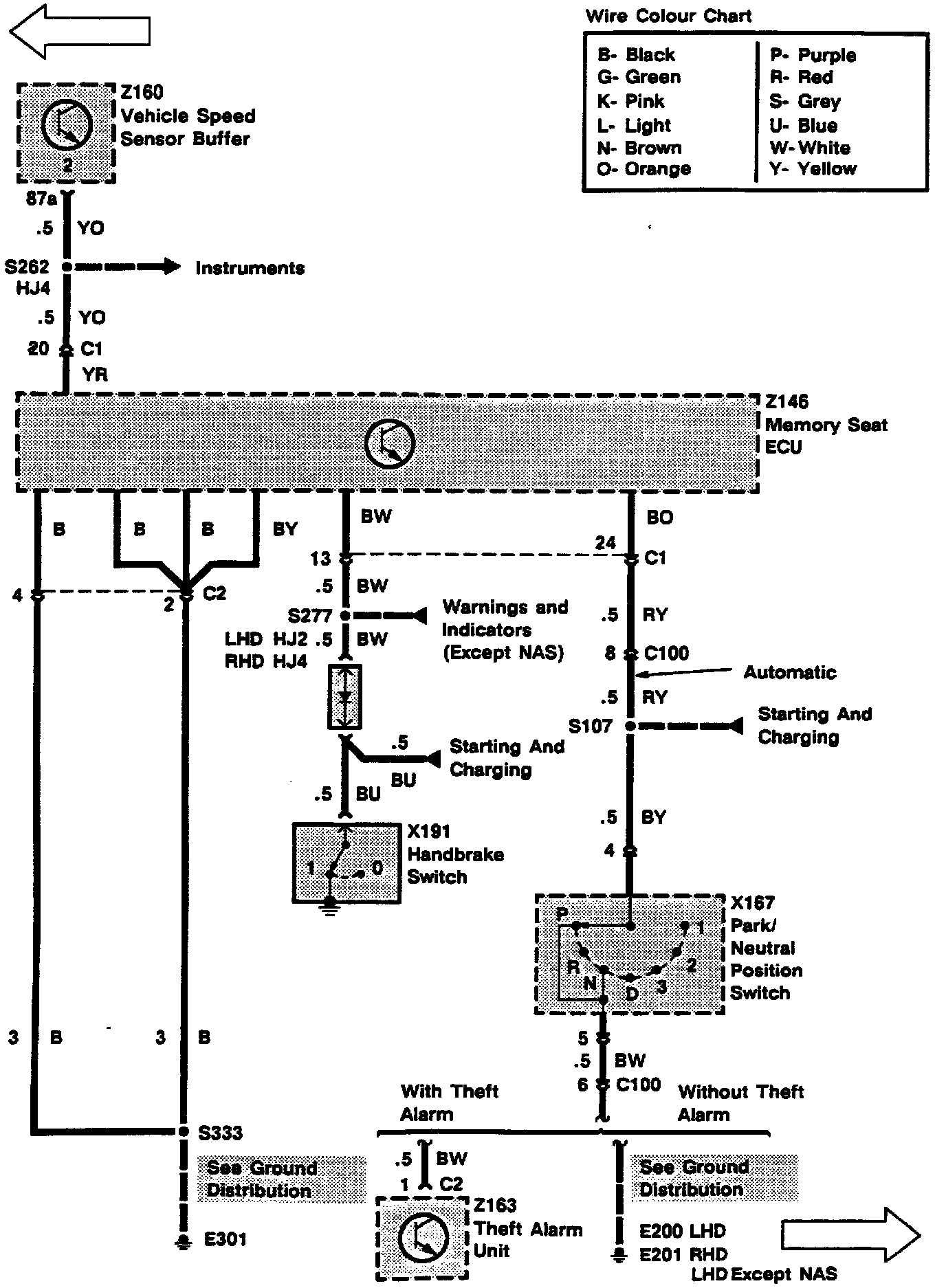

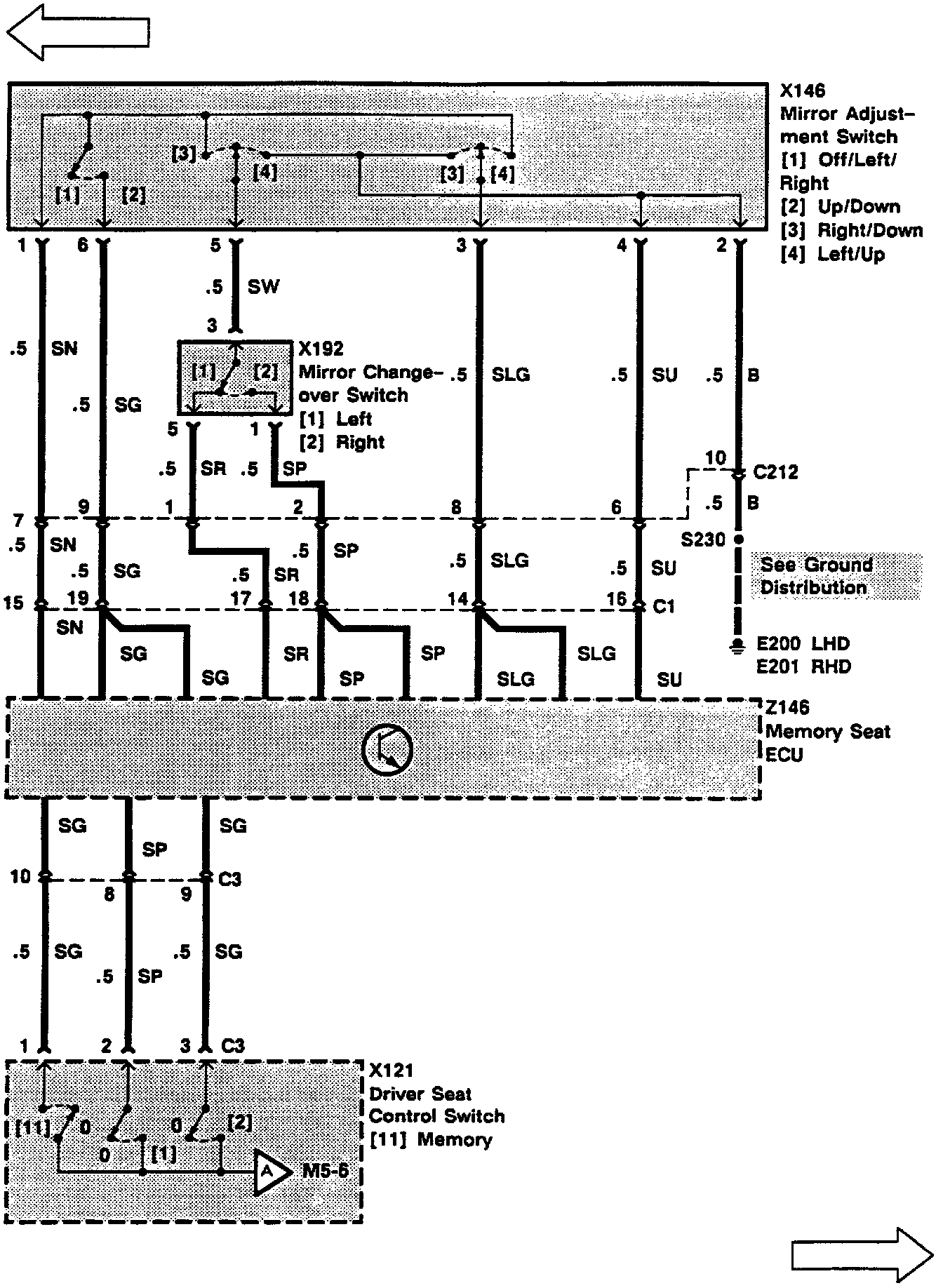

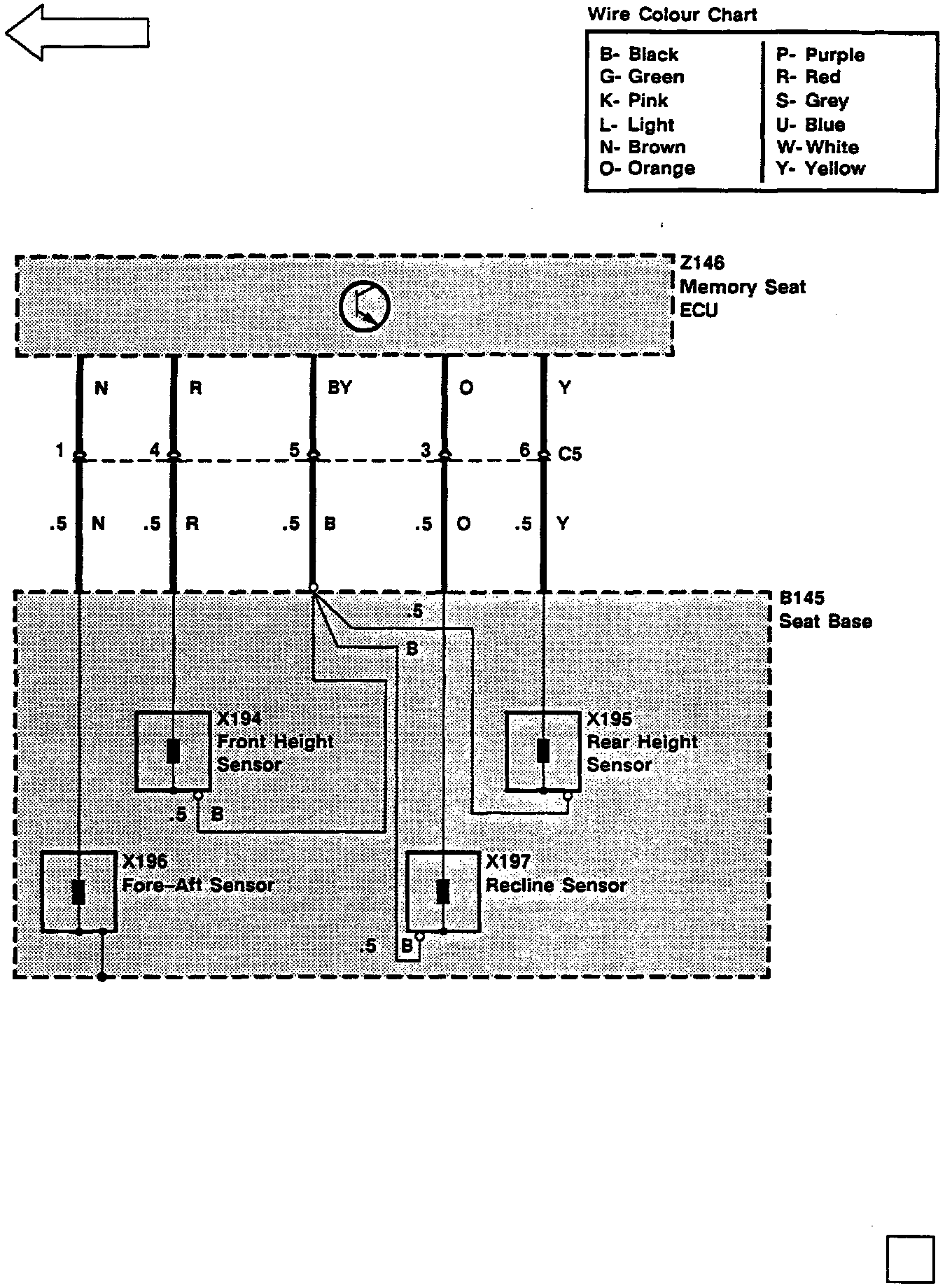

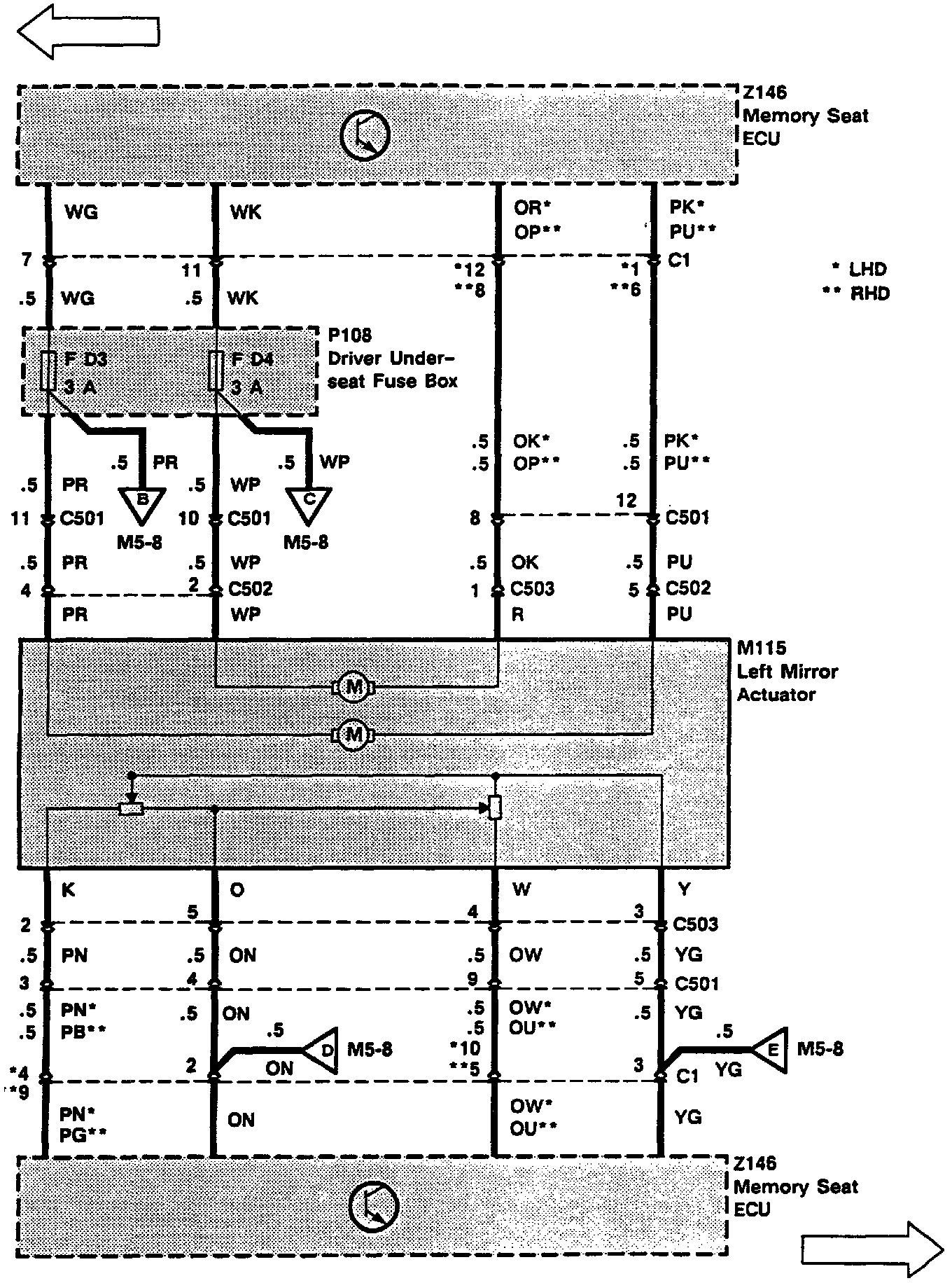

Memory Mirrors

M5-3:




M5-4:




M5-5:




M5-6:




M5-7:




M5-8:




M5-9:




M5-10:
