Rear

REMOVE
1. Disconnect the battery negative lead.
2. Lower or remove the headlining rear section to gain access to the wiper motor assembly.
3. Remove the wiper arm and blade.

Rear Wiper:

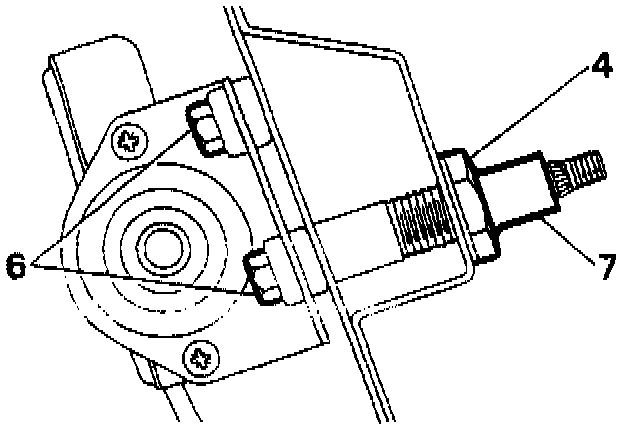

4. Loosen the nut securing the wiper motor to the body. DO NOT remove at this stage.

Rear Wiper Motor:

5. Disconnect the electrical leads at the multi-plug.
6. Remove the two bolts securing the wiper motor to the inner body.
7. Support the wiper motor remove the nut loosened at instruction 4, complete with protective cover, washer and seal. Simultaneously withdraw the wiper motor from the body.

REFIT
1. Reverse instructions 1 to 7, ensuring that the spacer is correctly positioned before fitting the motor.
