Heated Jet Thermostat

THERMOSTAT
The thermostat will operate (close) at 4°C +/- 3°C (39°F +/- 5°F), and re-open at 10°C +/- 3°C (5O°F +/- 5°F).

Remove
1. Disconnect the battery negative lead.
2. Remove the radiator grill.

Washer Jet Thermostat:

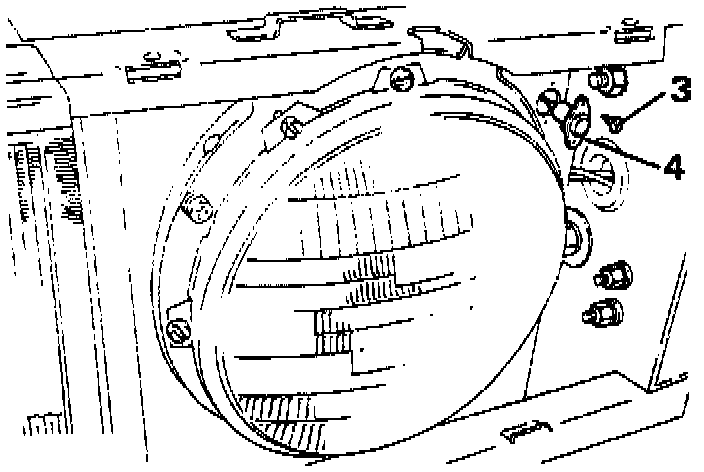

3. Remove two screws securing the thermostat to the right hand headlamp mounting panel.
4. Withdraw the thermostat disconnecting the electrical connector.

Refit
1. Reverse the removal procedure.
