Heated Jet

REMOVE
1. Disconnect the battery negative lead.

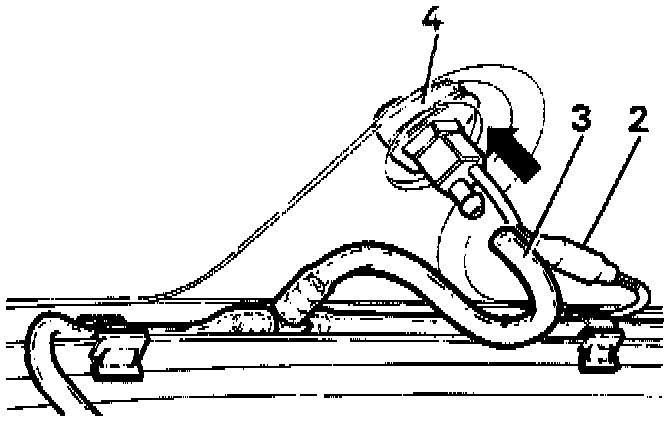

Washer Jet & Tubing:

2. Disconnect the electrical connection at the plug.
3. Withdraw the washer tube from the jet.
4. Push the jet upwards to remove from its mounting.
5. Remove the washer jet mounting from the bonnet if necessary.

REFIT
1. Reverse the removal procedure.
