Headlamp Washer Reservoir: Service and Repair

REMOVE

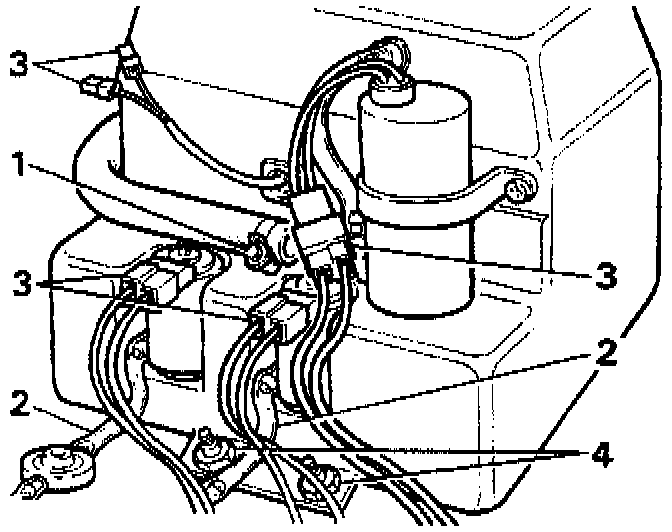

Washer Reservoir:

1. Loosen the hose-clamp and remove the power wash hose.
2. Disconnect the tubing from the washer pumps.
3. Disconnect the electrical leads from the pumps and the low level warning unit.
4. Remove the three securing bolts from below and withdraw the reservoir.

REFIT
1. Reverse instructions 1 to 4.
