Heated Rear Screen

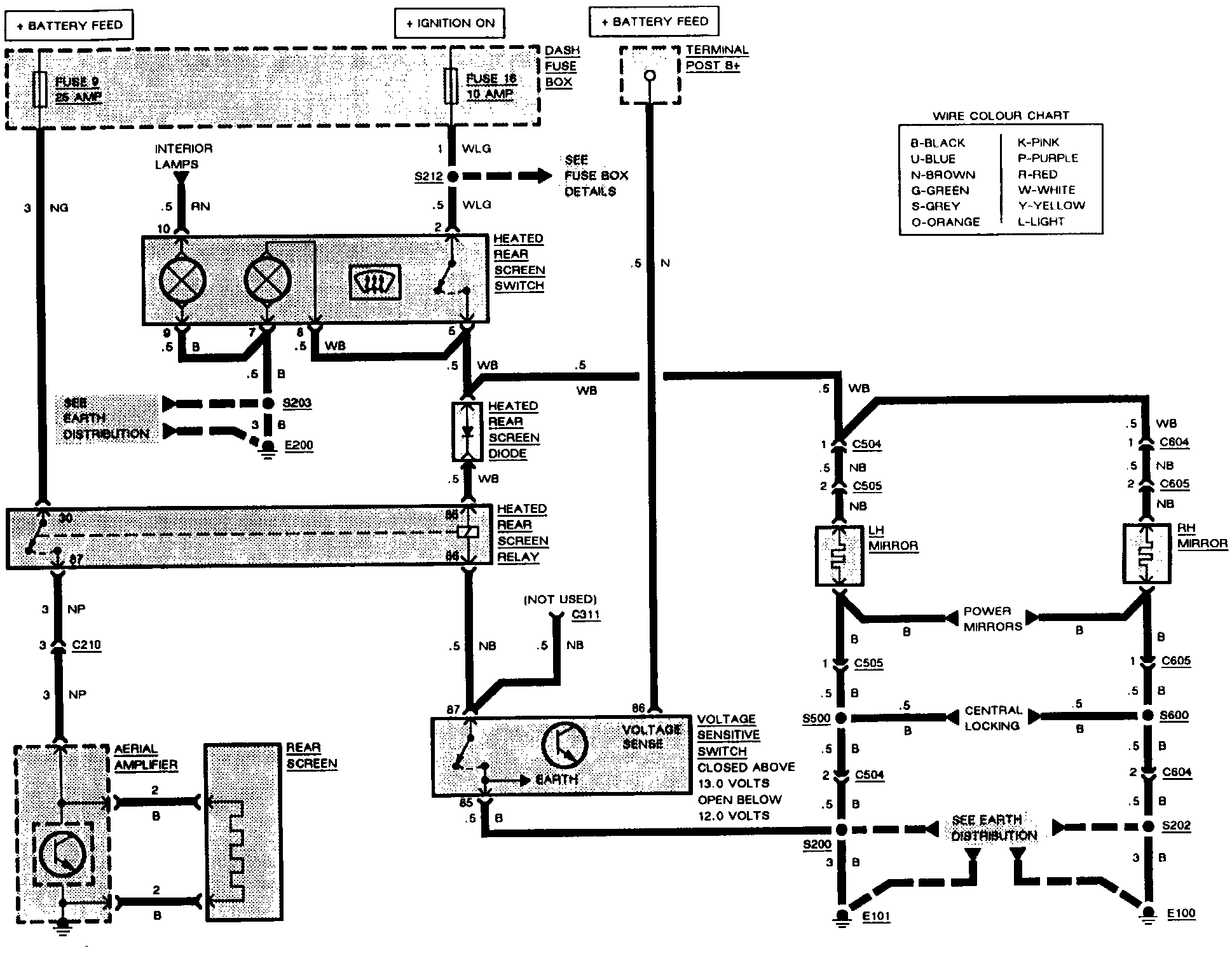

Fig. 70:

Fig. 70

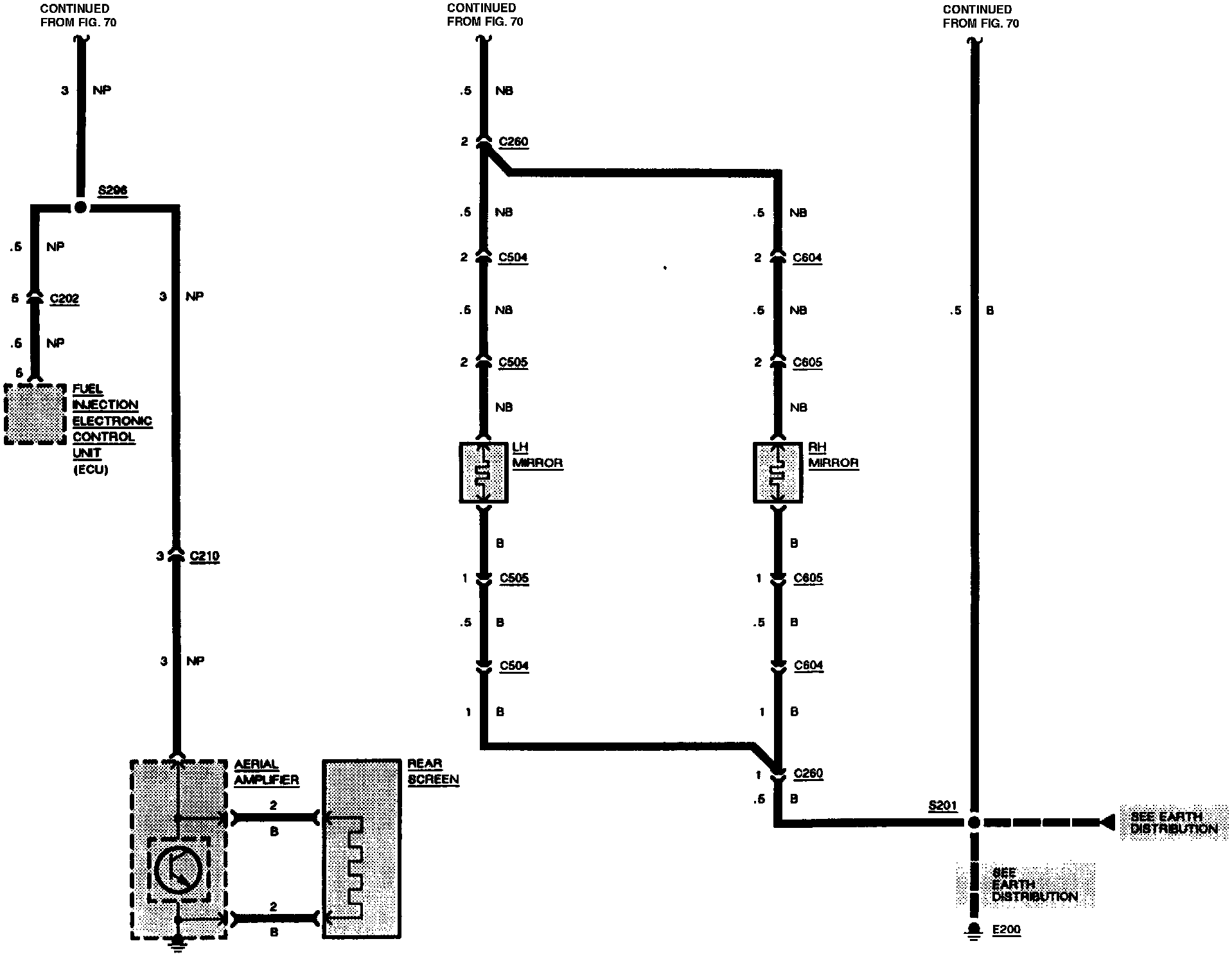

Fig. 71:

Fig. 71

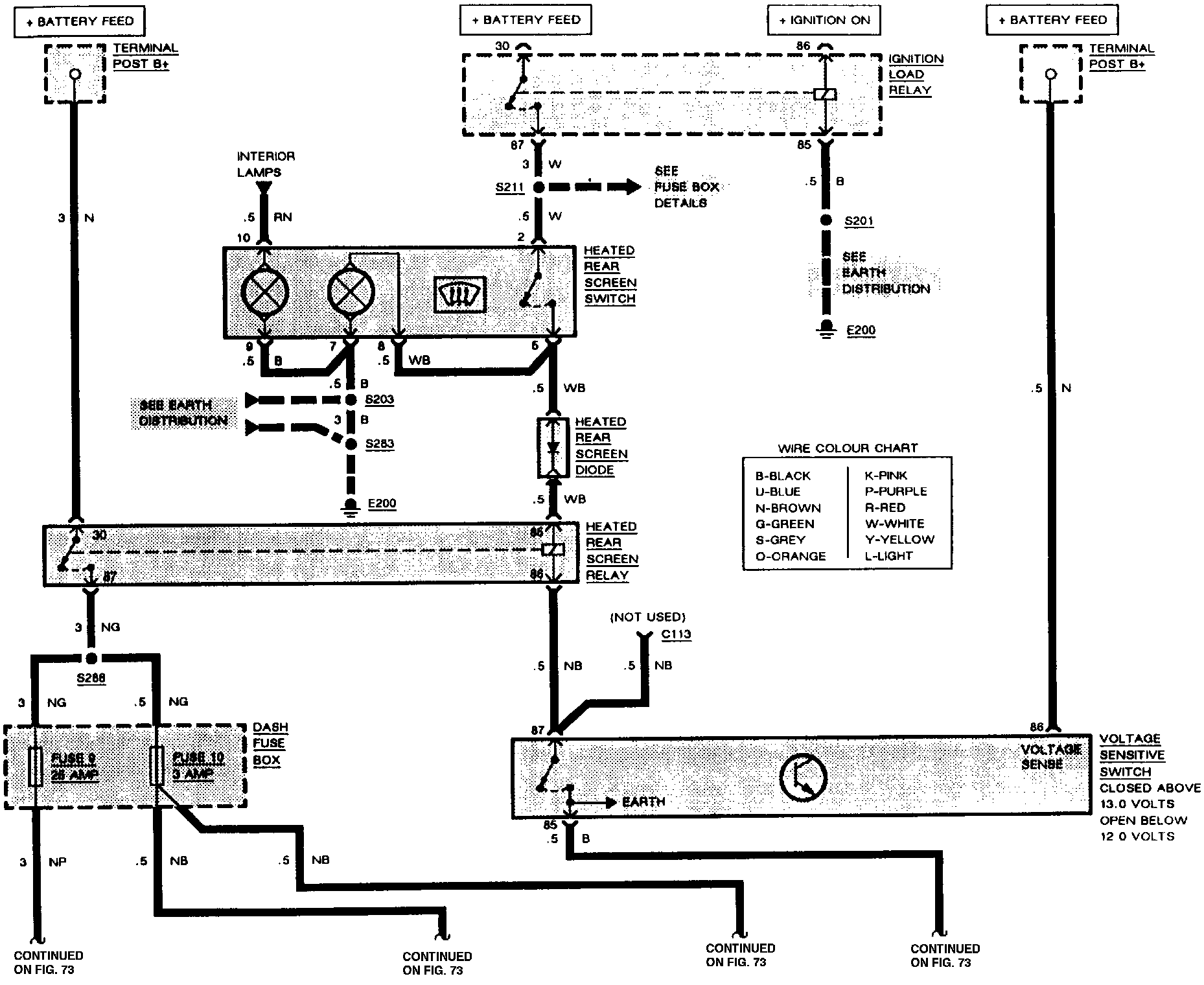

Fig. 72:

Fig. 72

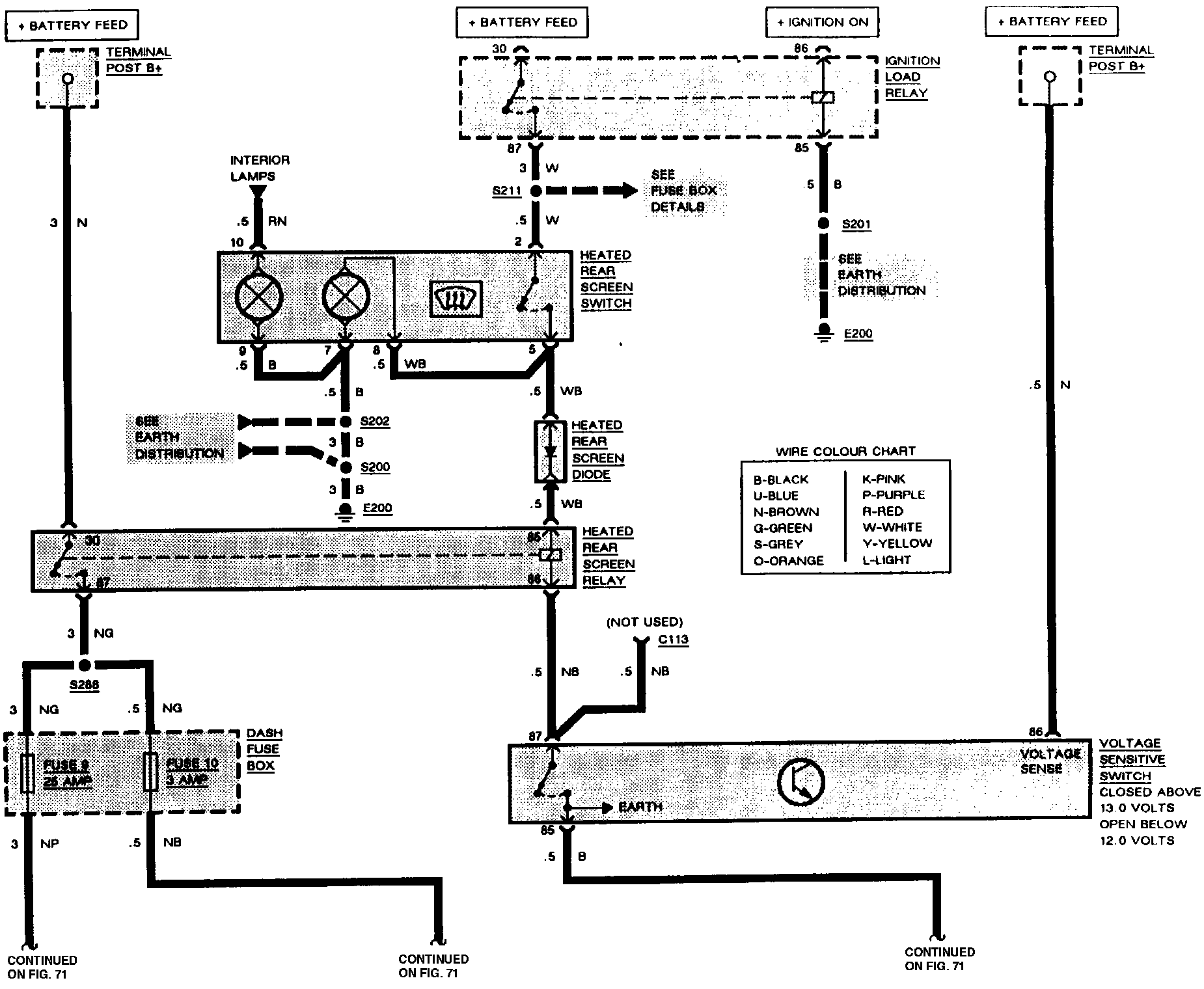

Fig. 73:

Fig. 73

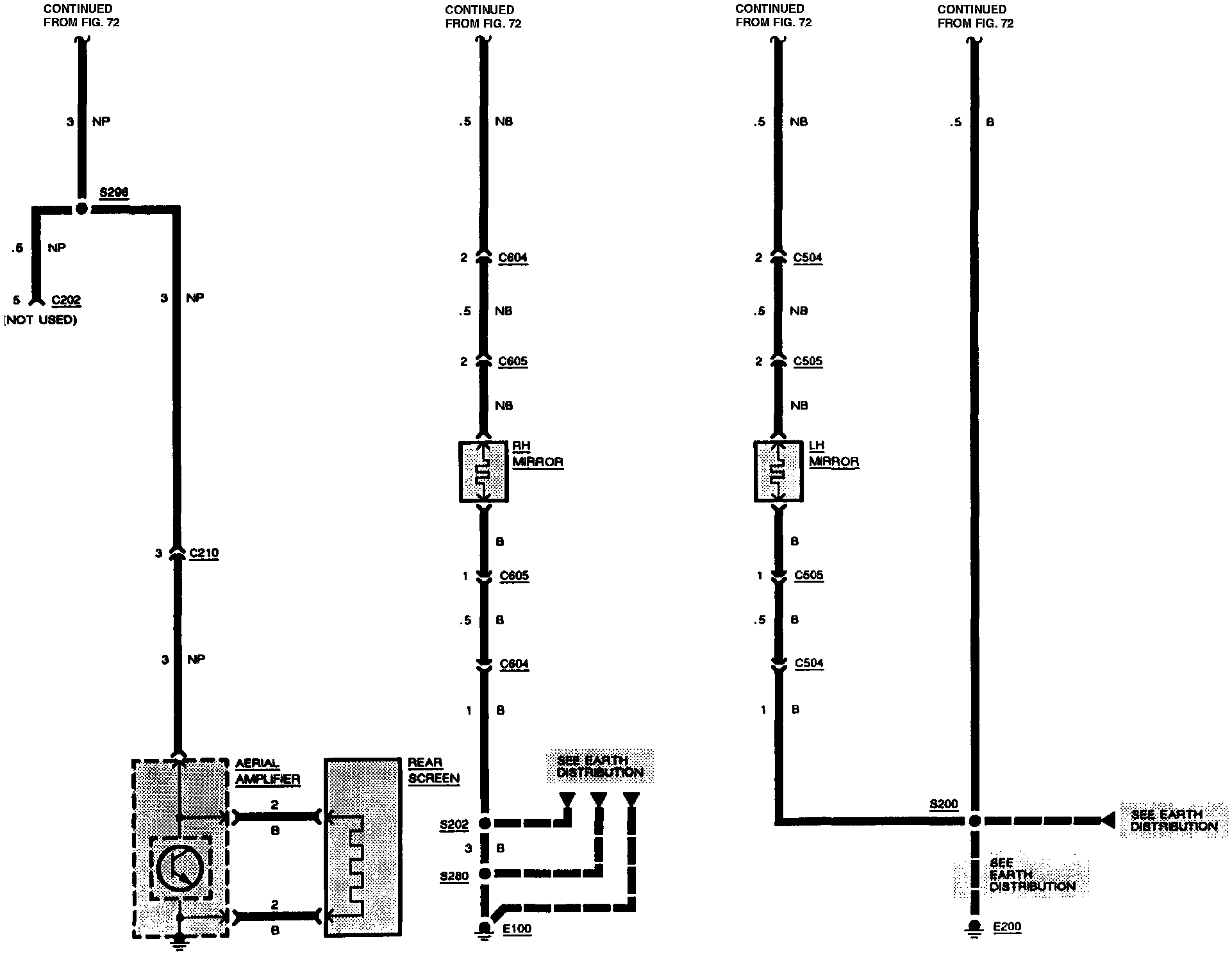

Fig. 74:

Fig. 74

The wiring diagram relates to the heated rear window and is only part of the complete wiring diagram.
