Dismantle, Inspection and Overhaul

Borg Warner Transfer Gearbox

Dismantle, Inspection And Overhaul

Rear cover main case - Dismantle and inspection

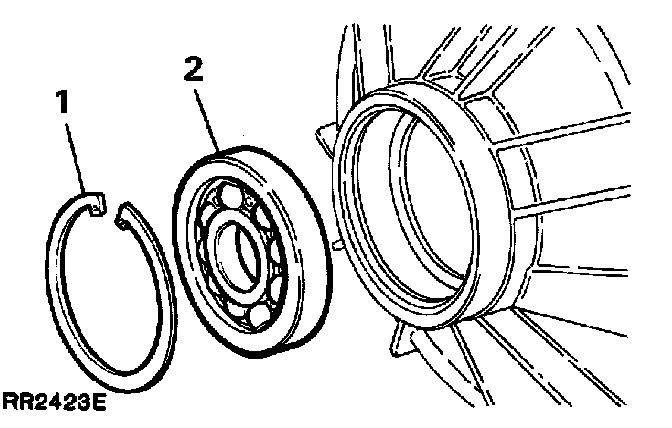

1. Remove the circlip retaining the bearing in the rear cover.
2. Drive or press the bearing from the cover and discard the bearing.







3. Remove any previous sealant evident on the rear cover joint faces.
4. Using a suitable solvent thoroughly clean the cover.
5. Examine the cover for damage, cracks and porosity, renew if necessary.
6. Check the selector lever shaft bore, for ovality and wear. If worn renew the cover.

Rear cover main case - Assemble
7. Drive or press a new bearing into the cover and secure in position with the circlip.
8. Place the cover aside until the gearbox is ready to be assembled.

Front cover main case - Dismantle and inspection

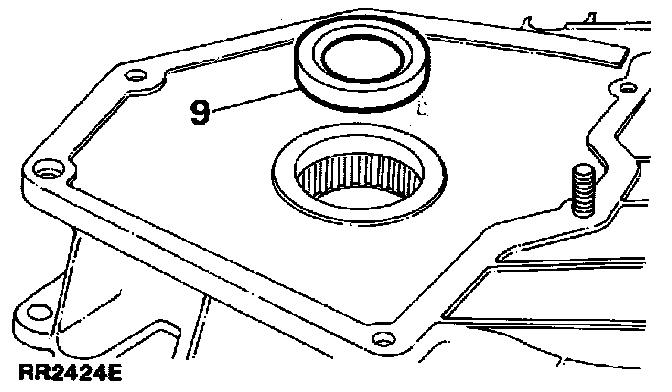

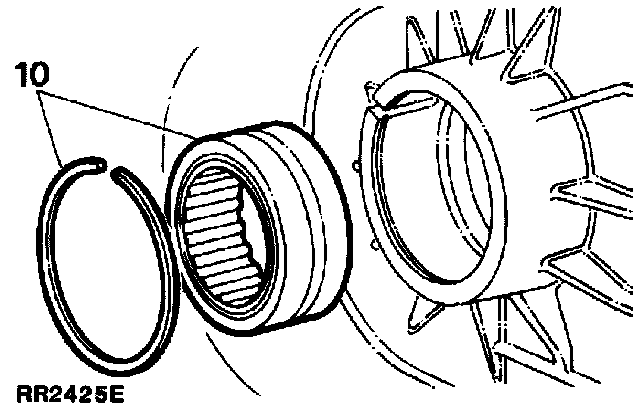

9. Prise the input shaft oil seal from the front cover and discard the oil seal.







10. Remove the snap ring retaining the needle roller bearing, withdraw the bearing and discard.







11. Remove any previous sealant from the joint faces of the front cover.
12. Thoroughly clean the cover using a suitable solvent.
13. Examine the cover for damage, cracks and porosity, renew if necessary.
14. Check the inside edges of the case for witness marks which may indicate a chain that has stretched.

Front cover main case - Assemble

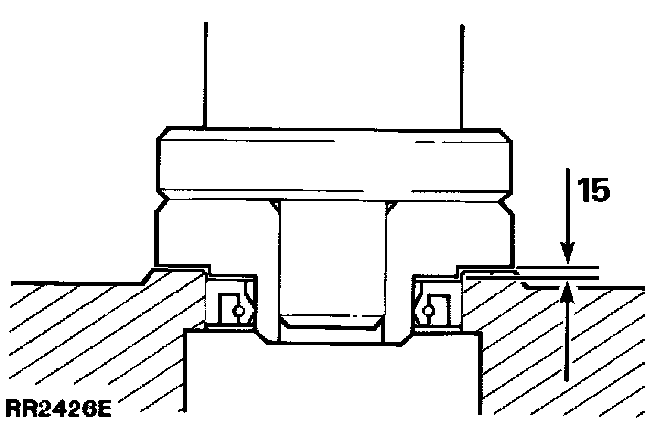

15. Lubricate a new oil seal. Using service tool LST 550 - 6 in conjunction with bearing and oil seal replacer 18G134 fit the seal, open side of the seal leading, until the face of the seal is 1 mm (0.039 in) below the surface of the boss.







16. Lubricate a new needle roller bearing and drive or press the bearing into its recess until contact is made with the shoulder at the bottom of the bore.
17. Fit the snap ring to retain the bearing.
18. Place the cover aside until the gearbox is ready to be assembled.

Planetary set (Epicyclic unit) and oil pump -Dismantle and inspection

NOTE: The Epicyclic unit and oil pump are serviced as a complete assembly, if after inspection either of the units is found to be worn a complete new assembly must be fitted.

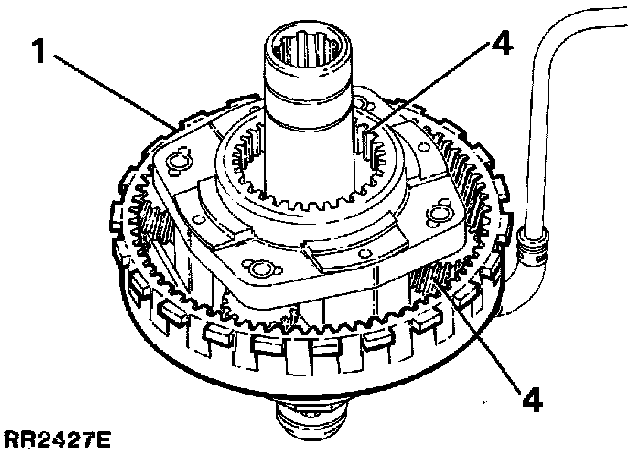

1. Remove the annulus from the planetary set.







2. Thoroughly clean all components using a suitable solvent.
3. Examine the helical teeth of the annulus for wear or damage. If damage is evident it will be necessary to renew both the annulus and planetary set.
4. Examine the planetary gears and high/low gear teeth for wear or damage. If damaged renew both the annulus and planetary set.

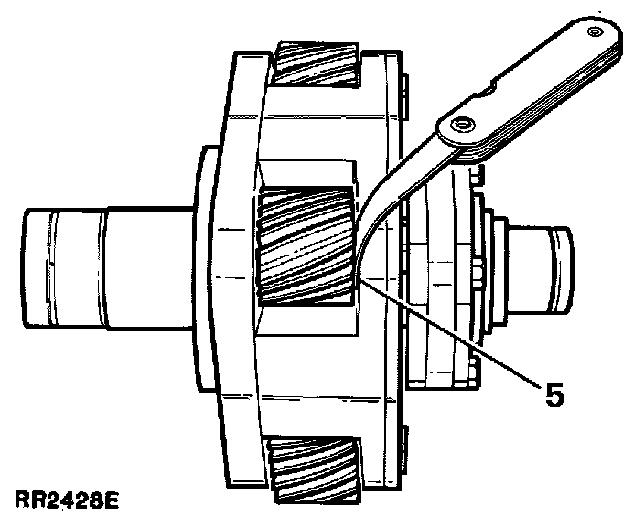

5. Check the end float of the four planet gears, between the end of the gear and planetary set carrier. End float of each planet gear should not exceed 0.83 mm (0.033 in) if any one of the planet gears is out of limits renew the planetary set assembly.

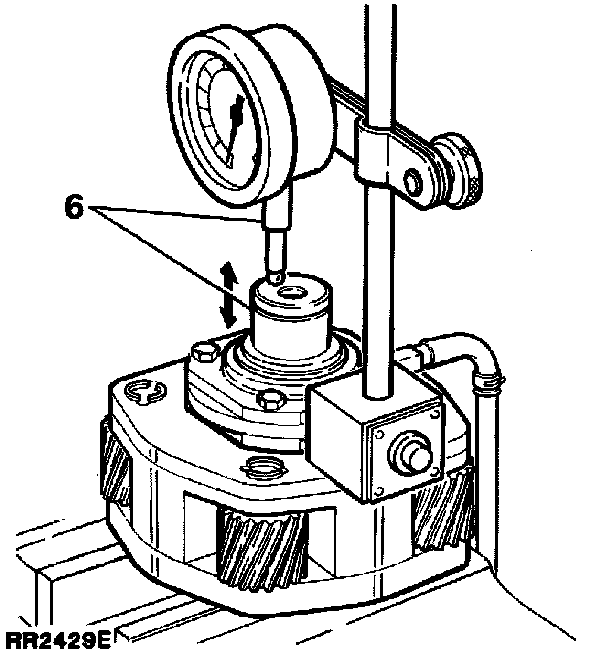

6. Check the end float of the sun gear to the planetary set carrier by supporting the body of the assembly on the top of a vice. Using a dial test indicator attached to a magnetic base, position the base on top of the assembly and zero the indicator on the end of the sun gear shaft, lift the shaft and check the end float. End float should not exceed 0.83 mm (0.033 in). Fit new planetary set assembly if out of limits.







NOTE: If the previous inspection instructions prove the assembly to be in an acceptable condition carry out the following examination of the oil pump.

Oil pump and filter
- Dismantle and inspection

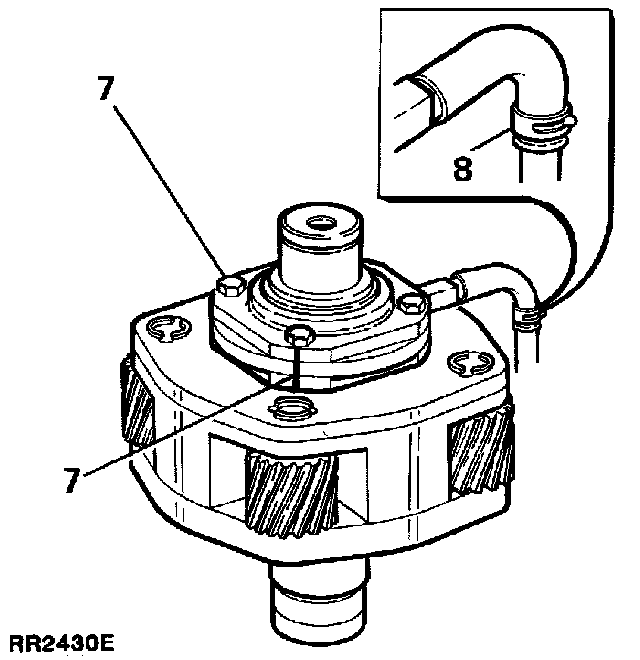

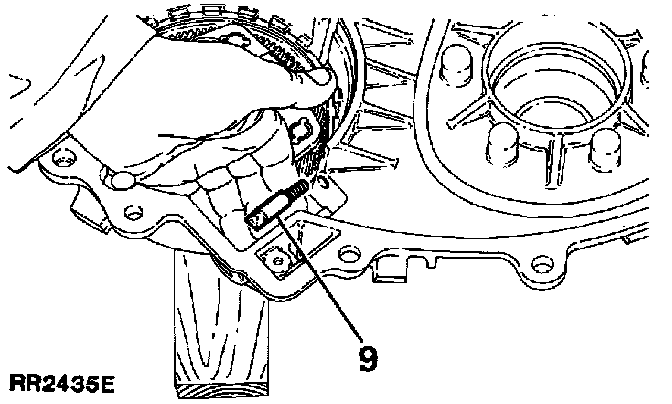

7. To aid re - assembly mark an identification line on the edges of the oil pump plates. Remove the four bolts securing the pump front and rear plates, separate the pump by removing the plungers, spring and bearing plate.

NOTE: The front plate of the oil pump is stamped 'TOP', the centre bearing plate is stamped 'REAR' and the rear plate is stamped 'TOP REAR'. The fixing holes of the plates and body are also offset to ensure correct re - assembly of the pump.

8. Depress the retaining clips, remove the oil pick -up pipe and rubber connection tubes. Examine the tubes and pipe for damage or fractures, renew as necessary.







9. Clean the pump components and check for damage and wear, i.e.: blueing of the pump plungers, scoring of the centre bearing plate, if any wear is evident a new planetary set must be fitted, as the pump is part of the complete assembly.
10. Thoroughly clean the oil pick - up filter, examine the filter screen for damage and blockage, renew or clean the filter as necessary.

Oil pump and filter - Assemble
11. Clean the sealant from the oil pump securing screws.
12. Prior to assembly lubricate the pump components with clean oil.
13. Fit the plate stamped 'TOP' to the sun gear shaft with the word 'TOP' facing the planetary assembly.
14. Fit the plungers and spring noting that the flats on the plungers must be uppermost to enable the 'TOP REAR' plate to be fitted.
15. Compress the plungers and fit the middle bearing plate with the word 'REAR' uppermost. Align the offset fixing holes and also noting the previously marked identification line.
16. Fit the top rear plate with the words 'TOP REAR' uppermost.
17. Apply Loctite 242 to the threads of the four screws and fit the screws, tighten to the specified torque.







18. Fit the rubber connection tube and oil pick - up pipe to the oil pump, fit the retaining clip. Note that the clip securing the tube to the pick - up pipe is positioned in front of the flare on the pipe.







19. Fit the rubber connection tube to the filter end of the pipe, fit the clip ensuring that the tube is clamped by the clip in front of the flare on the pipe.
20. Push the filter into the tube. The radial position of the filter to pipe at this stage is unimportant.

Planetary set and annulus - assemble
21. Lubricate the planetary set and annulus with clean oil.

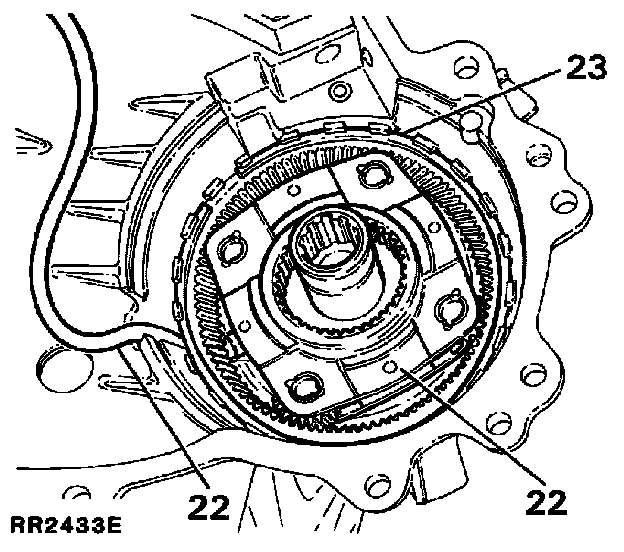

22. Position the annulus around the planetary set, fit the assembly to the rear cover locating the oil pump inlet port in the groove at the bottom of the planetary set housing, the sun gear shaft in the bearing and the lugs on the outer edge of the annulus in the anti - rotation lugs. It may be necessary to tap the sun gear shaft into the bearing to enable the large ring gear snap ring to be fitted.







23. Fit the snap ring with the stepped ends adjacent to the selector shaft bore.
24. Turn the rear cover over and fit the circlip to retain the sun gear shaft.
25. Remove any previous sealant from the end cap. Apply Dow Corning 732 silicon sealant or a suitable equivalent to the outside diameter of the rear cover, evenly tap the cap into position.

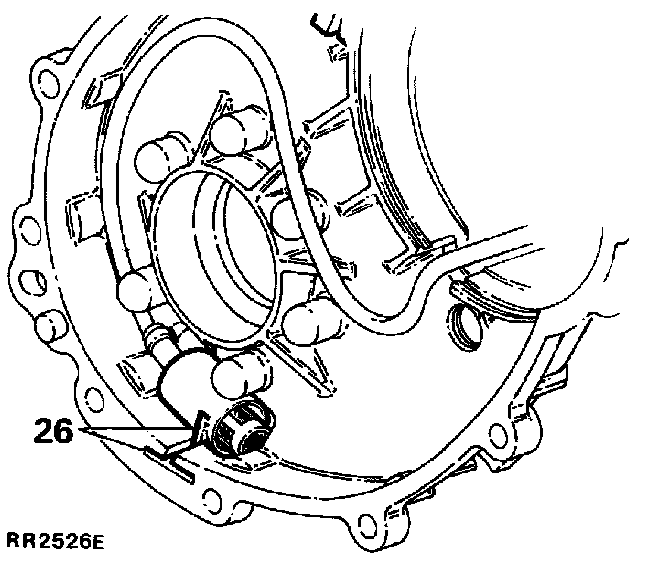

26. If necessary re - position the filter on the oil pick - up pipe until the lug on the filter can be pushed into the slot in the rear cover.







Selector fork
- Dismantle and inspection

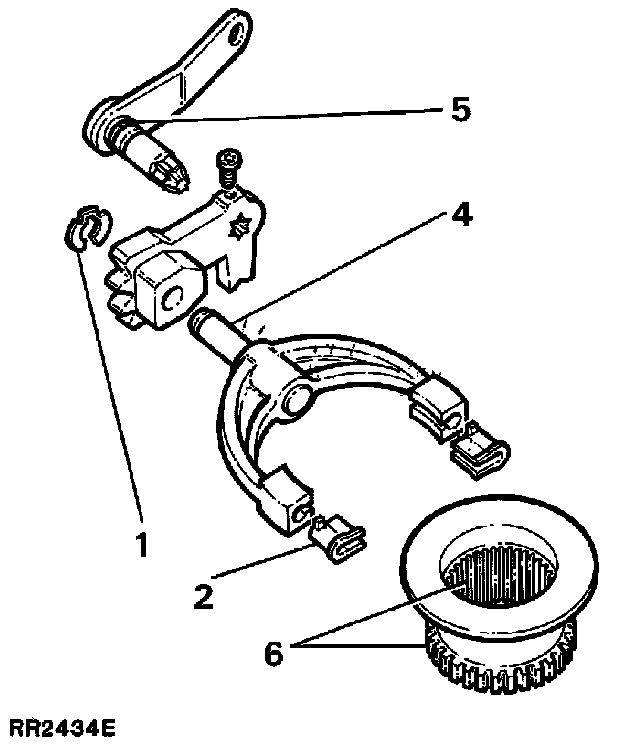

1. Remove the retaining clip and separate the fork from the arm.
2. Detach the two nylon slippers from the selector fork feet and discard.
3. Thoroughly clean all components.
4. Examine the fork, arm and pivot pin for wear. Renew as necessary.
5. Remove the 'O' ring and discard. Examine the shaft and lever for wear and damage, renew as necessary.
6. Examine the selector sleeve teeth and internal splines for damage and wear. Renew as necessary.







Selector fork - Assemble
7. Fit new nylon slippers to the fork.
8. Assemble the fork to the selector arm and secure in position using a new retaining clip.
9. Lightly lubricate and fit the spring and selector plunger.

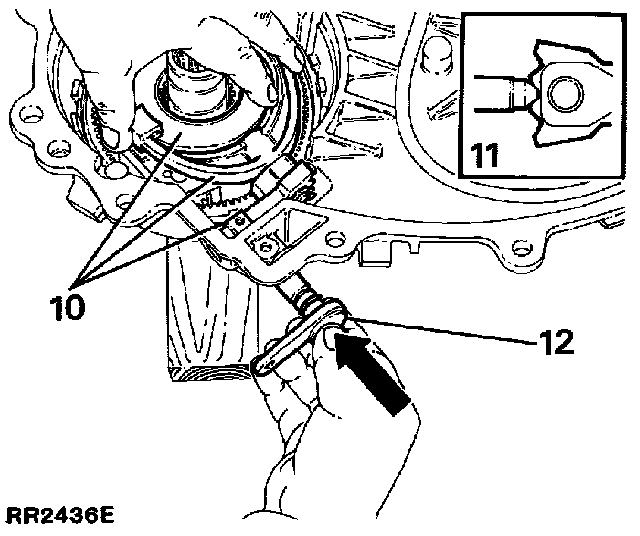

10. While compressing the plunger and spring, fit the selector fork, operating arm assembly and selector sleeve simultaneously.
11. Select neutral gear position at the operating arm.
12. Fit a new 'O' ring to the selector lever shaft. Lubricate the 'O' ring and fit the lever assembly to the rear cover, noting that when fully assembled the lever should lie parallel with the joint face of the rear cover.

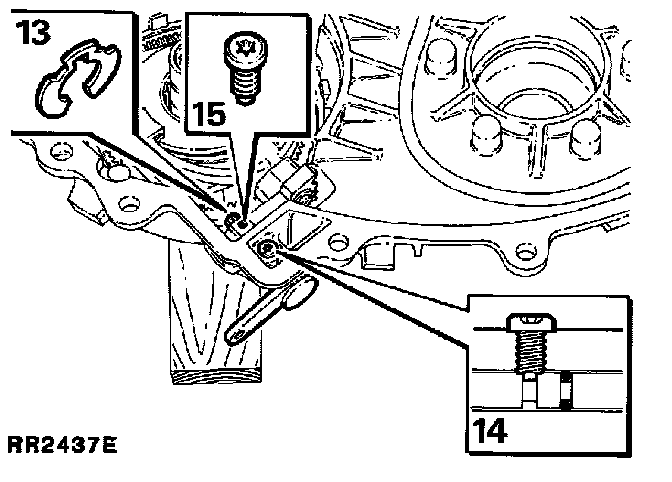

13. Fit a new retaining clip to secure the selector fork operating arm to the selector lever shaft.







14. Remove any previous sealant from the Torx screw. Align the selector lever shaft groove to the retaining screw hole, apply a small amount of Loctite 242 to the screw threads and using Torx bit 25 fit and tighten the screw to the specified torque. Ensure that the screw locates in the groove of the shaft.
15. Clean any previous sealant from the Torx screw. Apply a small amount of Loctite 242 to the threads of the screw and fit to the selector fork operating arm, tighten using Torx bit 25 to the specified torque.







Bearing carrier
- Dismantle, inspection and assemble

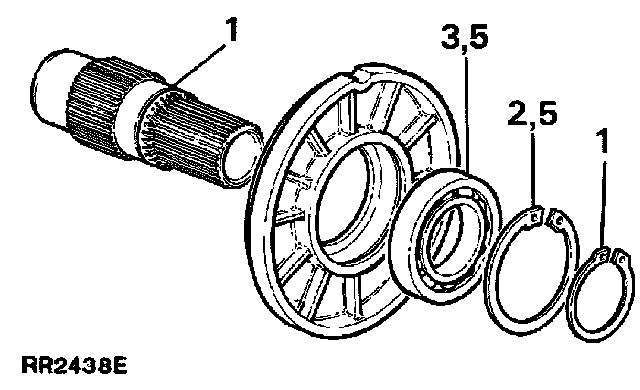

1. Remove the circlip and drive or press the transfer shaft from the bearing.
2. Remove the circlip retaining the bearing in the carrier.
3. Drive or press the bearing from the carrier and discard the bearing.
4. Clean and examine the carrier for cracks and general condition. Renew as necessary.
5. Press or drive a new bearing into the carrier and secure with the circlip.







Transfer shaft

- Inspection and assemble

1. Clean the transfer shaft.
2. Visually examine the external splines for damage and wear, if worn fit a new component.
3. Check the phosphor bronze bush for wear by measuring the internal diameter of the bush with internal calipers and a micrometer or with an internal micrometer. The bush diameter must not exceed 38.515 mm (1.516 in) fit a new transfer shaft if the bush has worn above the figure given.







4. Drive or press the transfer shaft into the bearing in the carrier. Secure the shaft with the circlip.

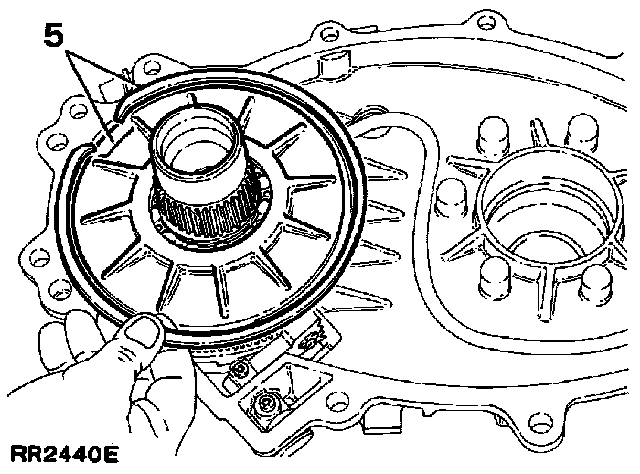

5. Fit the carrier to the rear cover, fit the anti -rotation dowel and secure the assembly with the snap ring, noting that the open ends of the snap ring must be positioned by the cast relief in the bearing carrier upper face.







Transfer sprocket - Inspection
1. Examine the sprocket teeth and splines for wear and damage, if either are evident discard the sprocket, otherwise clean and place to one side.

Chain - Inspection

NOTE: A stretched chain can be identified by either excessive noise when the gearbox is operational or by witness marks on the inside edges of the case. If either is evident, renew the chain.

1. Using a suitable solvent thoroughly clean the chain.
2. Check the chain links for wear and damage, if necessary renew the chain.
3. Place the chain to one side.

Centre differential and sprocket
- Dismantle and inspection

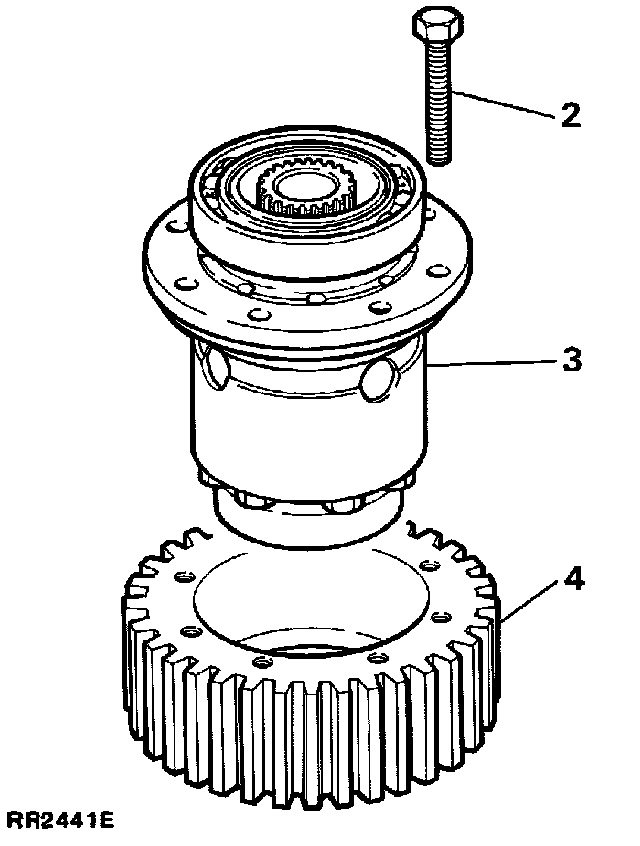

1. Place the differential unit in a vice fitted with soft jaws. If the original components are to be refitted mark an identification line on the sprocket and differential unit.
2. Remove the bolts securing the sprocket to the differential.
3. Lift the differential assembly from the sprocket.







4. Examine the sprocket teeth for wear and damage, if either are evident renew the sprocket. Place the sprocket aside until the differential is ready to be assembled.

Centre differential
- Dismantle and inspection

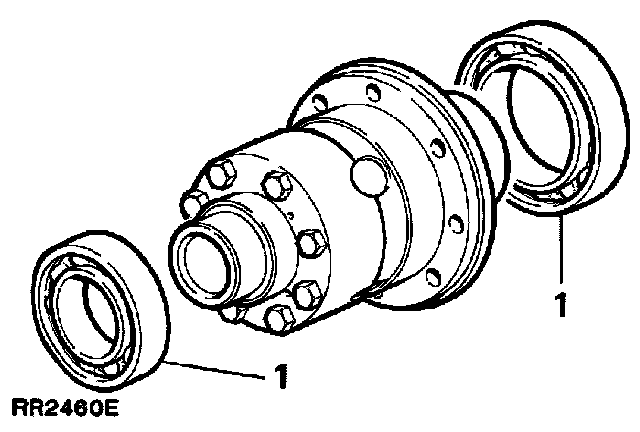

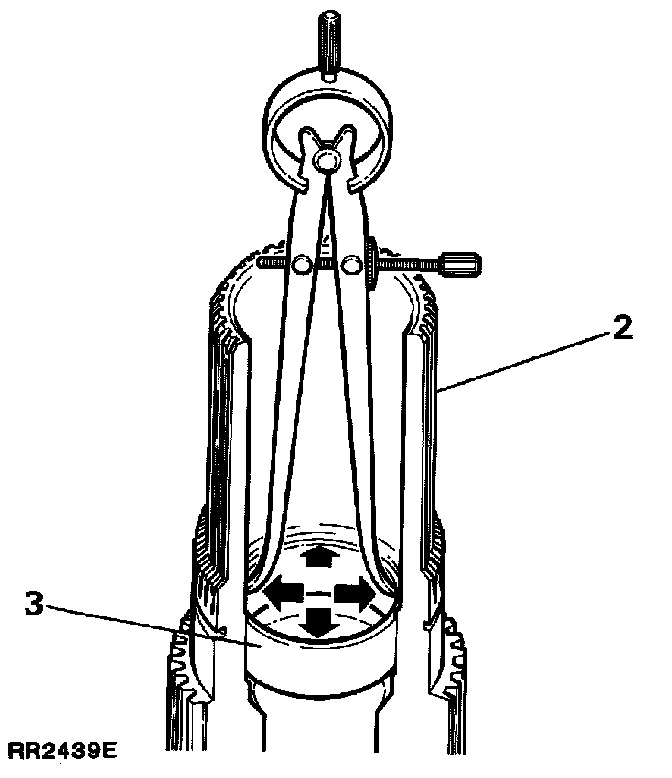

1. Using a two legged puller, ease the bearings from the differential assembly and discard the bearings.

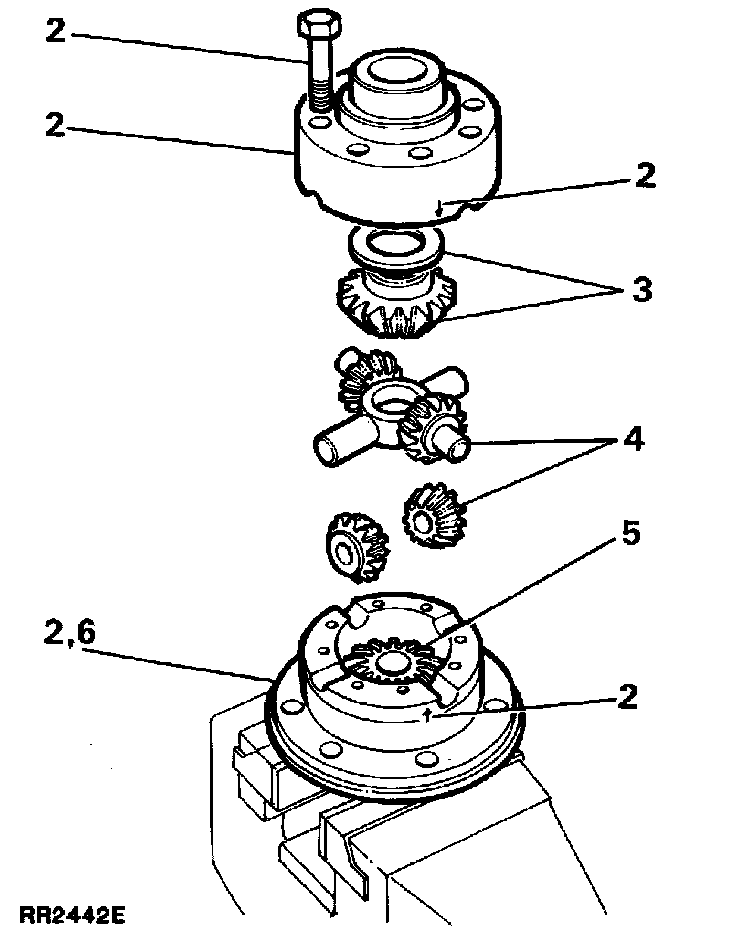

2. Secure the front half of the differential unit in a vice fitted with soft jaws, remove the eight retaining bolts securing the front and rear halves of the assembly together, lift off the rear part of the differential unit. Note the identification marks on the exterior of the differential unit.







3. Remove the rear upper bevel gear and thrust washer.
4. Remove the pinion gears and dished washers along with the cross shaft.
5. Remove the front lower bevel gear and thrust washer from the front half of the differential unit.
6. Remove the front half of the differential unit from the vice and clean all components. Examine for wear or damage, renew if necessary.

Differential pinions - rolling resistance

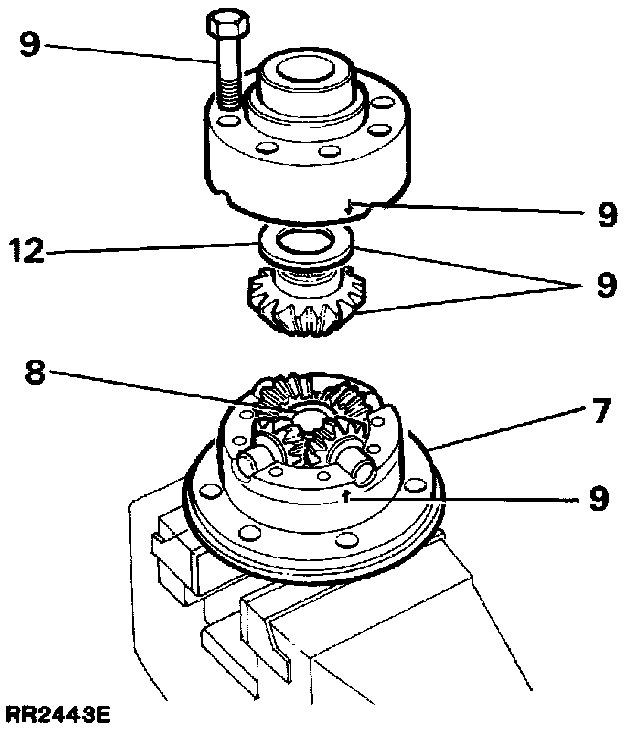

7. Using soft jaws secure the front half of the differential unit in the vice.
8. Fit the front bevel gear without the thrust washer. Lightly lubricate and fit the cross shaft, pinion gears and new dished washers.
9. Fit the rear bevel gear together with the thinnest thrust washer to the rear half of the differential. Assemble both halves of the differential noting the identification marks. Fit the bolts and tighten to the specified torque.







10. Invert the differential unit in the vice, fit the front output housing to the differential, locating the viscous unit splines on the front bevel gear. Fit the drive flange to the viscous unit and place the brake drum on top of the drive flange, secure with the nut. Check that the gears are free to rotate.

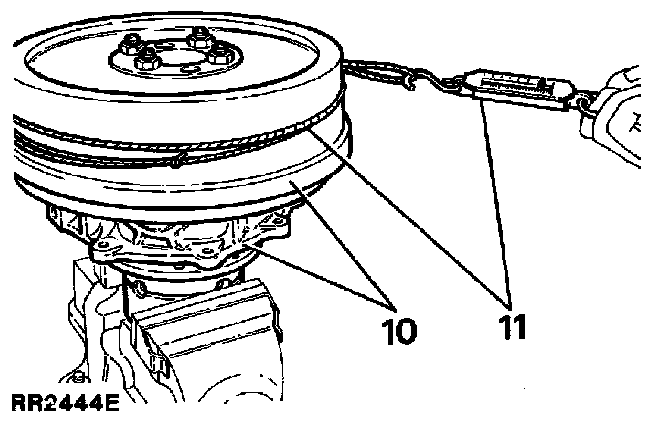

11. Tie a length of string around the brake drum, attach a spring balance to the free end and carefully tension the string until a load to turn is achieved. Alternatively use a torque wrench applied to the drive flange nut. Rotate the brake drum slowly by hand to overcome the initial load when using either method.







NOTE: Gears that have been run will rotate smoothly and will require a torque of 0.56 Nm (5 in lb), equivalent force using a spring balance 0.45 kg (1 lb). New gears will rotate with a notchy feel and will require a torque of not more than 2.26 Nm (20 in lb), equivalent force using a spring balance 7.72 Kg (3.8 lb). Keep all components lubricated when carrying out these adjustments.

12. Change the thrust washer for a thicker one if the torque reading is too low and re - check the torque. Five thrust washers are available in 0.10mm steps ranging from 1.05 to 1.45mm
13. Dismantle the unit when the rear bevel gear thrust washer has been selected.
14. Remove and retain the rear bevel gear and thrust washer combination.
15. Repeat the procedure to obtain the correct thrust washer for the front bevel gear, it is not necessary to fit the rear bevel gear when checking the front bevel gear rolling resistance.
16. When the thrust washer has been selected for the front bevel gear, again dismantle the differential unit and retain the thrust washer and front bevel gear combination.

Centre differential - Assemble
17. Fit the thrust washer and front bevel gear into the front half of the differential unit.

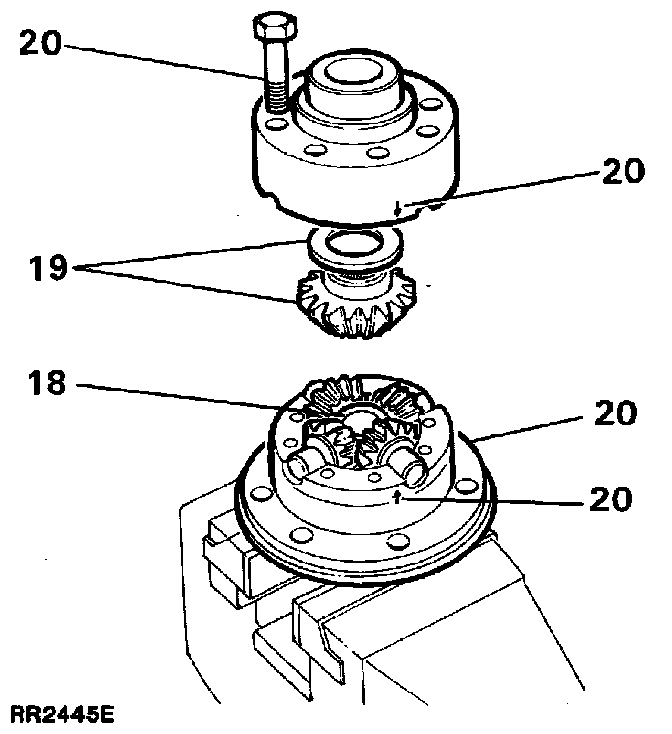

18. Fit the pinion gears with dished washers to the cross shaft and fit the assembly to the differential unit.
19. Fit the thrust washer and rear bevel gear to the rear half of the differential unit.
20. Align both halves of the differential noting the identification marks. Secure both halves together with the eight bolts. Tighten the bolts to the specified torque.







21. Check the overall torque required to turn the differential, this should be approximately equal to both bevel gears added together.
22. Drive or press new bearings onto the differential, noting that the smaller of the two bearings is fitted to the rear half of the differential.

Centre differential sprocket - Assemble
1. Fit the sprocket to the differential noting that the face of the sprocket with the relieved threads must contact the flange of the differential housing. Observe the previously marked identification lines if the original components are being refitted.

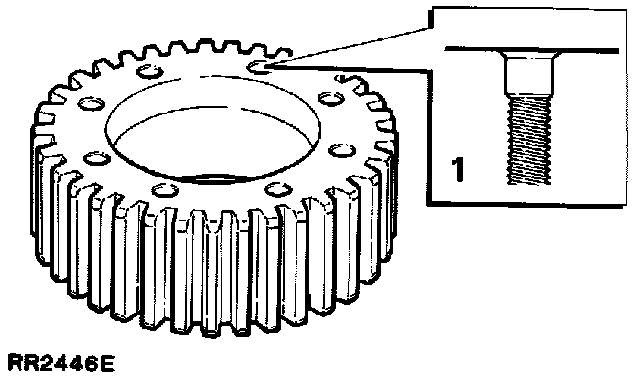

2. Fit new bolts and tighten evenly to the specified torque.







Transfer sprocket, centre differential assembly and chain - Assemble
1. Place the differential assembly and transfer sprocket inside the chain. If the original components are being refitted observe the identification marks previously applied to the chain and transfer sprocket. Fit the complete assembly simultaneously.

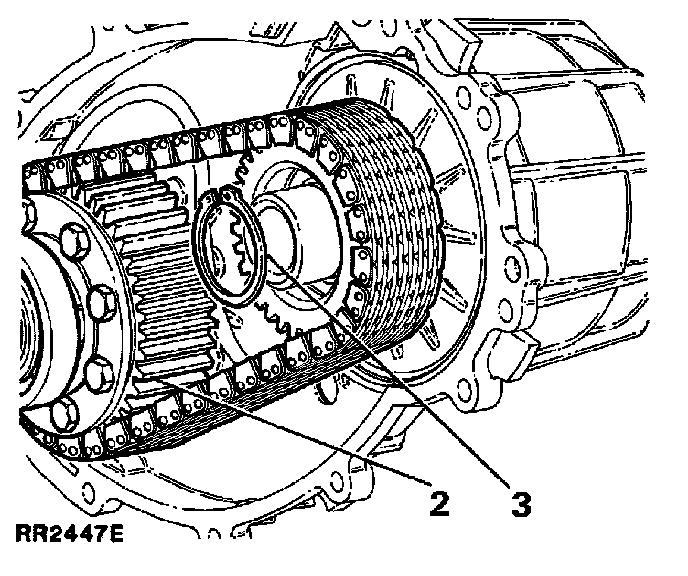

2. Carefully tap the differential bearing into its bore while easing the transfer sprocket onto the transfer shaft.







3. Ensuring that the transfer sprocket is fully down, secure the sprocket to the transfer shaft with the circlip.

Front and rear cover - main casing - Assemble

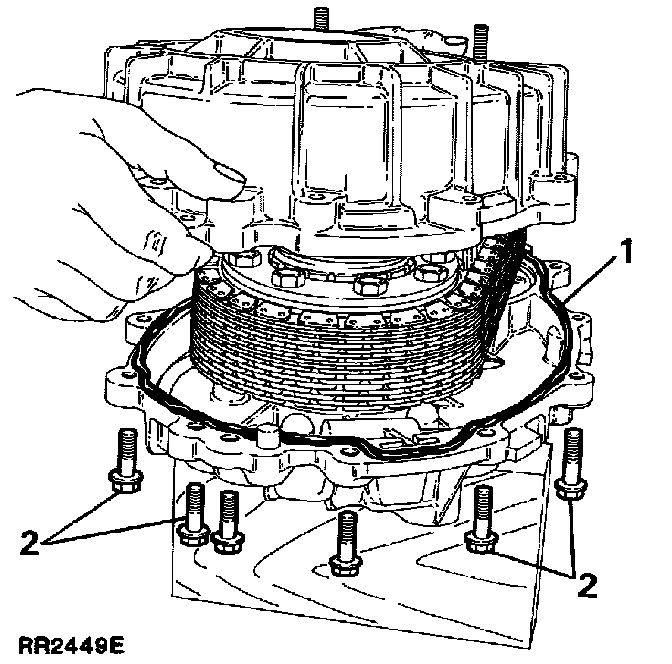

1. Ensuring that the joint faces of the front and rear covers are clean, apply a bead of Dow Corning 732 or a suitable equivalent silicone sealant to the joint face of the rear cover and evenly spread the sealant over the face. Do not over apply the sealant.







2. Fit the front cover, secure with the eleven bolts, tightening evenly to the specified torque. Do not wipe away the surplus sealant which is forced out of the joint.

Rear output housing
- Dismantle and inspection

Service tools:
18G1422 - Oil seal replacer
18G1205 - Adjustable flange holding wrench

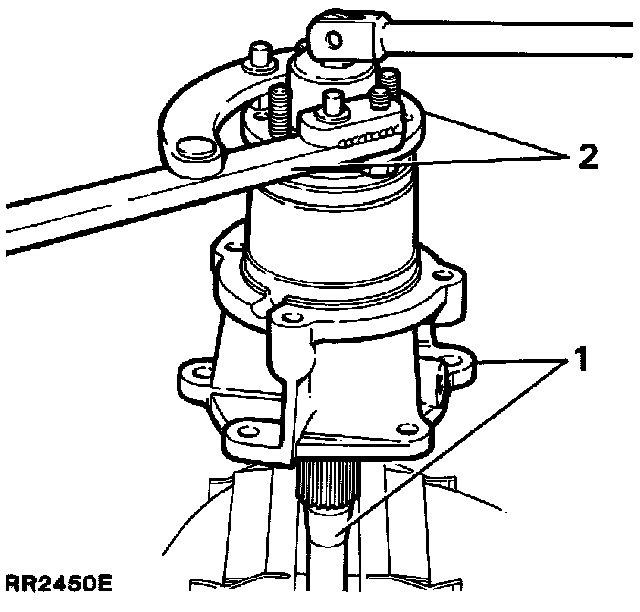

1. Support the rear output housing by the output shaft in a vice fitted with soft jaws.
2. Using service tool 18G1205 to restrain the drive flange, release and remove the nyloc nut and plain washer securing the drive flange to the output shaft, withdraw the rubber seal. Discard the nut and seal.







3. Remove the drive flange from the output shaft. Examine the flange for damage or wear particularly the seal running surface, if the surface is corroded or a groove has been worn by the previous seal discard the flange.

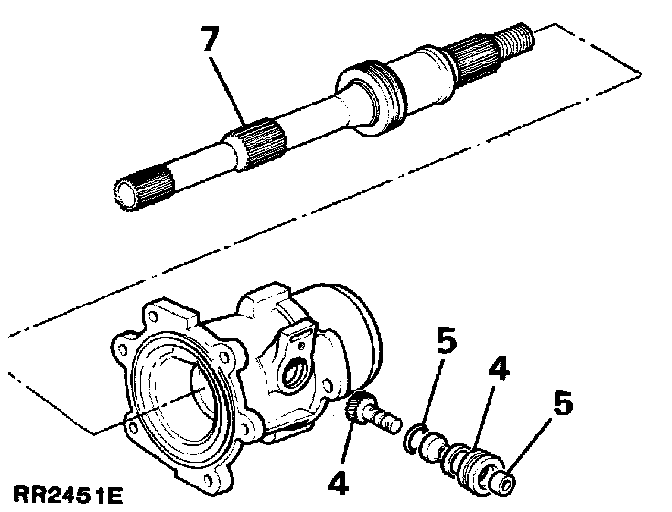

4. Prise the speedometer sleeve and driven gear from the housing. Examine the gear teeth for wear, if worn discard the gear.
5. Prise the oil seal from the sleeve and remove the 'O' ring, discard both the seal and 'O' ring.
6. Clean the sleeve and place to one side.
7. Drive or press the output shaft from the housing.

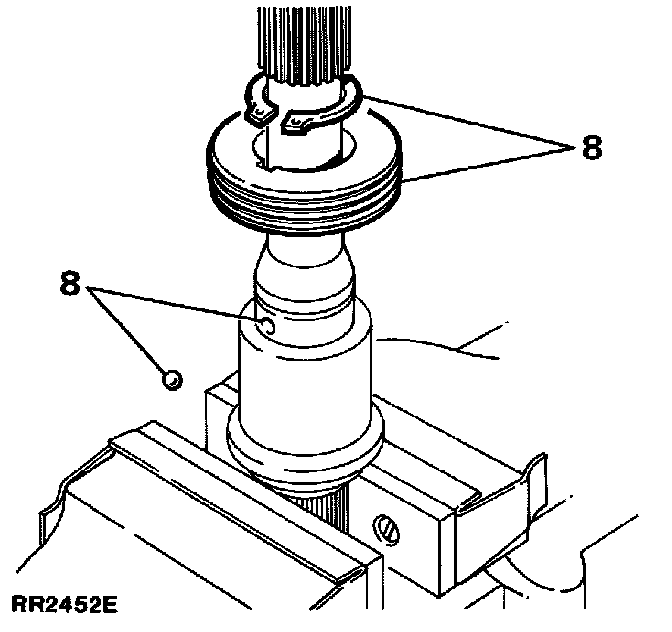

8. Clean and examine the splines and speedometer drive gear for wear or damage. The output shaft can be further dismantled if either the speedometer drive gear or output shaft is worn: remove the circlip and slide the gear from the shaft, retrieve the ball bearing from the indent in the shaft. Discard the worn component.







NOTE: While the output shaft is removed from the rear output housing, the shaft can be utilized for checking the rolling resistance of the viscous unit as follows.

Viscous unit - rolling resistance

Bench check

NOTE: Testing should be carried out in an ambient of 20 °C.

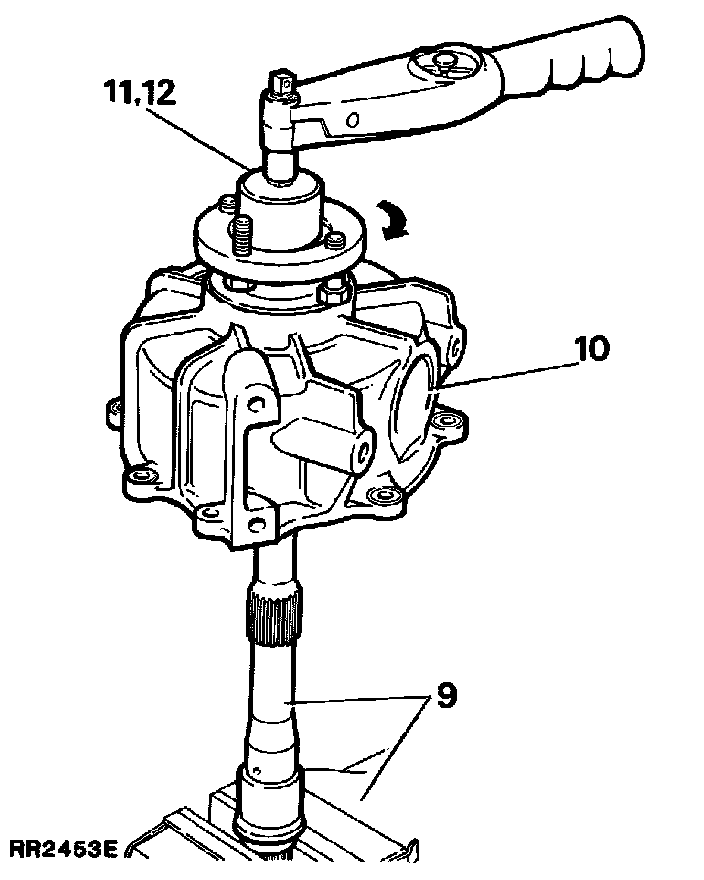

9. Secure the output shaft in a vice fitted with soft jaws, gripping the shaft on the drive flange splines.
10. With the viscous unit still installed in the front output housing place the assembly on the rear output shaft spline.
11. Apply a clockwise torque of 27 Nm to output flange nut. If no resistance to turn is felt, unit requires replacing.
12. If resistance to turn is felt, apply a clockwise torque of 20Nm, to output flange nut for 1 minute, this should result in a rotation of approximately 25 ° - 30 °. If no rotation or a greater force is required, unit requires replacing.







Rear output housing (continued)

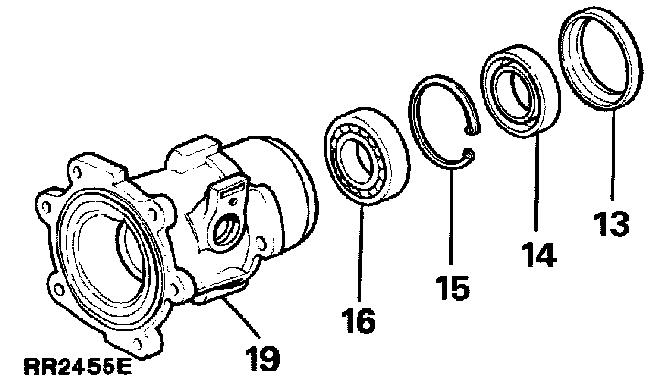

13. Lever off the dust shield.

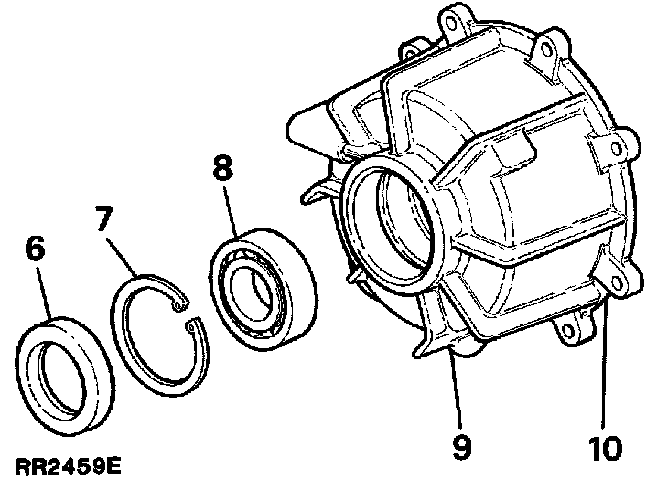

14. Prise the oil seal from the housing and discard the seal.
15. Remove the circlip retaining the bearing.
16. Drive or press the bearing from the housing. Discard the bearing.
17. Remove any previous sealant from the housing joint face.







18. Thoroughly clean all components with a suitable solvent.
19. Examine the housing for damage and wear. Renew as necessary.

Rear output housing - Assemble
20. Drive or press a new bearing into the housing until the bearing contacts the shoulder.
21. Fit the circlip.
22. Lubricate a new oil seal. Using oil seal replacer 18G1422 fit the seal, lip side leading until it contacts the circlip.
23. Fit the dust shield.
24. Place the ball bearing in the indent on the output shaft, fit the speedometer drive gear to the shaft, secure together with the circlip.
25. Press or drive the output shaft into the housing until the shoulder of the shaft contacts the bearing.
26. Lubricate the oil seal bearing surface of the drive flange and fit the flange followed by a new rubber seal. Fit the steel washer and secure the flange to the shaft using a new nut. Tighten to the specified torque.
27. Lubricate a new speedometer sleeve oil seal, press the seal into the top of the sleeve.
28. Fit a new 'O' ring to the outside of the sleeve, push the driven gear spindle into the sleeve.
29. Lubricate the 'O' ring and push the sleeve and gear assembly into the housing. It may be necessary to rotate the output shaft to ensure that the driven gear engages with the drive gear on the shaft.
30. Apply Dow Corning 732 or a suitable equivalent silicone sealant to the rear output housing joint face on the main casing. Evenly spread the sealant on the face to ensure a good seal
31. Fit the housing to the main casing and secure with the six bolts tightened to the specified torque.

Front output housing
- Dismantle and Inspection

Service tools:
18G1422 - Oil seal replacer.
18G1205 - Adjustable flange holding wrench

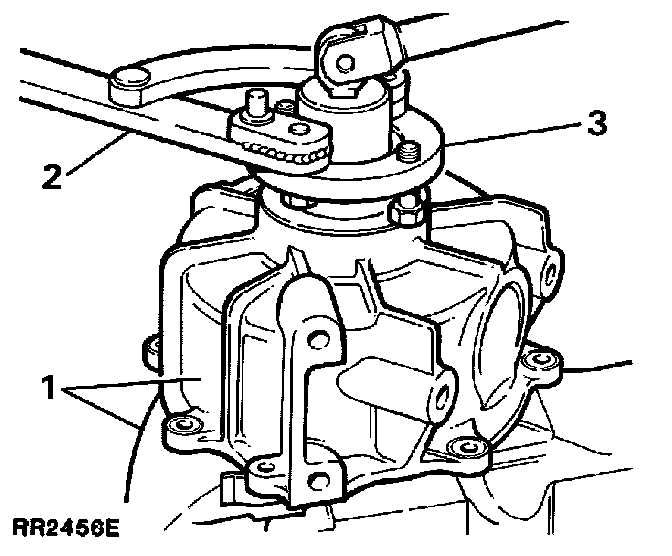

1. Support the viscous unit and front output housing in a vice fitted with soft jaws gripping on the two flats of the viscous unit.

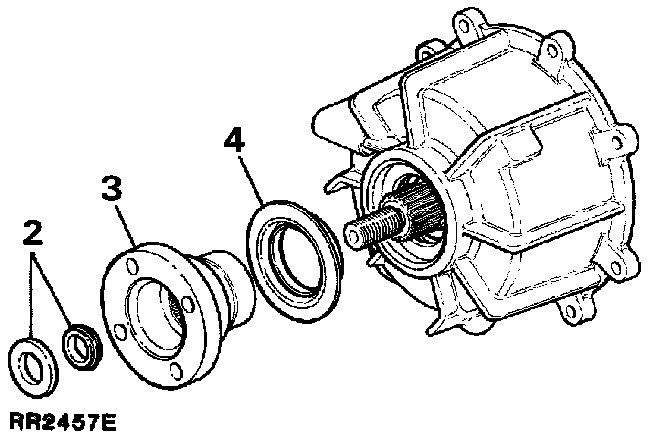

2. Using service tool 18G1205 to restrain the drive flange, release and remove the nyloc nut and plain washer securing the drive flange to the output shaft, withdraw the rubber seal. Discard the nut and seal.
3. Remove the drive flange from the viscous unit. Examine the flange for damage or wear particularly the seal running surface, if the surface is corroded or a groove has been worn by the previous seal discard the flange.







4. If necessary the oil catcher can be carefully pressed from the drive flange, if either a new oil catcher or bolts are being fitted.

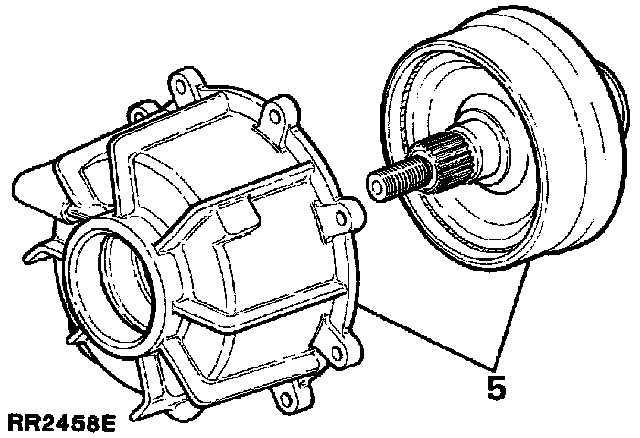

5. Carefully tap the viscous unit out of the housing. If the original unit is being refitted wipe clean with a clean cloth.







NOTE: The viscous unit is a sealed assembly and cannot be further dismantled, a new unit should be fitted if the unit is damaged or if the torque to turn is out of limits.

6. Prise the oil seal out from the front output housing and discard.
7. Remove the circlip retaining the bearing.
8. Drive or press the bearing from the housing and discard.
9. Clean the housing with a suitable solvent.
10. Remove any previous sealant from the joint face of the housing.







11. Examine the housing for damage and wear, renew the housing if necessary.

Front output housing - Assemble
12. Drive or press a new bearing into the housing
13. Fit the circlip to retain the bearing.
14. Lubricate a new oil seal. Using oil seal replacing tool 18G1422 fit the seal, lip side of the seal leading until it contacts the circlip.
15. Carefully tap the original or new viscous unit into the housing until contact is made with the face of the bearing.
16. Lubricate the lips of the seal and fit the flange followed by a new rubber seal; fit the steel washer and secure the flange with a new nut. Tighten to the specified torque.
17. Apply Dow Corning 732 or a suitable equivalent silicone sealant to the output housing joint face of the main casing. Evenly spread the sealant on the face to ensure a good seal.
18. Fit the housing to the main casing and secure in position with the eight bolts tightened evenly to the specified torque.
19. Refit the gearbox to the vehicle.
