Selector Shaft: Service and Repair

Selector Shaft Leak Elimination
1. Place vehicle on a hoist or over a pit, open the hood and disconnect the battery leads.

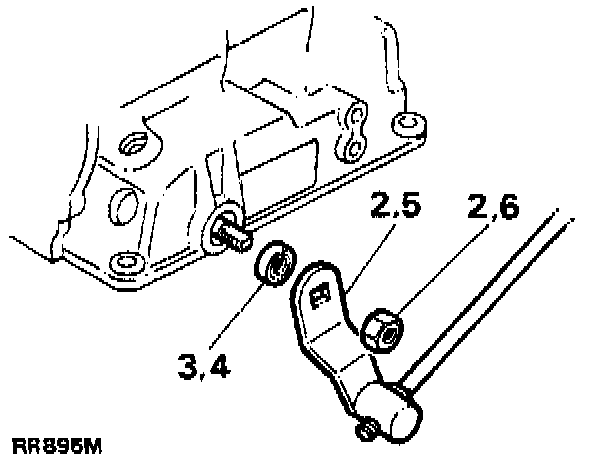

2. From underneath the vehicle remove the nut and gear-change lever.
3. Using a suitable tool remove the oil seal.
4. Fit the new oil seal using the selector shaft oil seal replacer LST114. For ease of fitment use a light grease or Petroleum Jelly.
5. Refit gear-change lever. Ensure that it is located correctly.
6. Fit and tighten nut to 22-28 Nm (16-21 ft lbs).
