Power Steering Fluid Reservoir: Service and Repair

NOTE: The reservoir contains an integral filter which is not serviceable, however, in normal use the reservoir unit should last the life of the vehicle. Should the power steering system malfunction and under inspection it is found that the steering fluid has been contaminated by foreign matter a new fluid reservoir MUST be fitted.

REMOVE
1. Place a drain tray beneath the power steering box.
2. Prop open the hood.

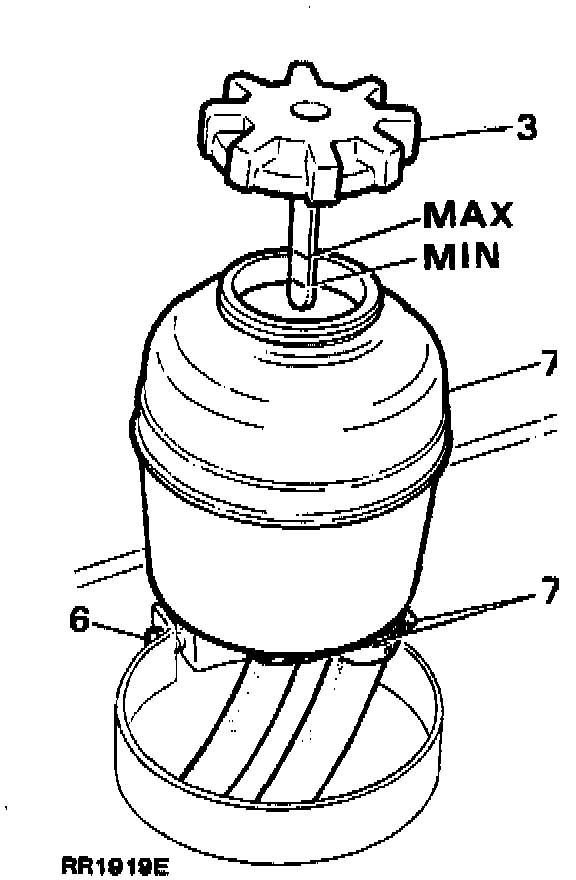

Reservoir Filler Cap:

3. Remove the reservoir filler cap.

Return Hose:

4. Disconnect the return hose from the steering box. Drain the fluid completely from the reservoir, reconnect the hose.

CAUTION: Power steering fluid is harmful to paint work. Should any fluid seep onto body, chassis, or any other components, immediately wipe clean. It is most important that fluid drained from the power steering system is not re-used.

5. Refit the return hose to the steering box.
6. Release the pinch bolt and remove the reservoir from the bracket.
7. Release the hose clamps and remove the flexible hoses, withdraw the reservoir from the engine compartment.

NOTE: If the reservoir is not to be refitted immediately, the hoses must be sealed to prevent the ingress of foreign matter.

REFIT
1. Reconnect the flexible hoses to the reservoir. Tighten the hose clamps securely.
2. Refit the reservoir to the bracket and tighten the pinch bolt securely.
3. Fill the reservoir to the prescribed level on the dipstick with one of the recommended fluids and bleed the power steering system.
4. Fit the reservoir filler cap.
5. Close the hood.
