Evaporative Emission Control Canister: Service and Repair

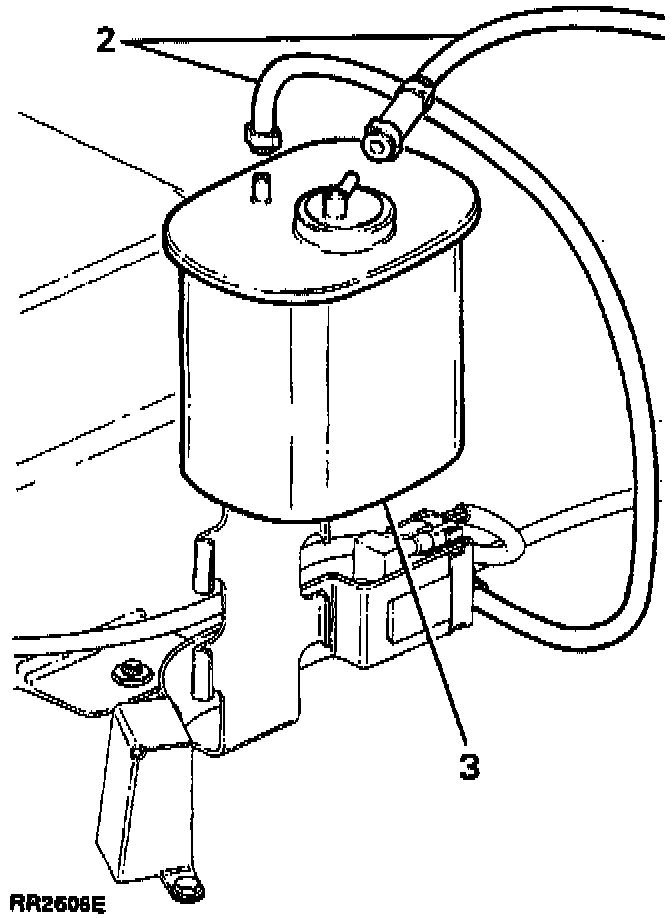

1. Disconnect battery negative lead.





2. Disconnect both purge lines.
3. Release canister from its mounting brackets.
4. When refitting, be sure that the canister is securely located in its mounting bracket and both purge lines are fitted correctly to the canister.
