With ABS

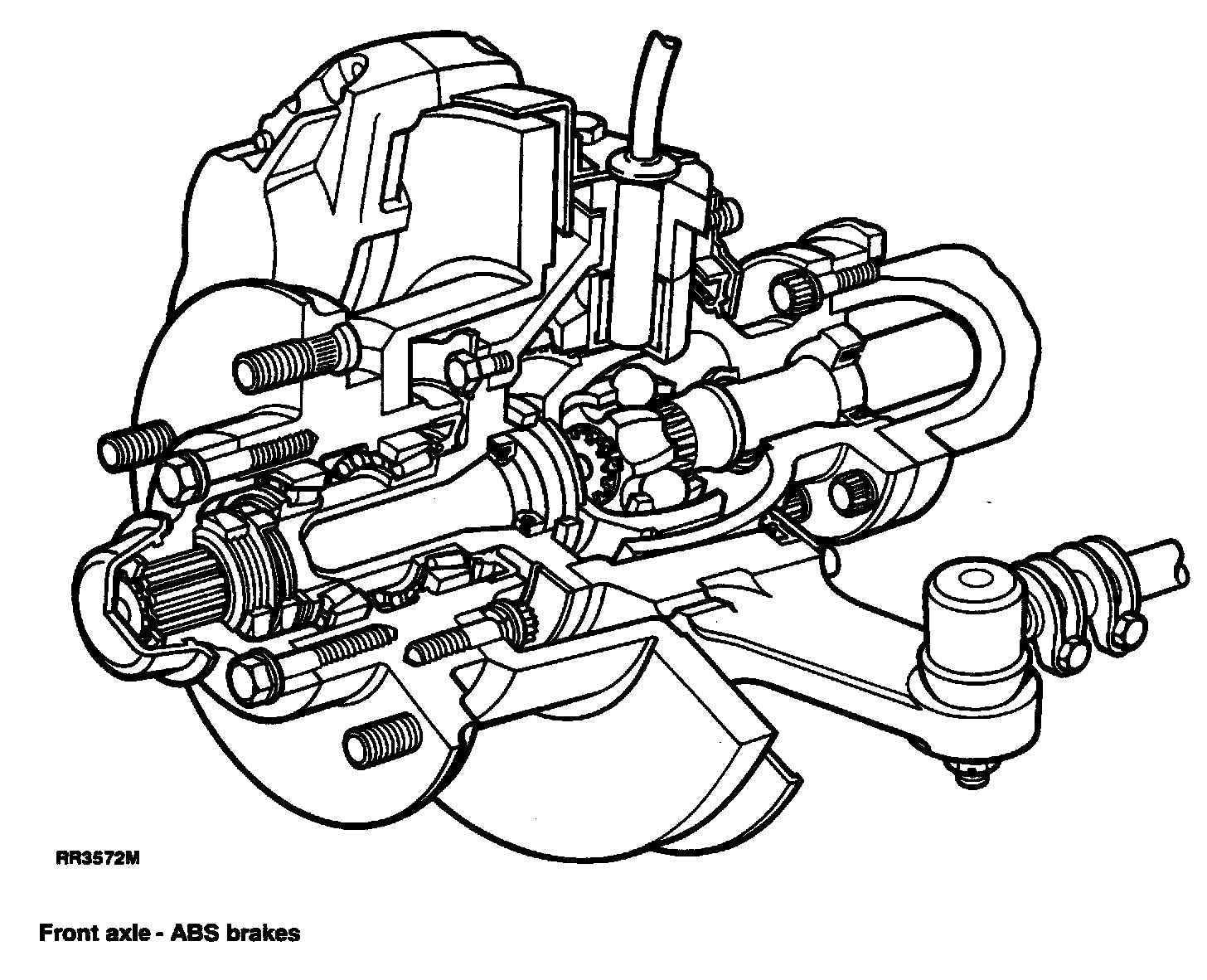

Front axle - ABS brakes

DESCRIPTION






The welded steel front axle casing houses a separate spiral bevel type differential unit, which is off set to the right of the vehicle centre line. The differential unit drives the front wheels via the axle shafts and constant velocity joints which are totally enclosed in the spherical and swivel housings.

Front axles fitted with ABS brakes are of slightly different construction to axles with non ABS brakes.
