Bulb Replacement

BULB REPLACEMENT
1. Disconnect the battery negative lead.

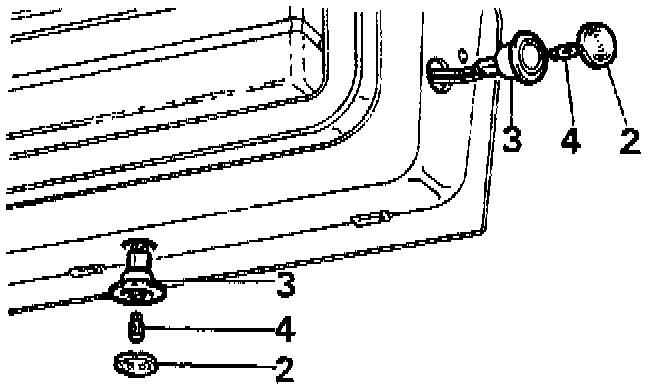

Door Lamps:

2. Carefully pry out the lamp lens.
3. Withdraw the lamp body from the door ONLY as far as the electrical leads will permit.
4. Pull the bulb from the holder.
5. Fit a new the bulb and refit the lamp lens.
6. Push the lamp into the door. The correct bulb type is a 12-volt 5-watt capless.
