Audible Warning Device: Service and Repair

Remove
- Disconnect the battery negative lead.
- Remove the steering column shroud.
- Remove the under dash panel.

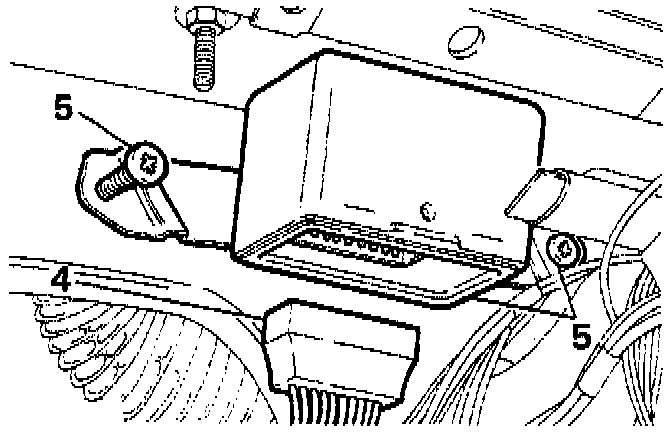

Audible Warning Device:





- Disconnect the multi-pin plug (4).
- Remove two securing screws (5) and withdraw the audible warning unit.

REFIT
- Reverse the removal procedure.
