A/C

REMOVE
- Remove and dismantle the evaporator case. Service and Repair

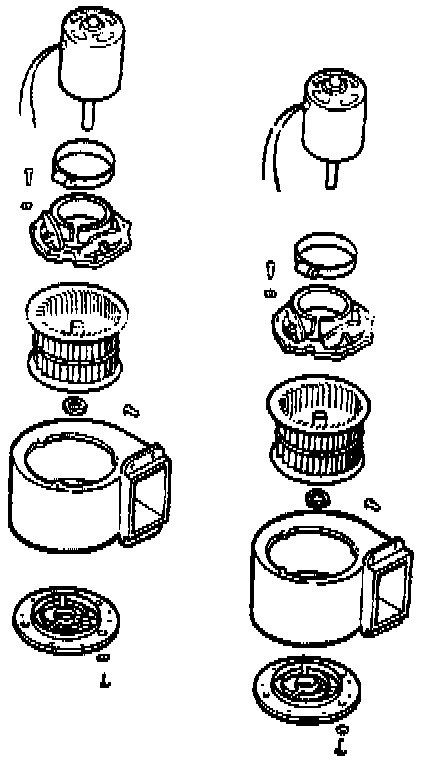

Blower Motors:

- Remove screws from the blower motor mount, and withdraw motor assembly.
- Remove the clip from motor spindle and remove blower wheel.
- Loosen the clamp securing the motor to the motor mount. Remove the blower motor.

REFIT
- Reverse the removal procedure.
