Fresh Air/Recirculation Solenoid

REMOVE
- Disconnect the battery negative lead.
- Remove the transmission lever surround.
- Remove the radio mounting console.
- Remove the center dash unit and the lower dash panel.

Vacuum Controls:

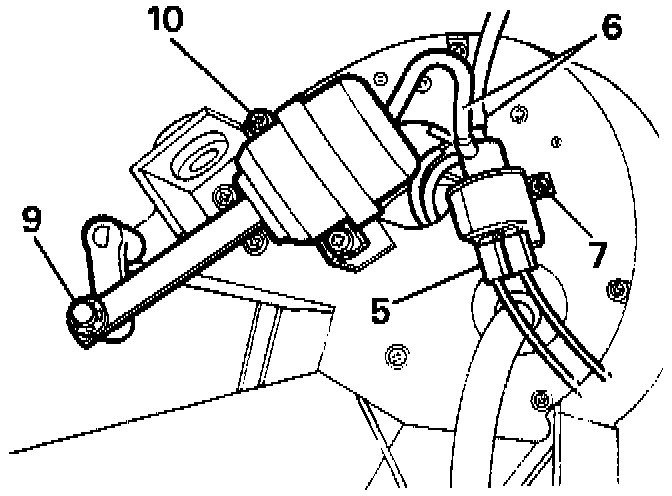

- Disconnect the electrical leads (5) to the solenoid.
- Disconnect the two vacuum hoses (6).
- Remove the two screws (7) and withdraw the solenoid.
