Without ABS

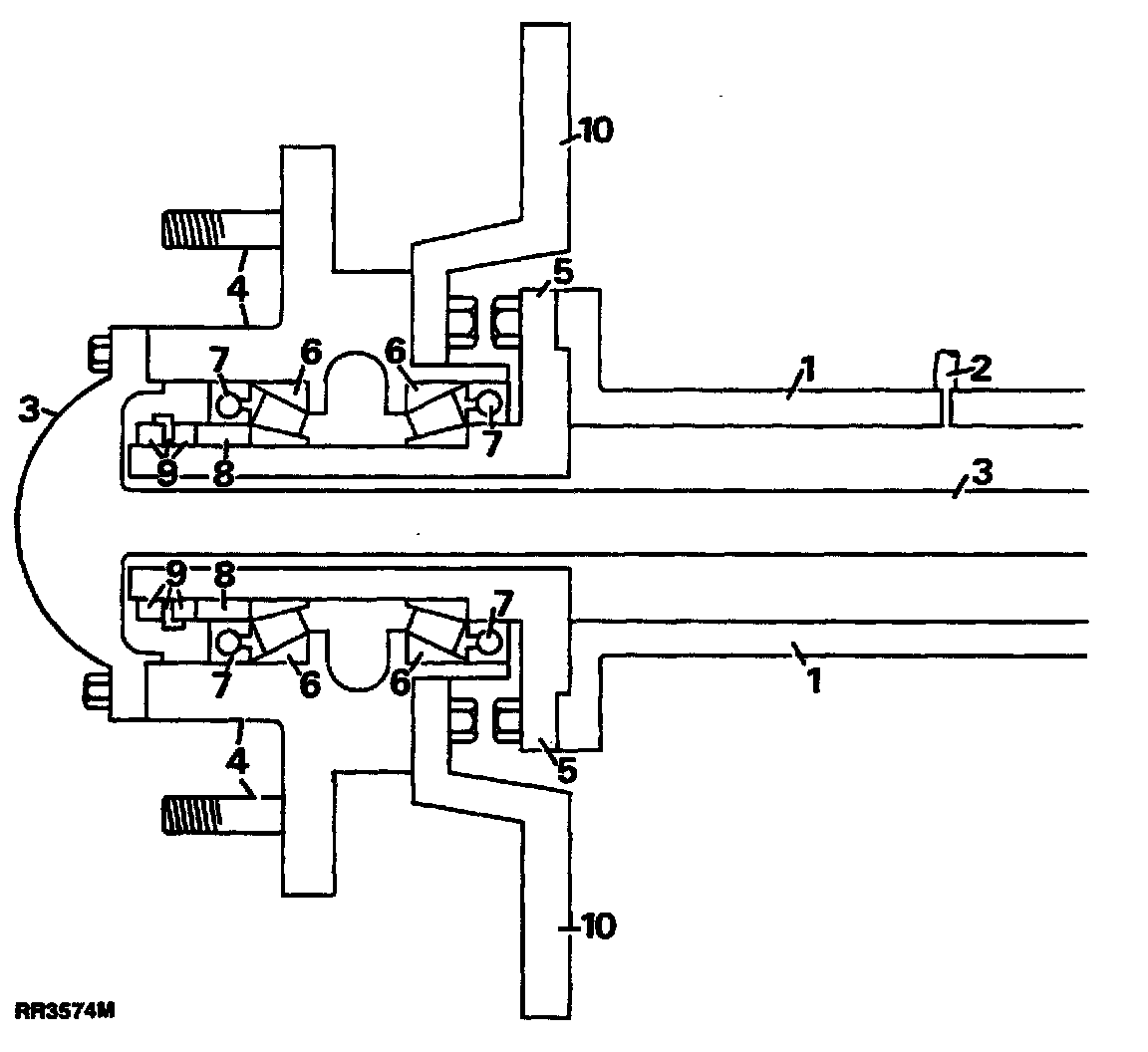

Rear axle hub - non ABS brakes






1. Axle casing
2. Ventilation pipe
3. Axle shaft/drive flange
4. Wheel studs and hub
5. Wheel bearing stub axle
6. Wheel bearings (2)
7. Inner and outer hub seals
8. Outer seal, inner track/spacer
9. Hub lock plate and nuts (2)
10. Brake disc
