With ABS

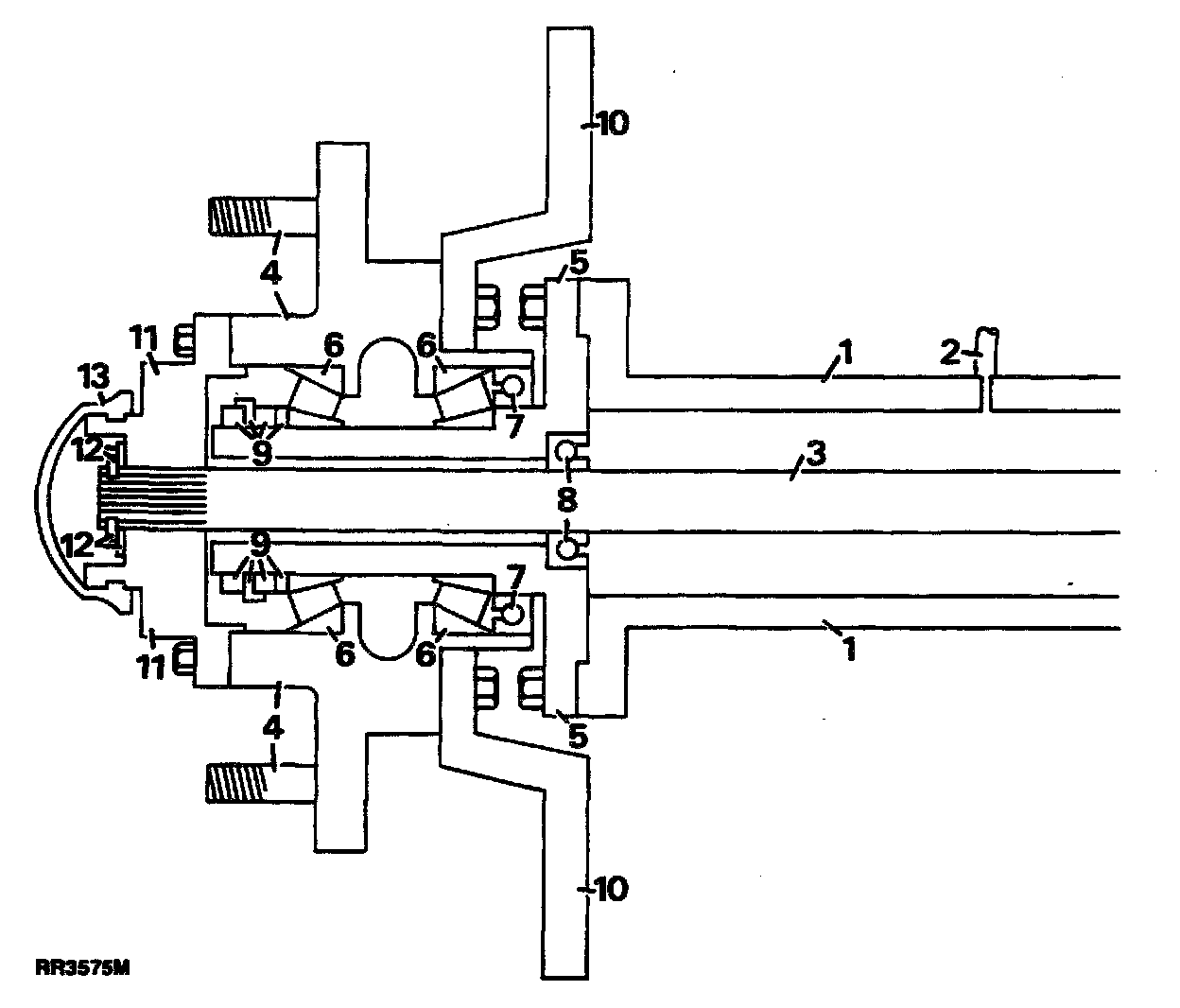

Rear axle hub - with ABS brakes






1. Axle casing
2. Ventilation pipe
3. Axle shaft
4. Wheel studs and hub
5. Wheel bearing stub axle
6. Wheel bearings (2)
7. Inner hub seal
8. Outer hub/axle shaft seal
9. Hub lock plate, thrust washer and nuts (2)
10. Brake disc
11. Drive flange hub/axle shaft
12. Shim washer and cirdip
13. Dust cap
