Without ABS

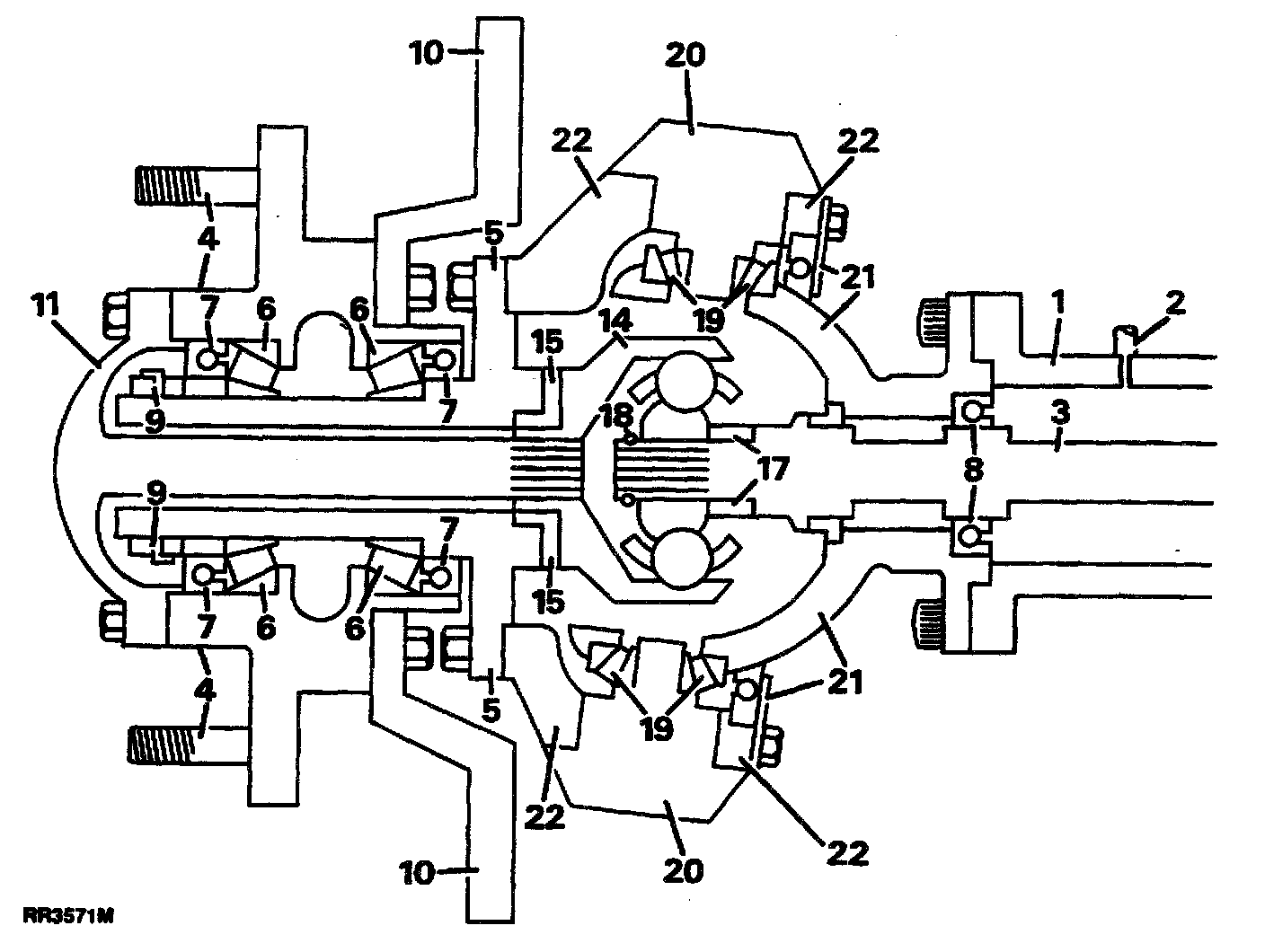

Front axle - non ABS brakes






1. Axle casing
2. Ventilation pipe
3. Axle shaft
4. Wheel studs and hub
5. Stub axle
6. Wheel bearings (2)
7. Inner and outer hub seals
8. Axle shaft seal
9. Hub lock plate, thrust washer and nuts (2)
10. Brake disc
11. Drive flange and shaft
14. Constant velocity joint/shaft
15. Thrust collar/support bush for CV joint
17. Spacer
18. Circlip
19. Top and bottom swivel taper bearing
20. Top and bottom swivel pins
21. Spherical housing, seal and retainer
22. Swivel housing
