Land Rover
>>
1990
>>
Range Rover (LH) V8-3.9L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Wiper and Washer Systems
>>
Front Wipe/Wash
Front Wipe/Wash

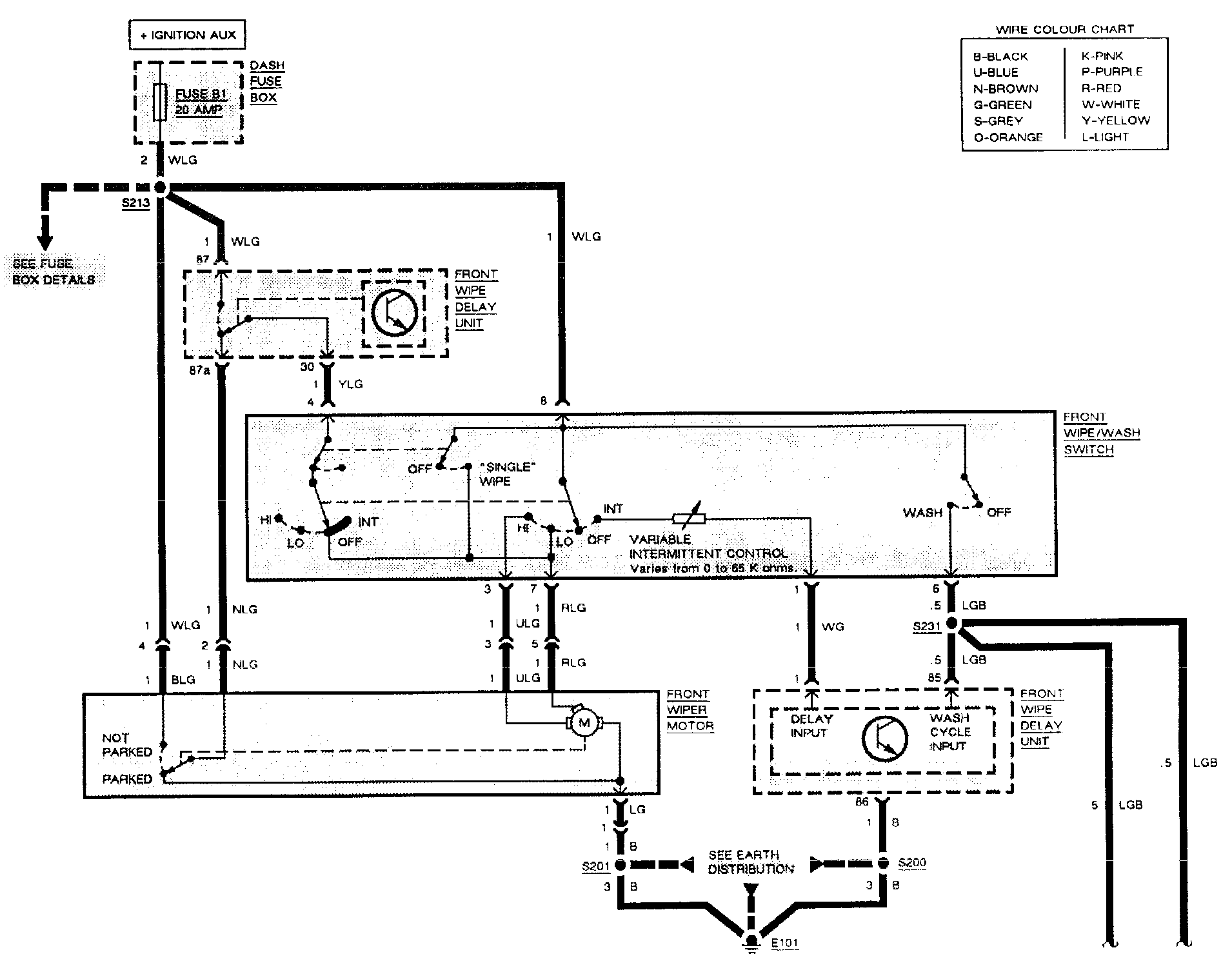

Front Wipe / Wash:

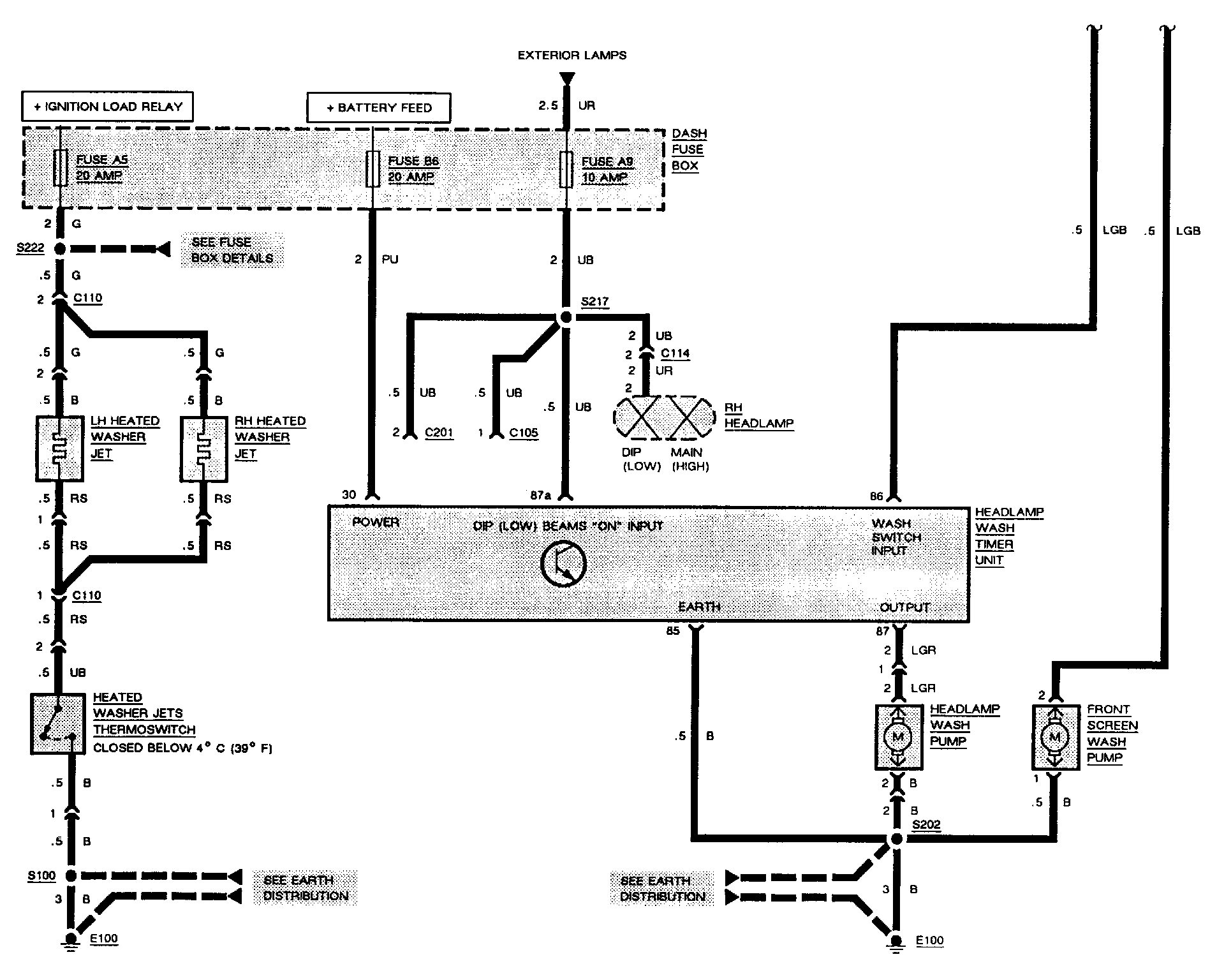

Front Wipe / Wash:
