Procedure II Brake Line Bracket Installation/Work Procedure

TOOLS/MATERIALS REQUIRED:

QTY. DESCRIPTION SOURCE
1 3/16 Drill with stop In Kit
1 Drilling template In Kit
1 Anti-Corrosion Wax In Kit
1 Bracket Kit RRNA Parts Dept.
1 Air or electric drill Local

WORK PROCEDURE

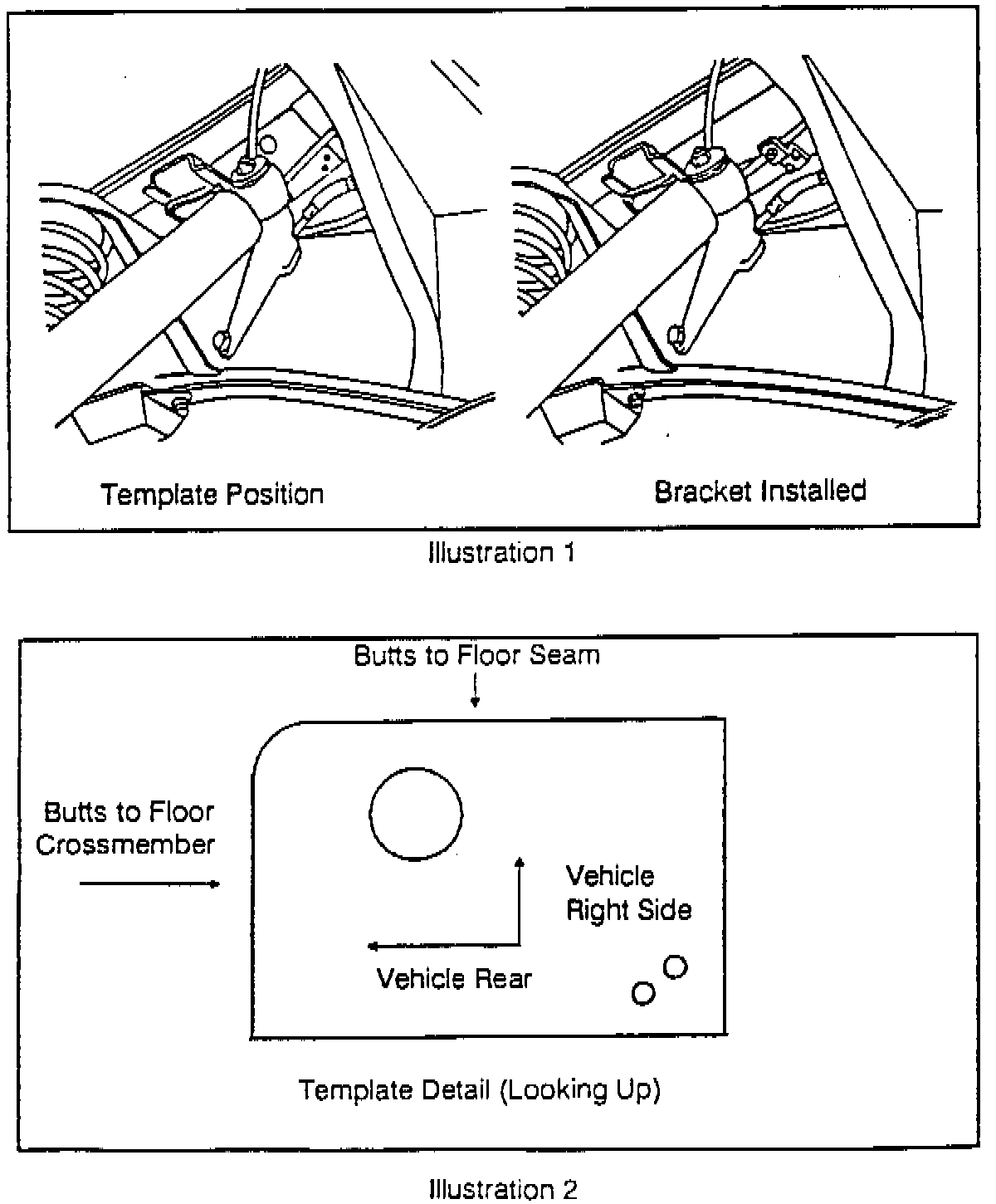

1. Using illustration # 1, locate area for bracket installation and remove any dirt, mud or debris.

2. Place template, dot-side facing you, as indicated in illustration's # 1 and # 2.*

3. Using the drill with stop provided, drill 2 holes through floor- dress holes with a tapered punch. WEAR EYE PROTECTION.

NOTE:
Failure to use the drill stop will damage vehicle carpet/under pad.

4. Pop-rivet bracket to floor.

5. Install pipe clip to bracket and clip brake line in place.

6. Spray bracket and surrounding area with anti-corrosion wax provided in the kit.

7. Complete and install a Service Campaign label on the driver's door jamb above the manufacturer's label. For long term durability, place a clear plastic square over the label.

8. Record completion of the campaign on page 37 of the Passport to Service.

* Do not use paper template enclosed with clip kit.
