Electrical Diagrams: Diagrams

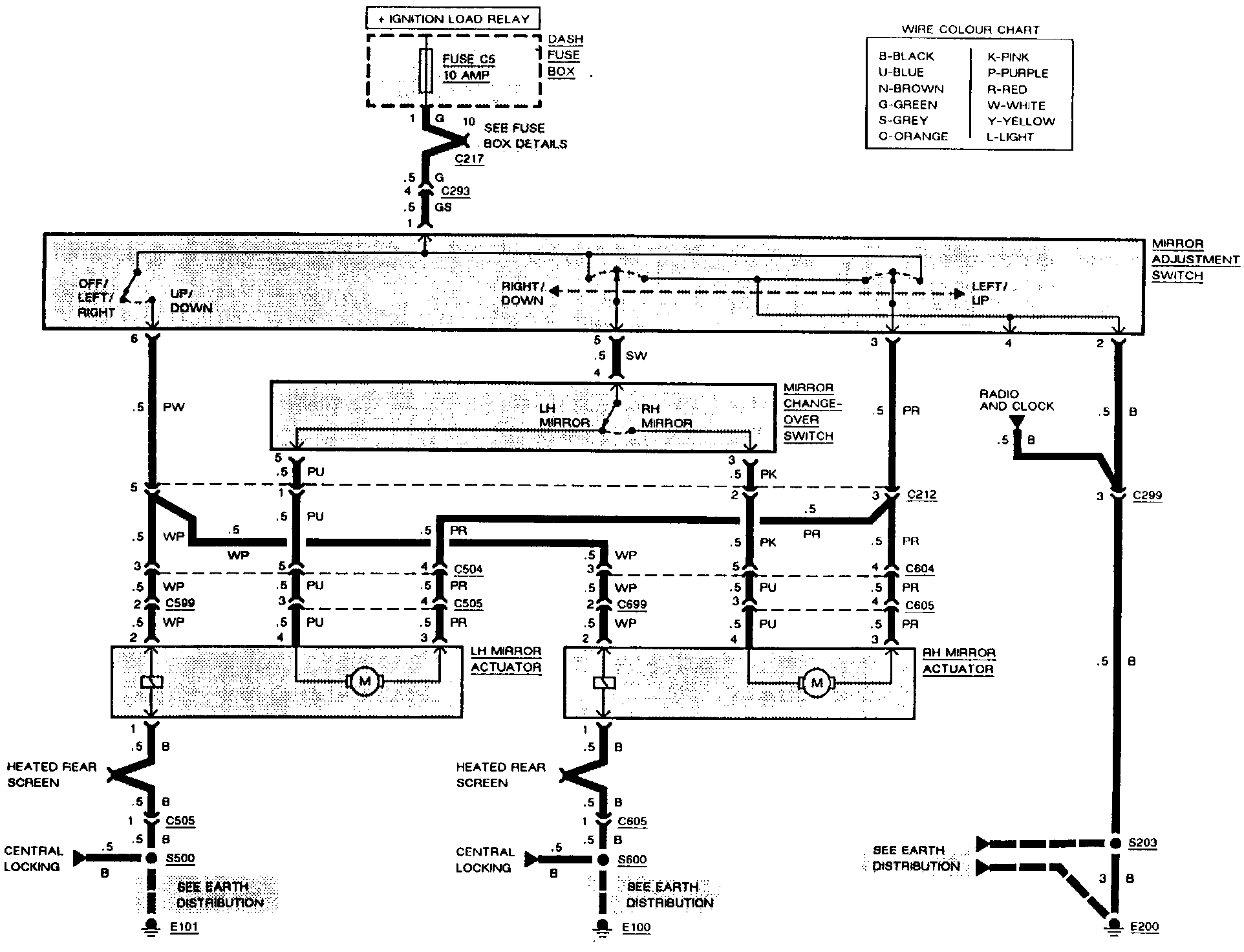

Fig. 118:

Fig. 118

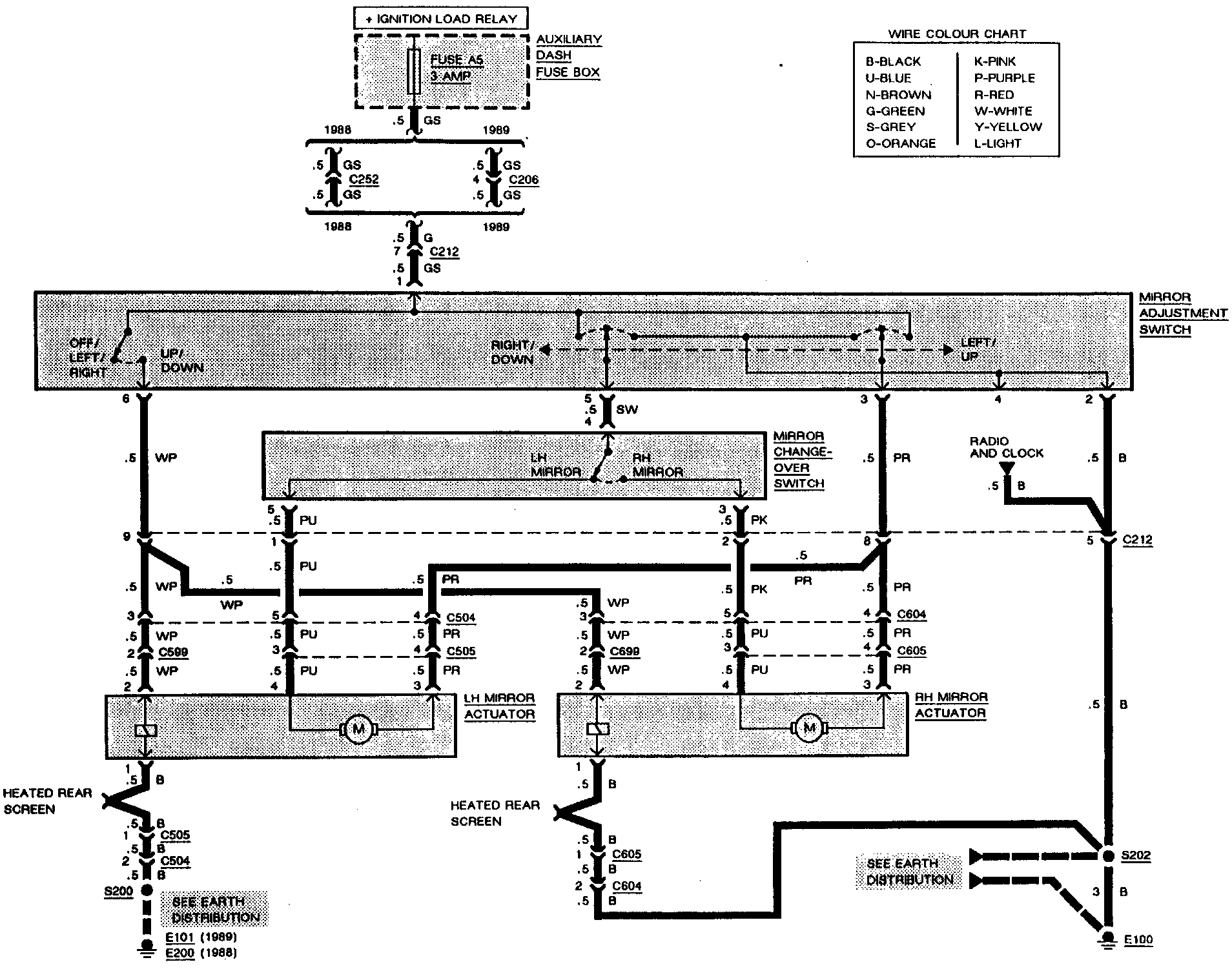

Fig. 119:

Fig. 119

The wiring diagram relates to the Power Mirrors and is only part of the complete wiring diagram.

To view any additional Fig. # referred to in this diagram, refer to the Diagrams By Figure Number list, located at Vehicle Diagrams.
