Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Land Rover
>>
1990
>>
Range Rover (LH) V8-3.9L
>>
Repair and Diagnosis
>>
Body and Frame
>>
Locks
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

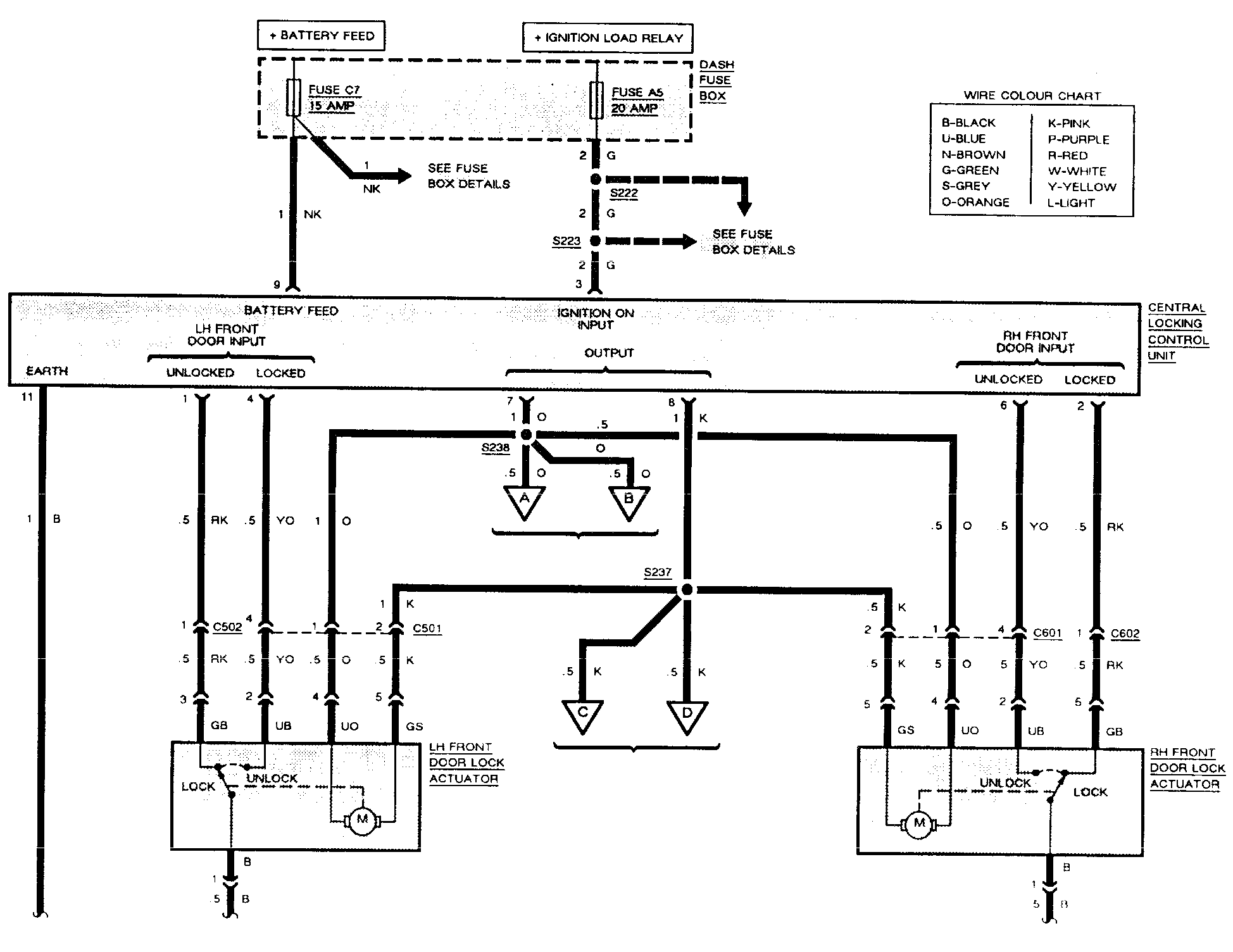

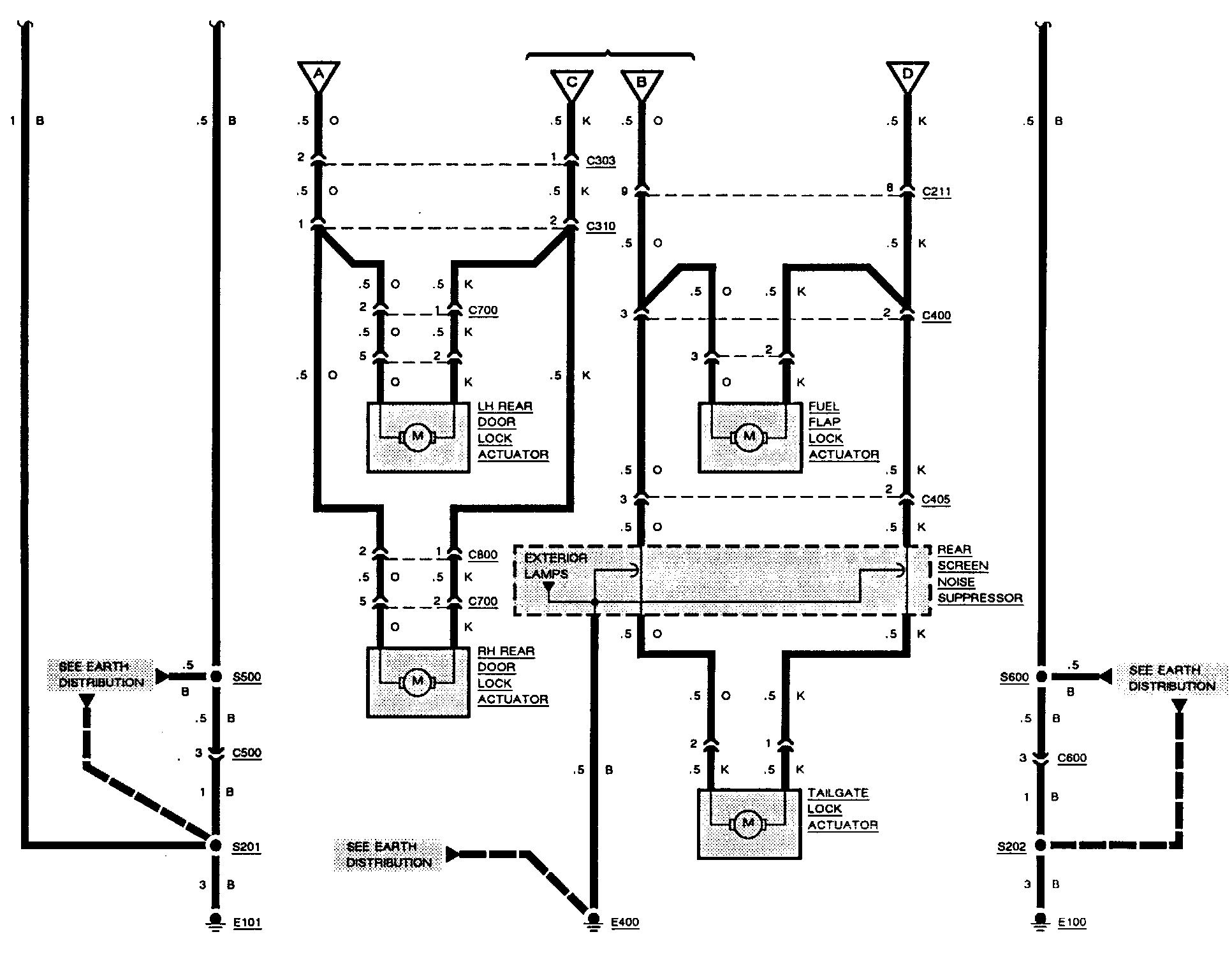

Central Locking:
Central Locking:
