Home
>>
Kia
>>
2012
>>
Rio L4-1.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power and Ground Distribution
>>
System Diagram
>>
Ground Distribution
>>
GGGG03
GGGG03

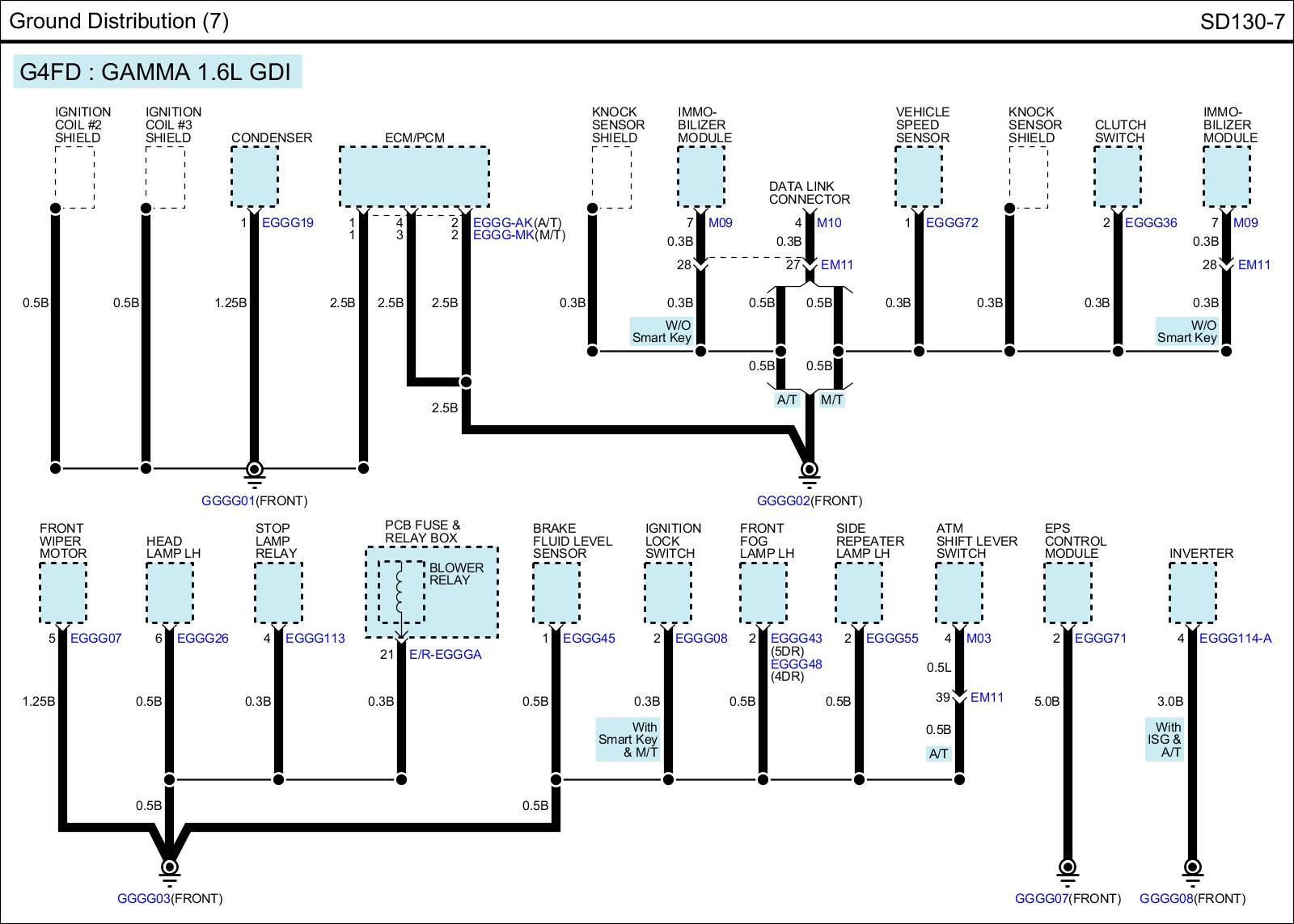

SD130-7 Ground Distribution (7):
