Entertainment System Control Module
Entertainment System Control Module

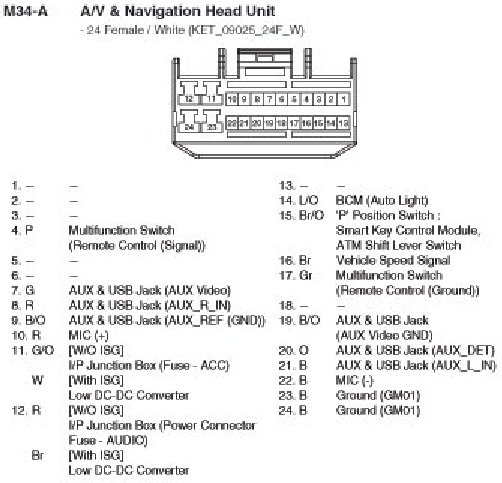

M34-A A/V & Navigation Head Unit:

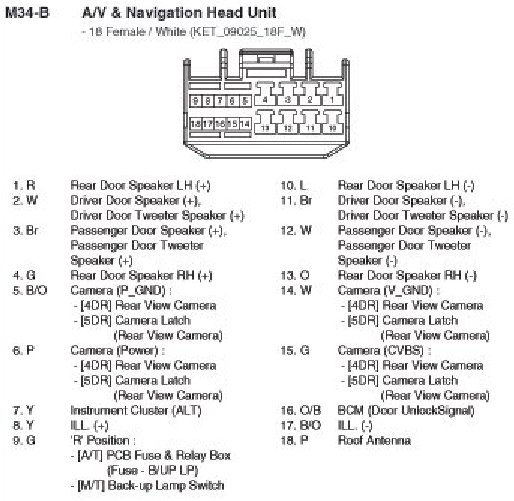

M34-B A/V & Navigation Head Unit:
