Home
>>
Kia
>>
2012
>>
Optima L4-2.4L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
GM01
GM01

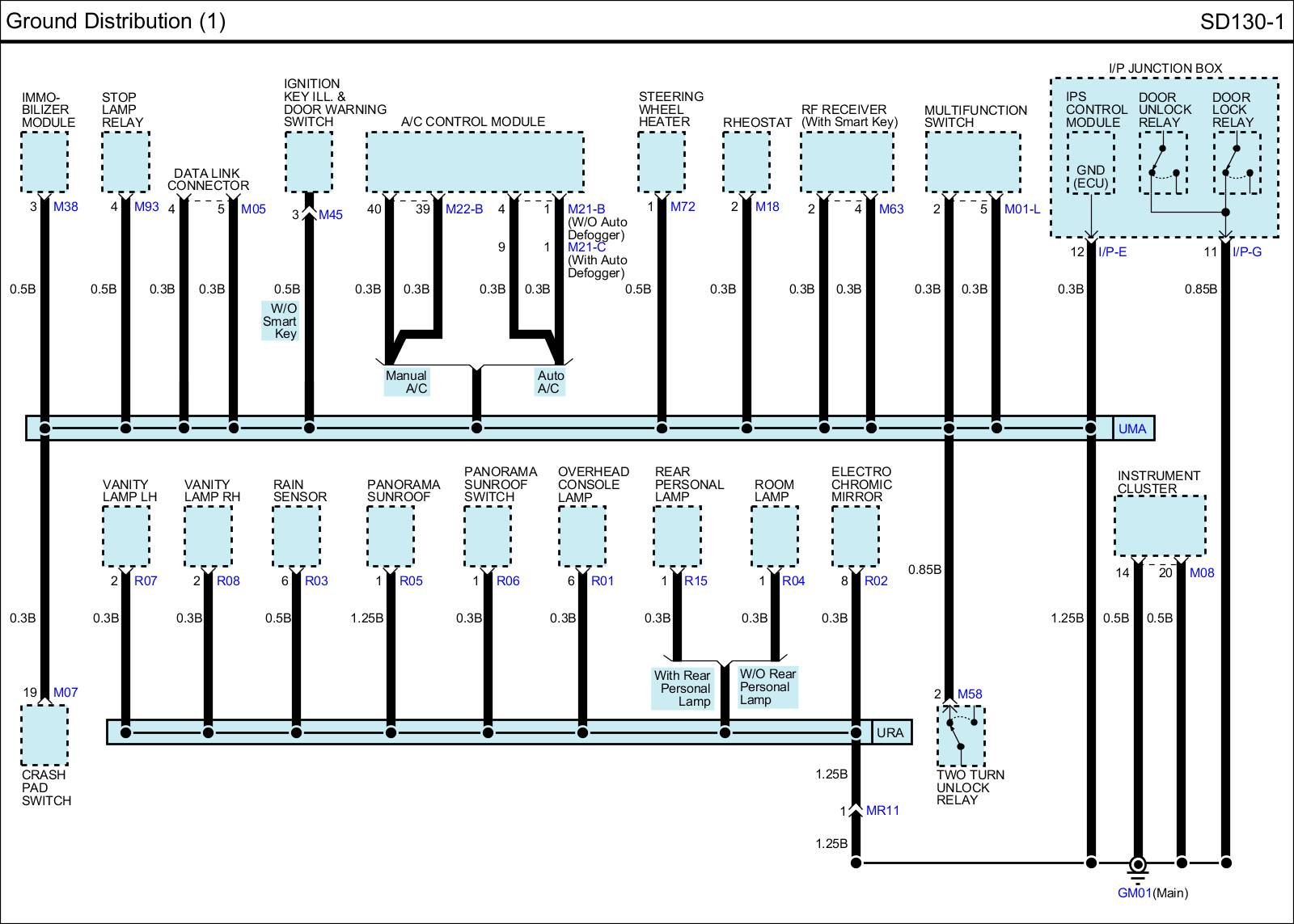

SD130-1 Ground Distribution (1):
