Kia
>>
2012
>>
Optima L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Headlamp
>>
System Diagram
>>
Head Lamp RH
Head Lamp RH

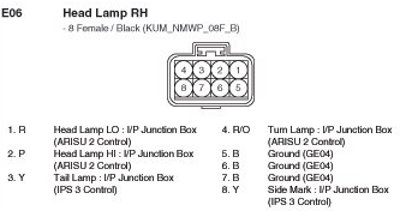

E06 Head Lamp RH:
