Home
>>
Kia
>>
2012
>>
Forte L4-2.4L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
GF41
GF41

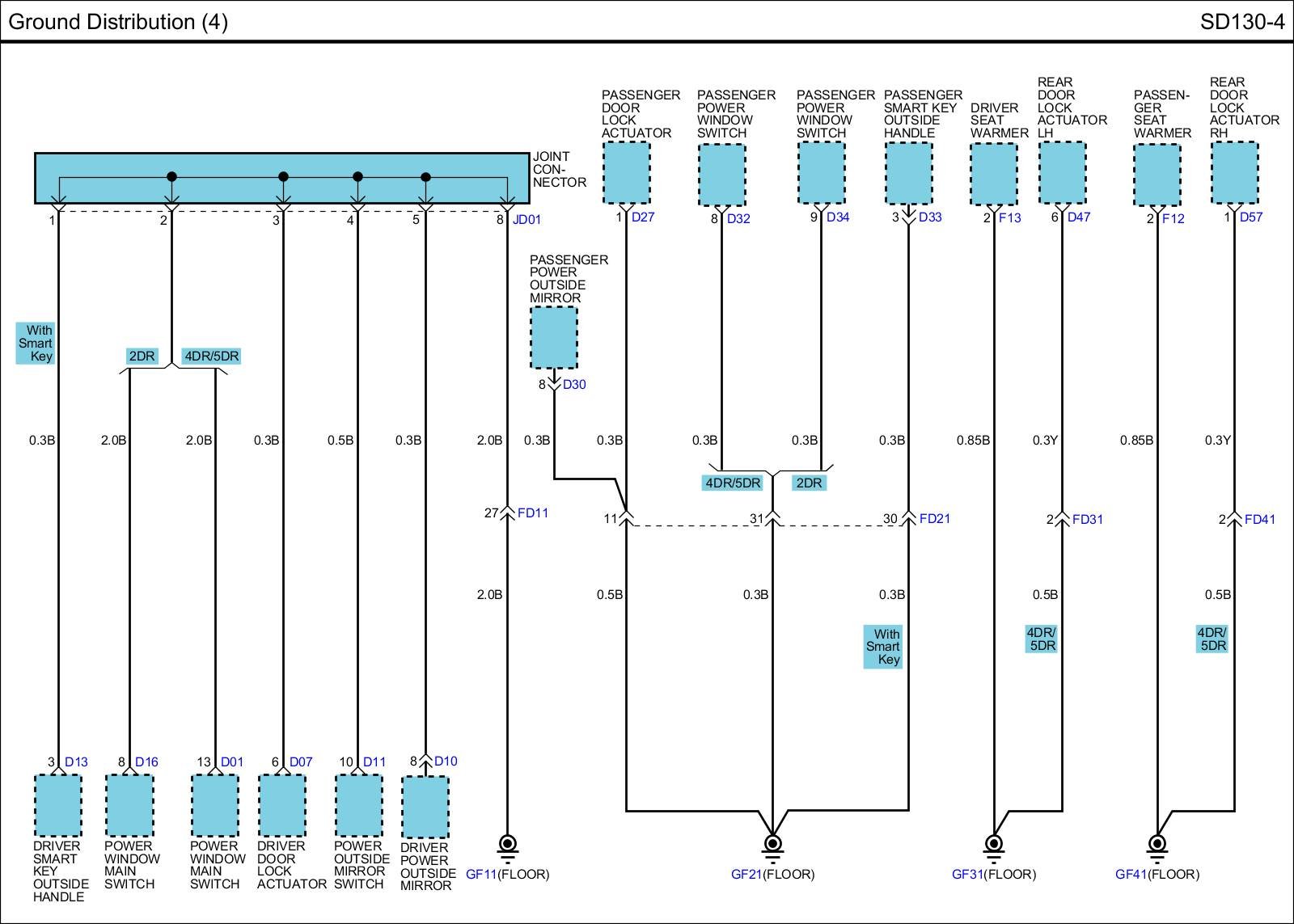

SD130-4 Ground Distribution (4):
