Kia
>>
2012
>>
Forte L4-2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power and Ground Distribution
>>
System Diagram
>>
Ground Distribution
>>
GR11
GR11

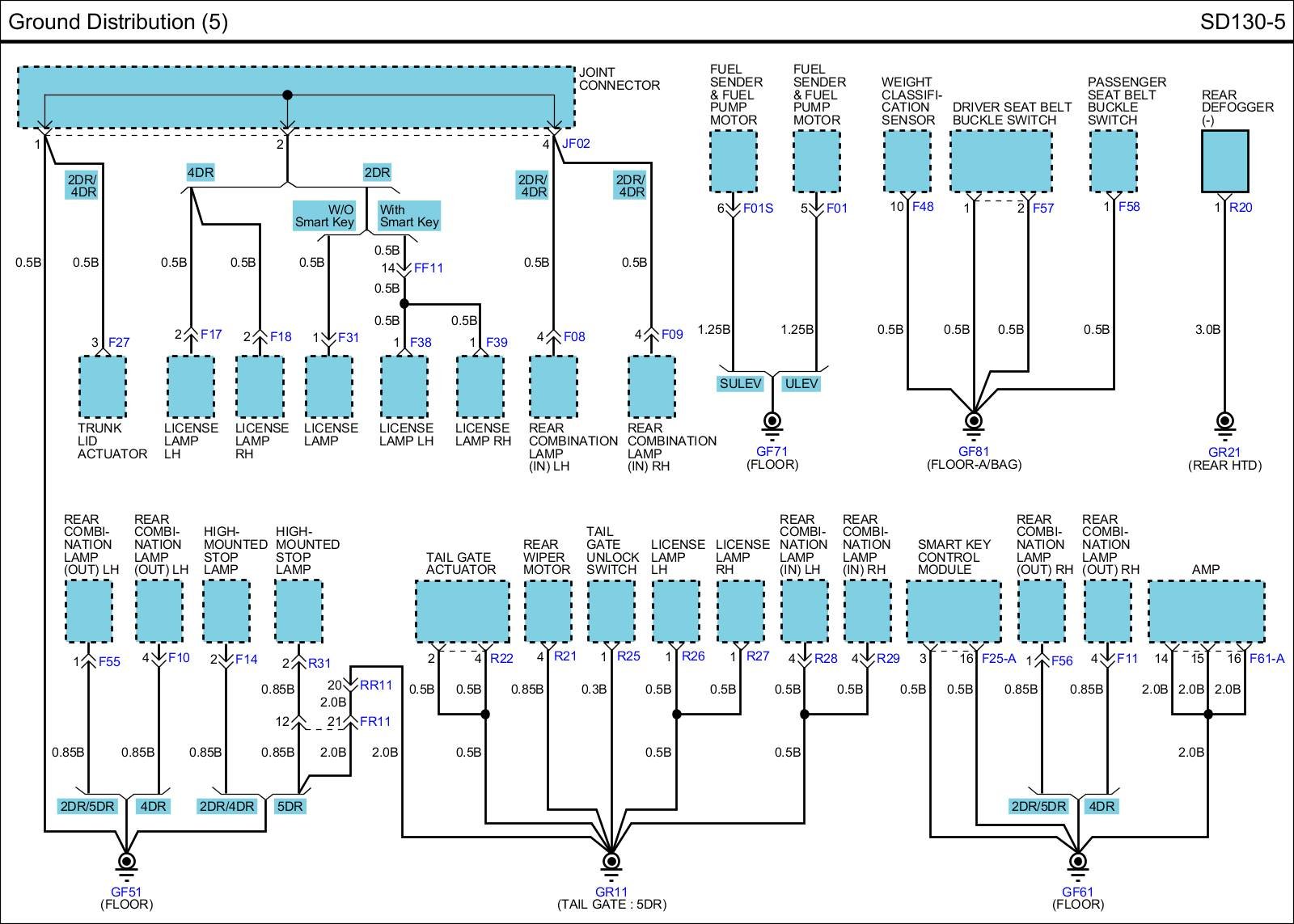

SD130-5 Ground Distribution (5):
