Antilock Brakes / Traction Control Systems
Antilock Brakes / Traction Control Systems

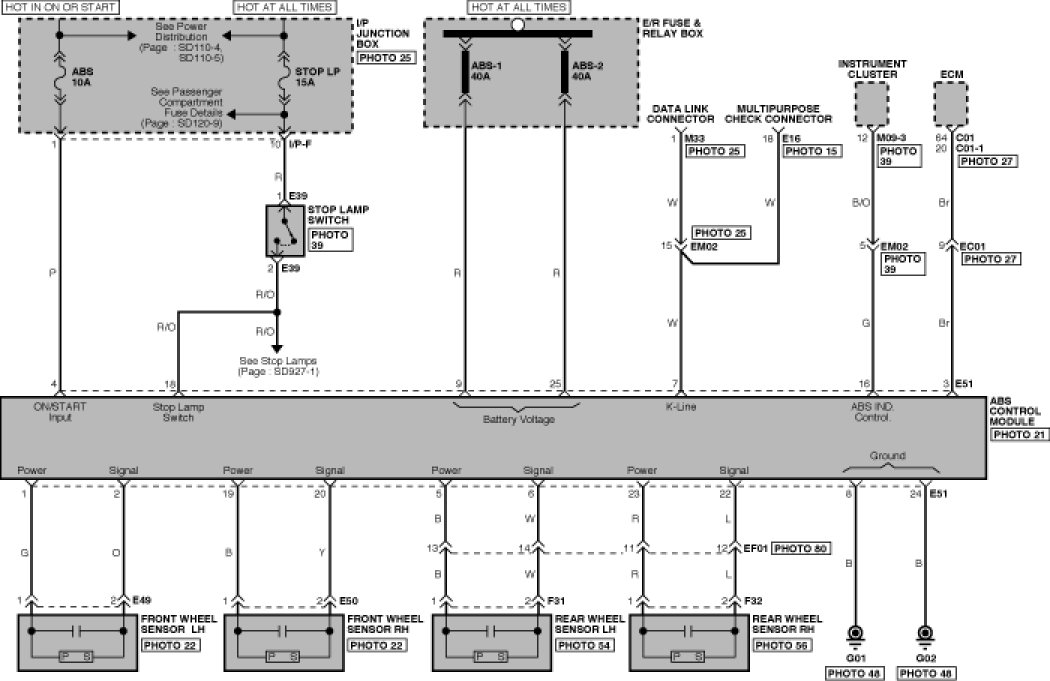

ABS CIRCUIT DIAGRAM

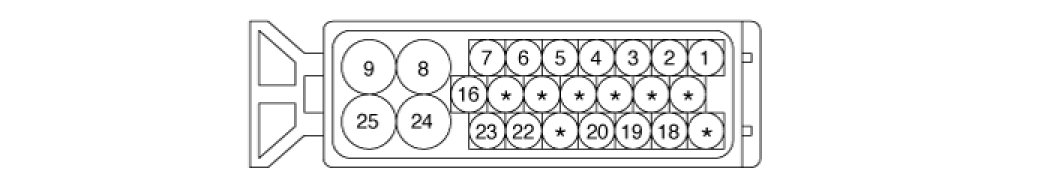

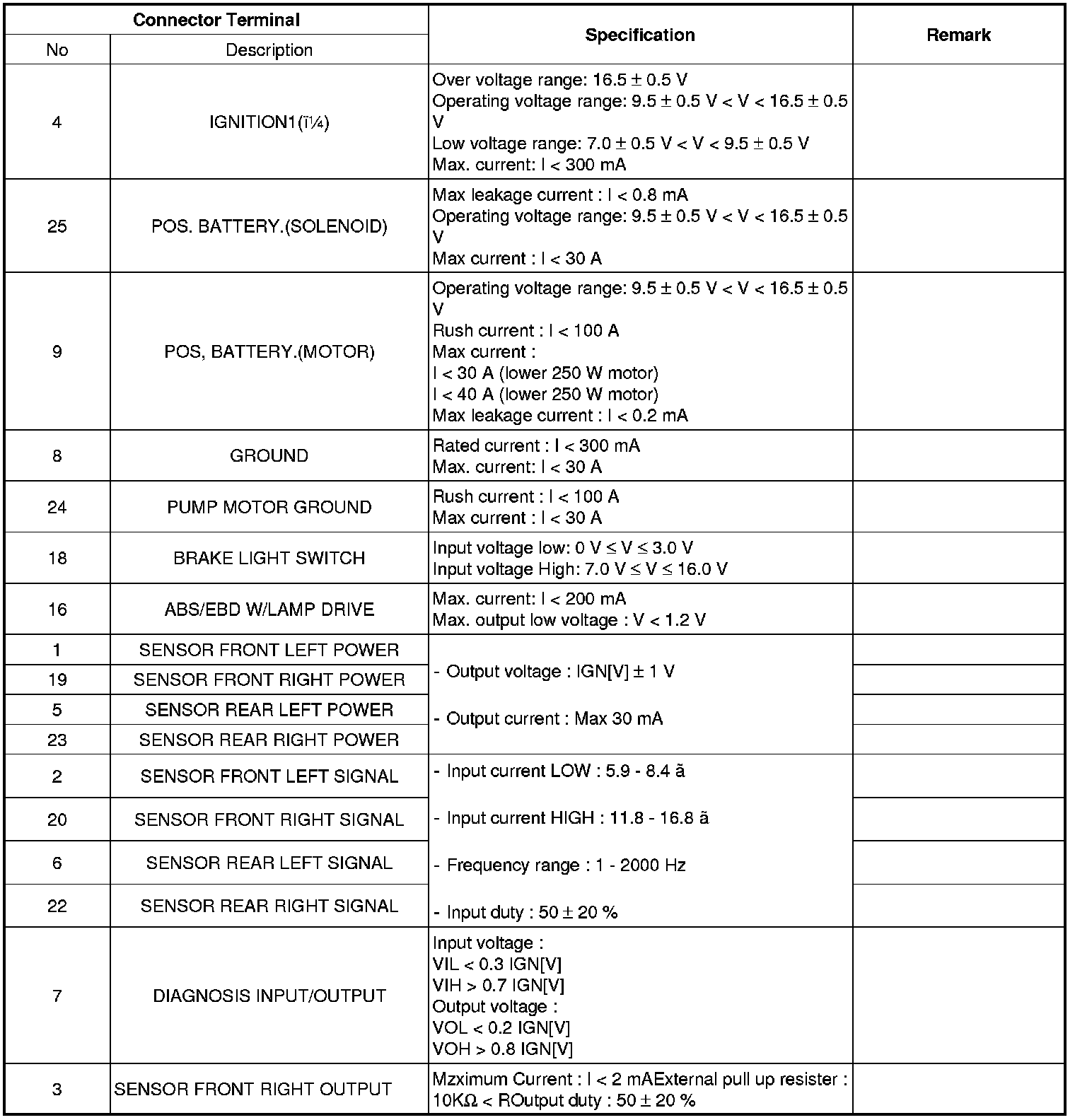

ABS CONNECTOR INPUT/OUTPUT
