Camshaft Position Sensor
>>
Diagrams
>>
Connector Views
>>
Camshaft Position Sensor #1
Camshaft Position Sensor #1

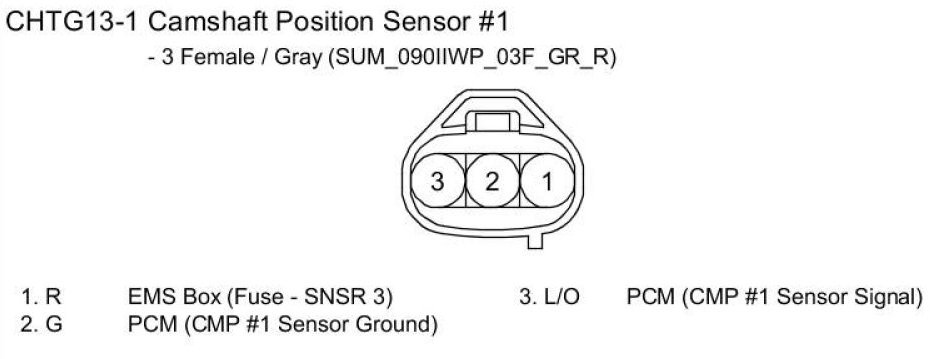

CHTG13-1 Camshaft Position Sensor #1:
