Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Kia
>>
2010
>>
Soul L4-1.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
Variable Induction Control Actuator
Variable Induction Control Actuator

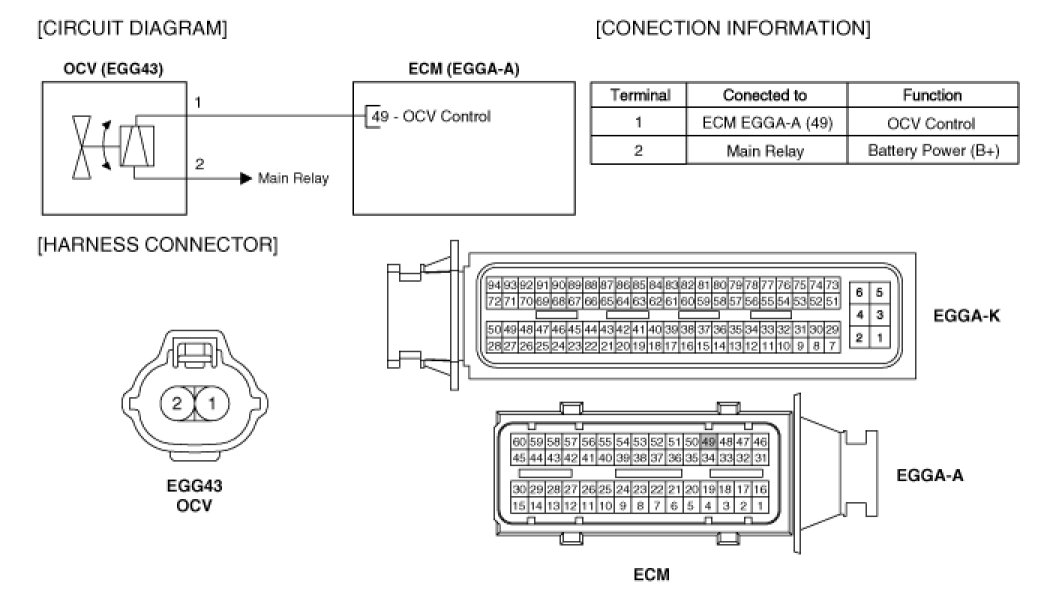

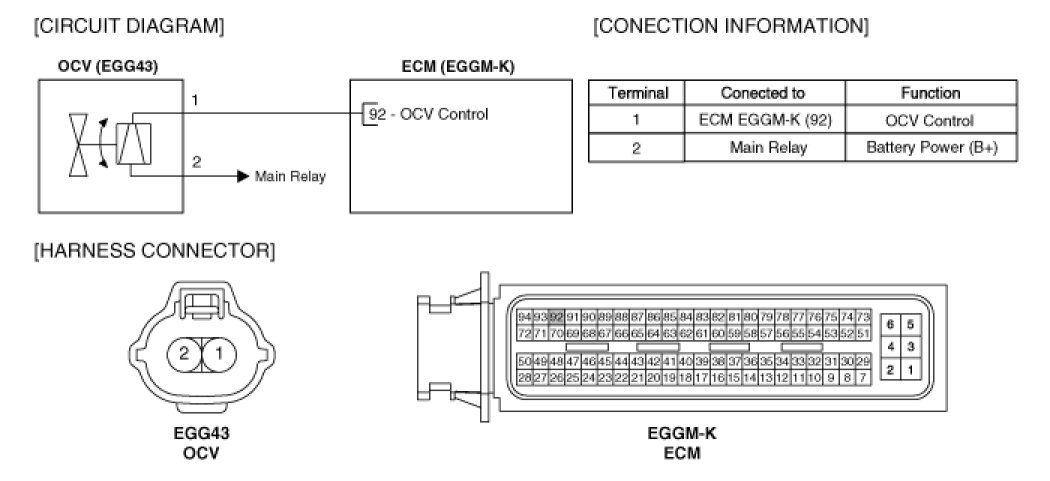

Circuit Diagram
[A/T]
[M/T]
