Air Bag Systems
>>
Circuit Diagram
Circuit Diagram

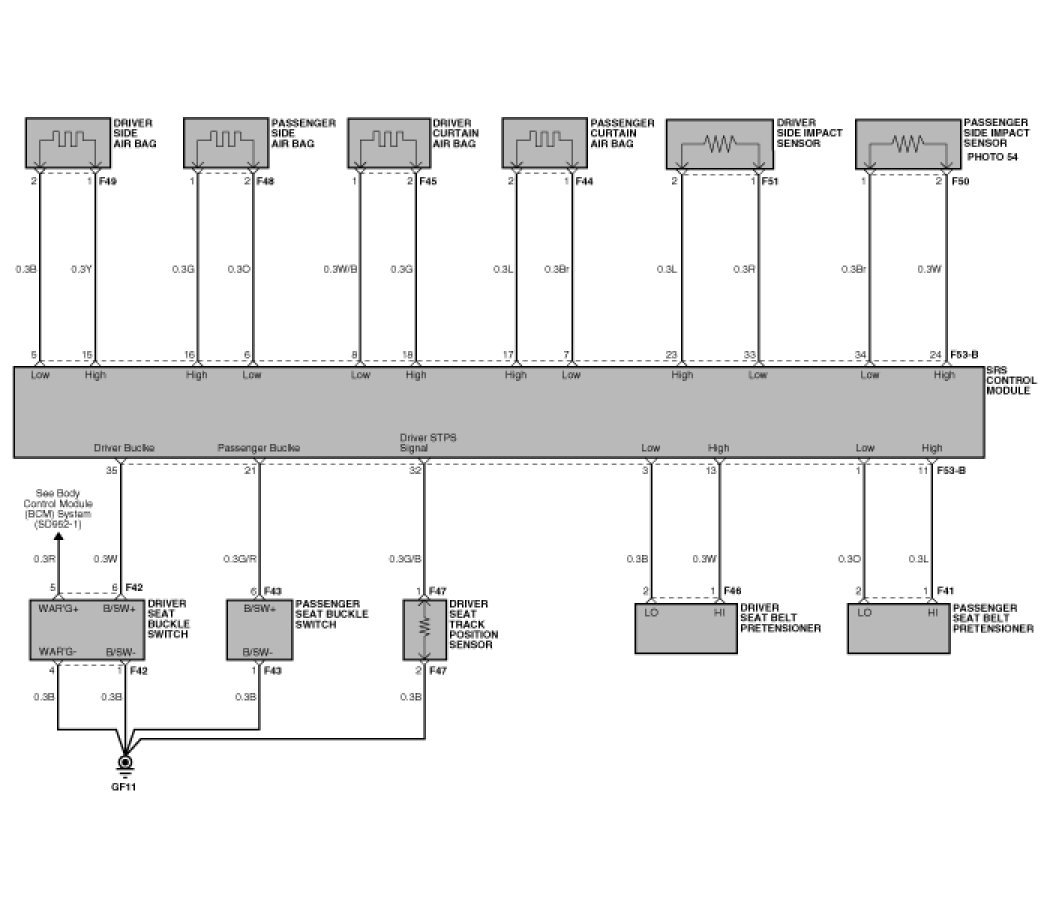

Circuit Diagram (1)

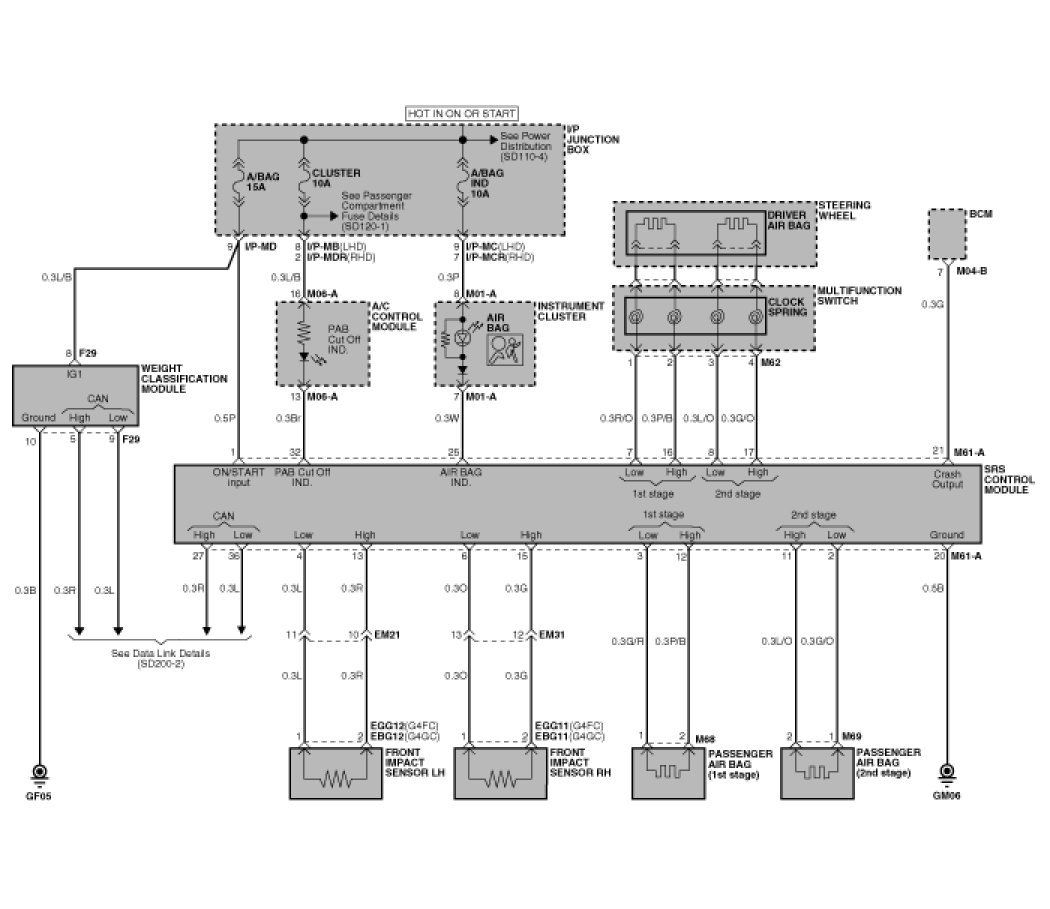

Circuit Diagram (2)
SRSCM Connector Terminal
Harness Connector
