Monitor DTC Status

P0339 Crankshaft Position Sensor \'A\' Circuit Intermittent

Scantool Diagnostics

Monitor GDS Data

1. Connect GDS to Data Link Connector (DLC).
2. Engine start.
3. Monitor the "Engine speed" parameters on the GDS.

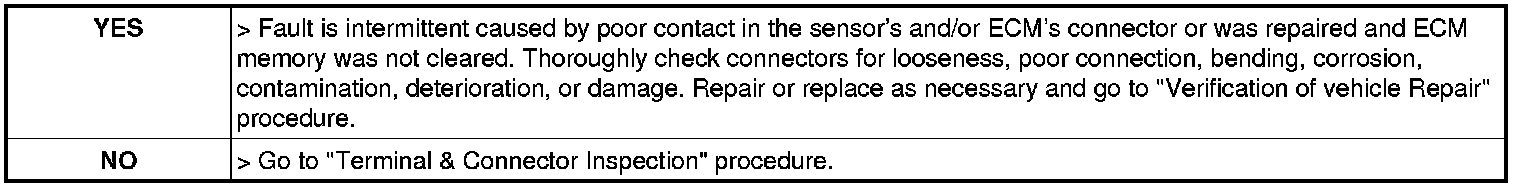

4. Are the parameters displayed correctly?
