Automatic Transmission/Transaxle
>>
System Diagram
System Diagram

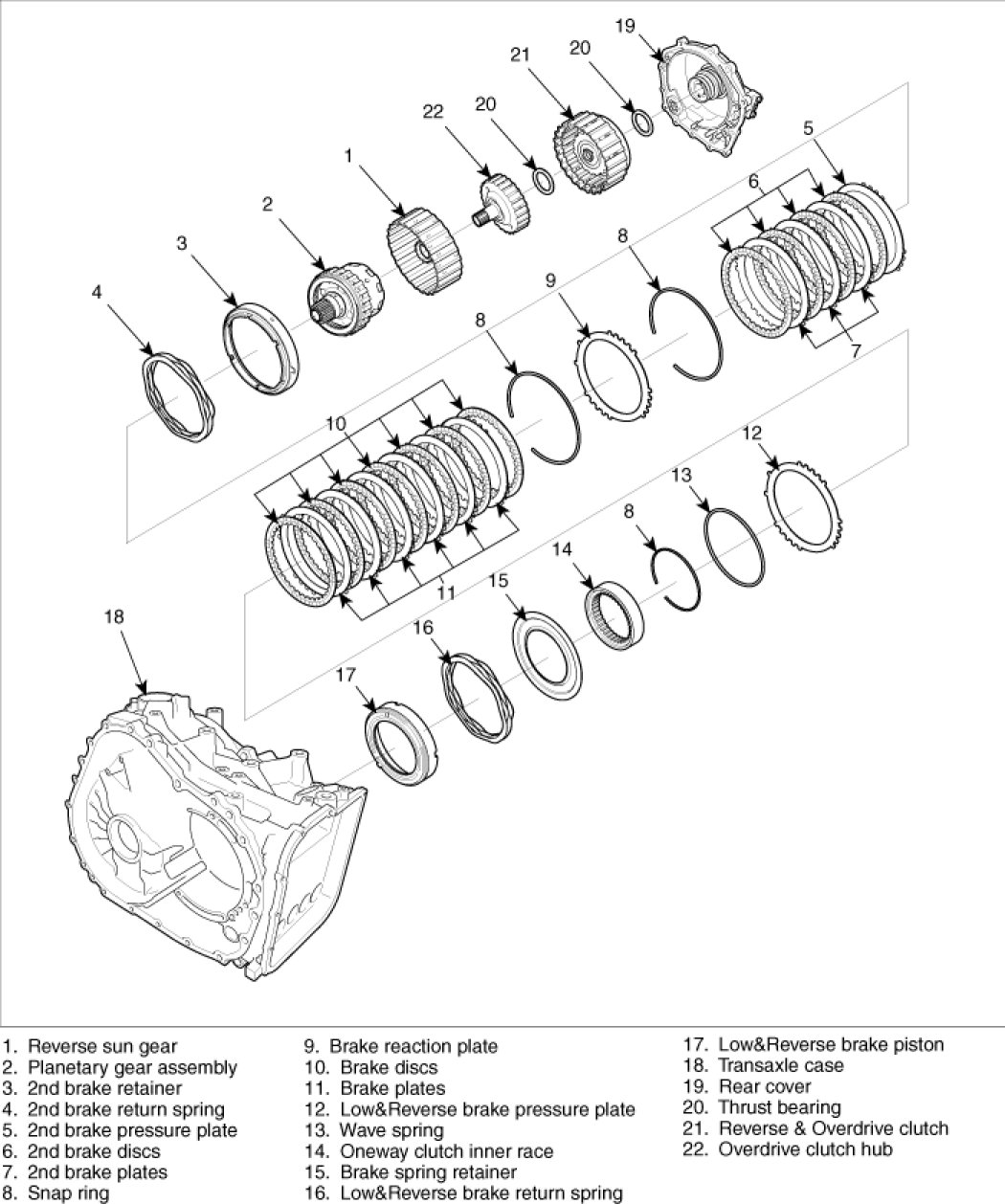

COMPONENTS (1)

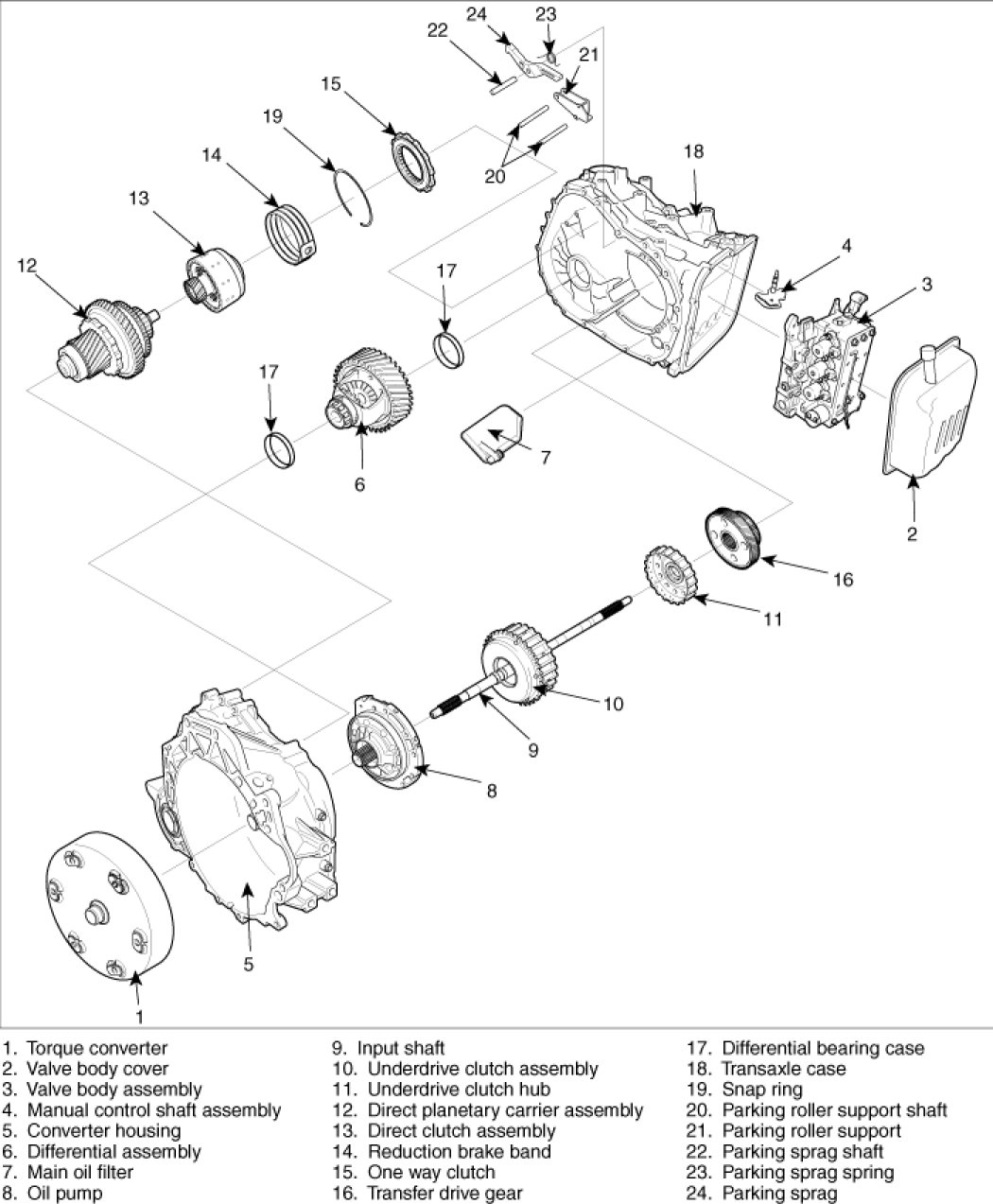

COMPONENTS (2)
COMPONENTS (3)
