Variable Induction Control Actuator
>>
Variable Charge Motion Actuator (VCMA)
Variable Charge Motion Actuator (VCMA)

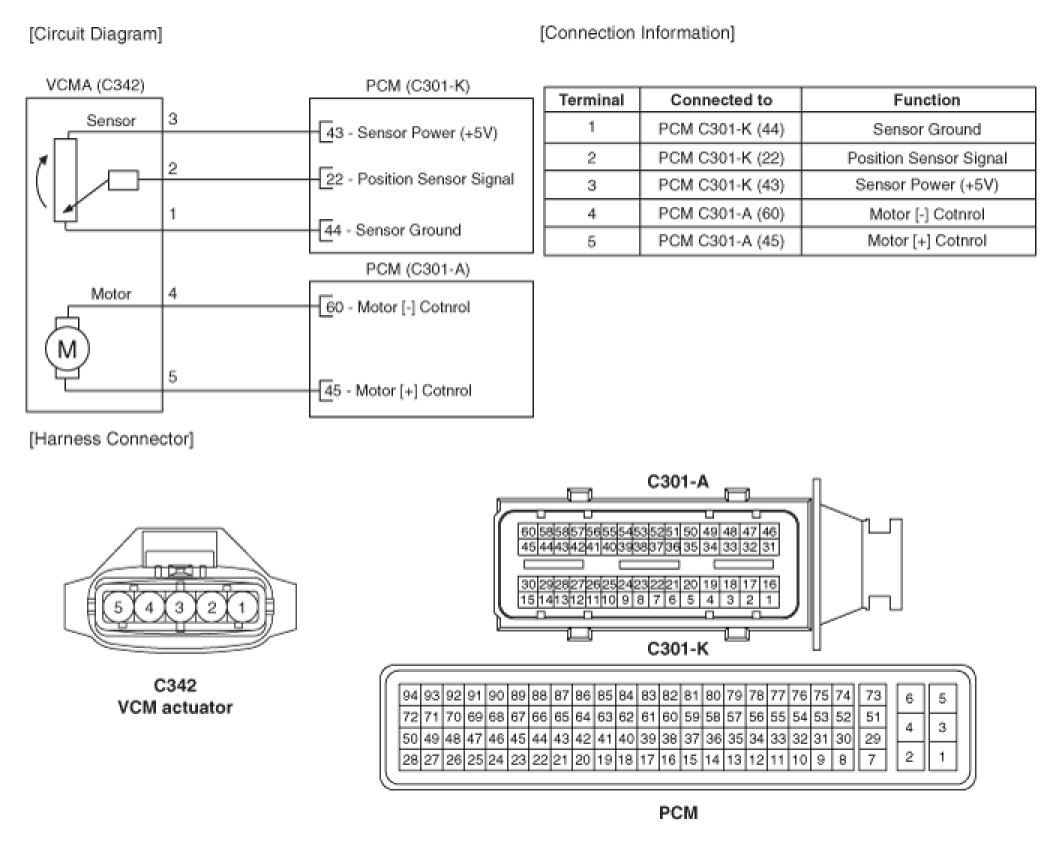

Circuit Diagram
