Body Control Module

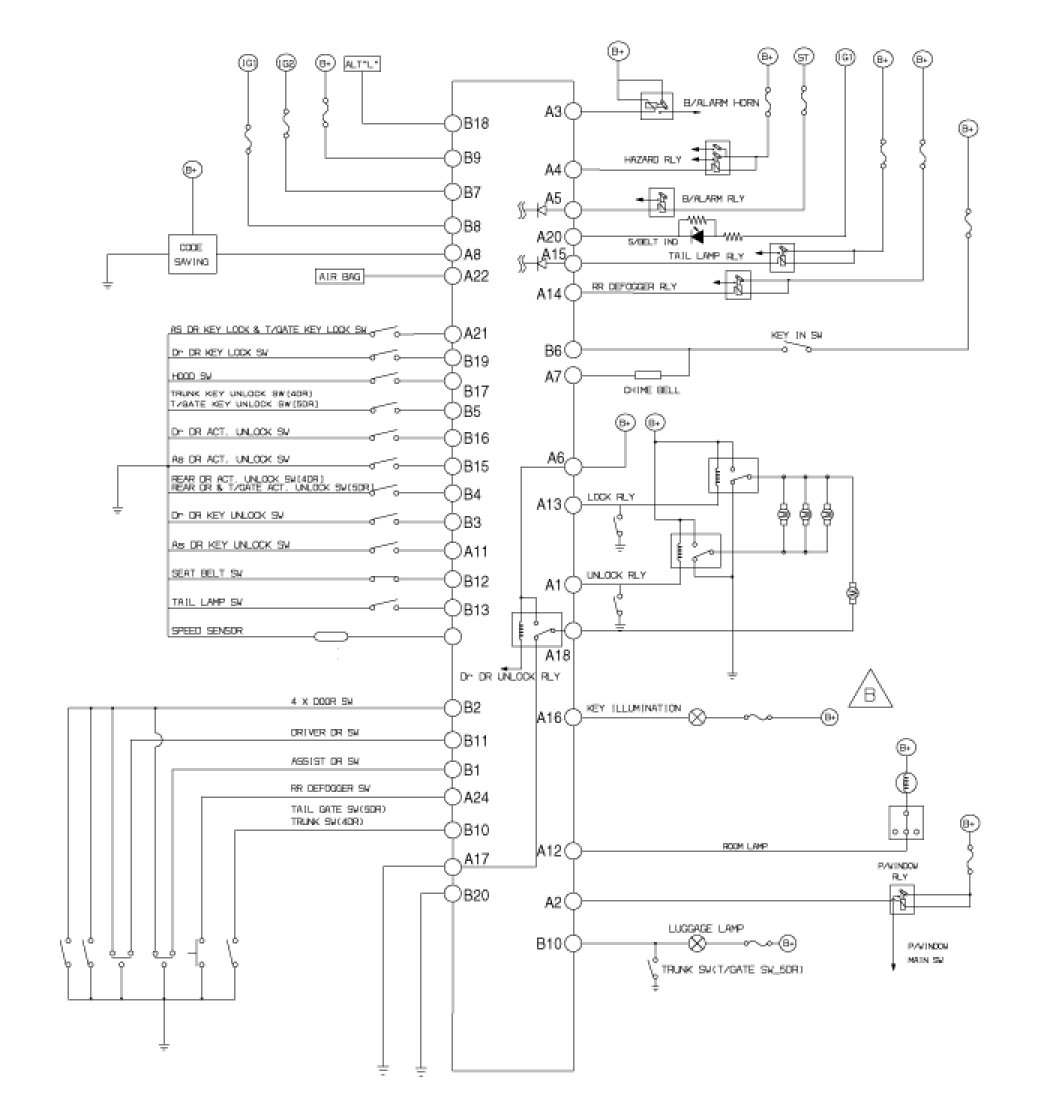

CIRCUIT DIAGRAM

BCM & RECEIVER




BCM

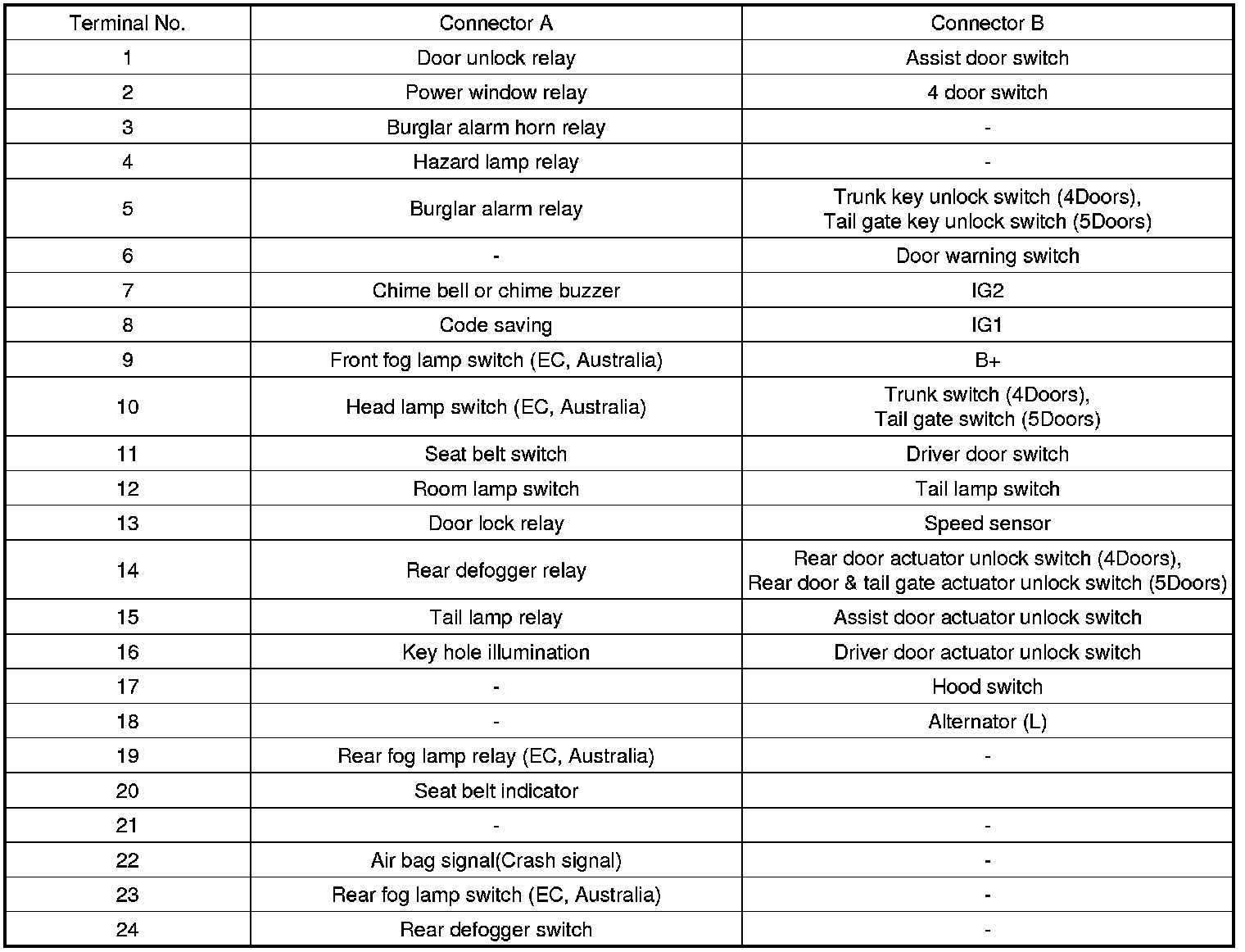

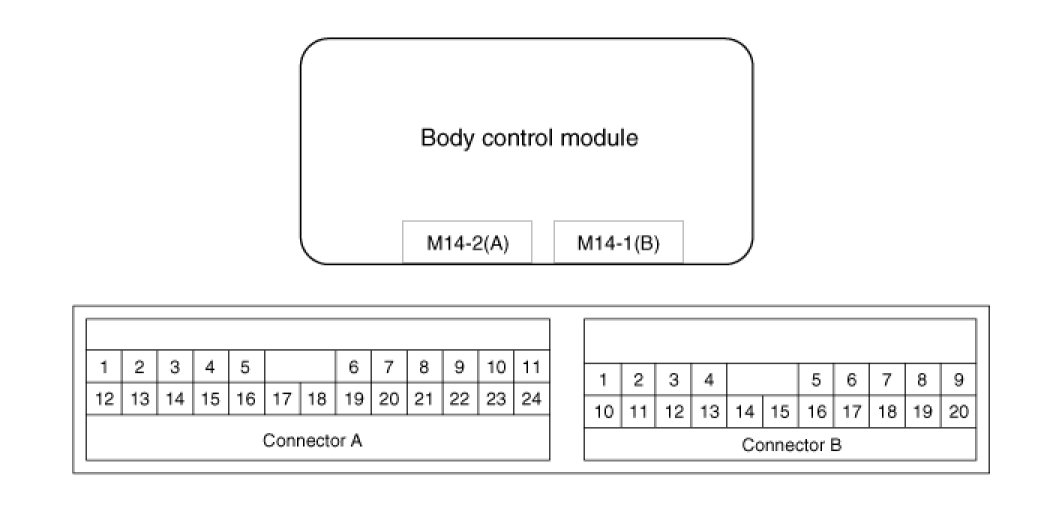

BCM CONNECTOR TERMINALS

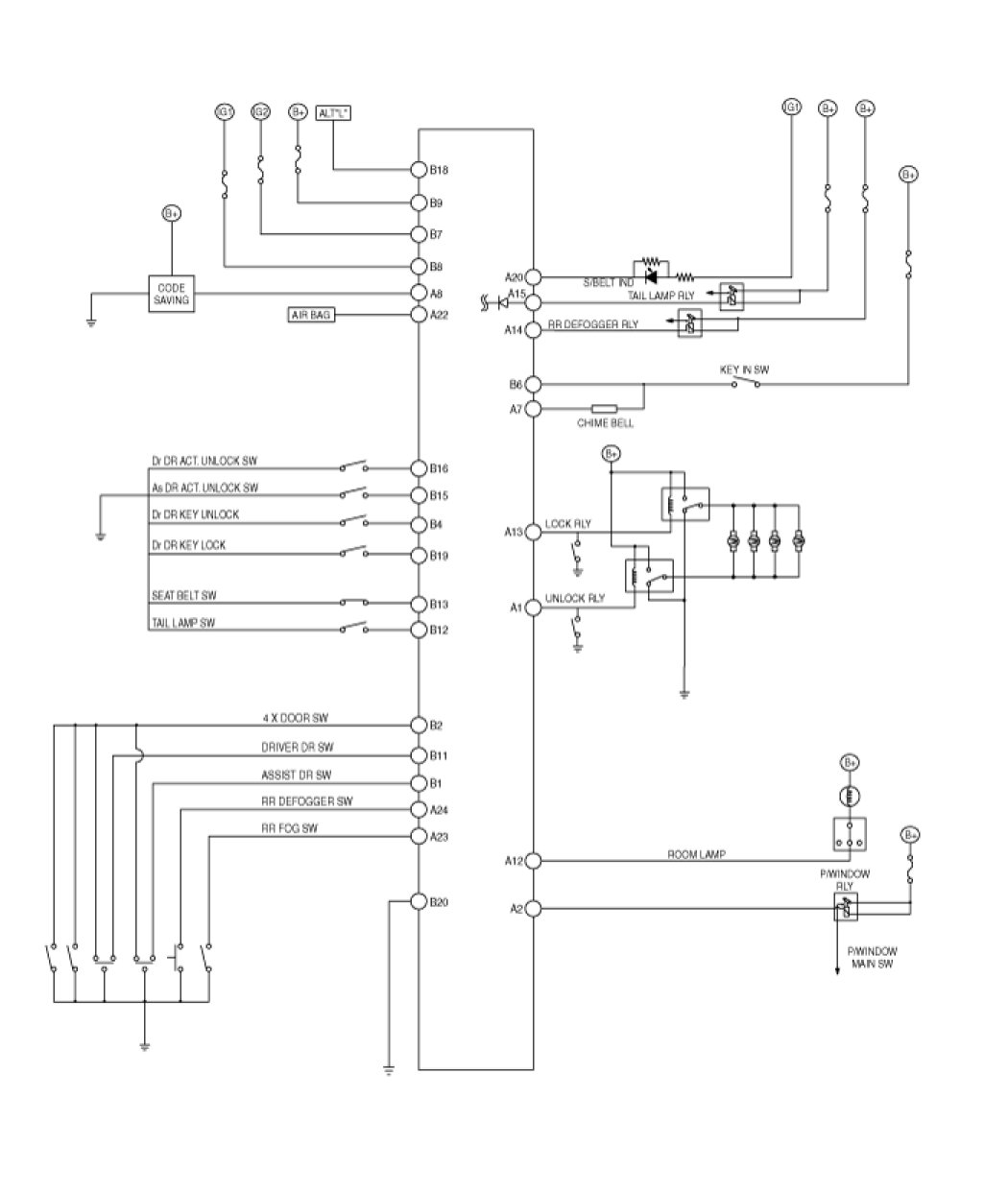

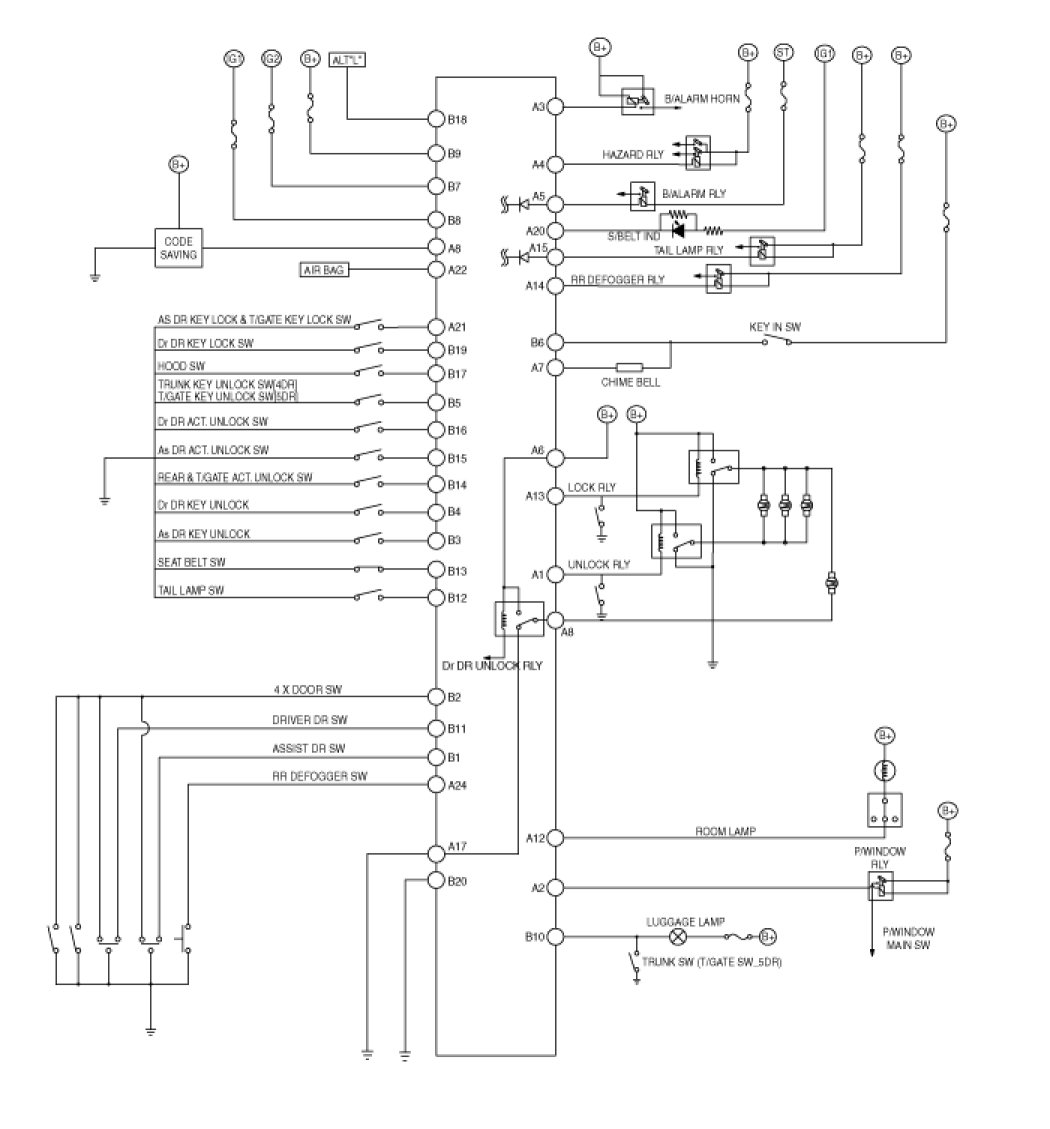

Circuit Diagram




BCM

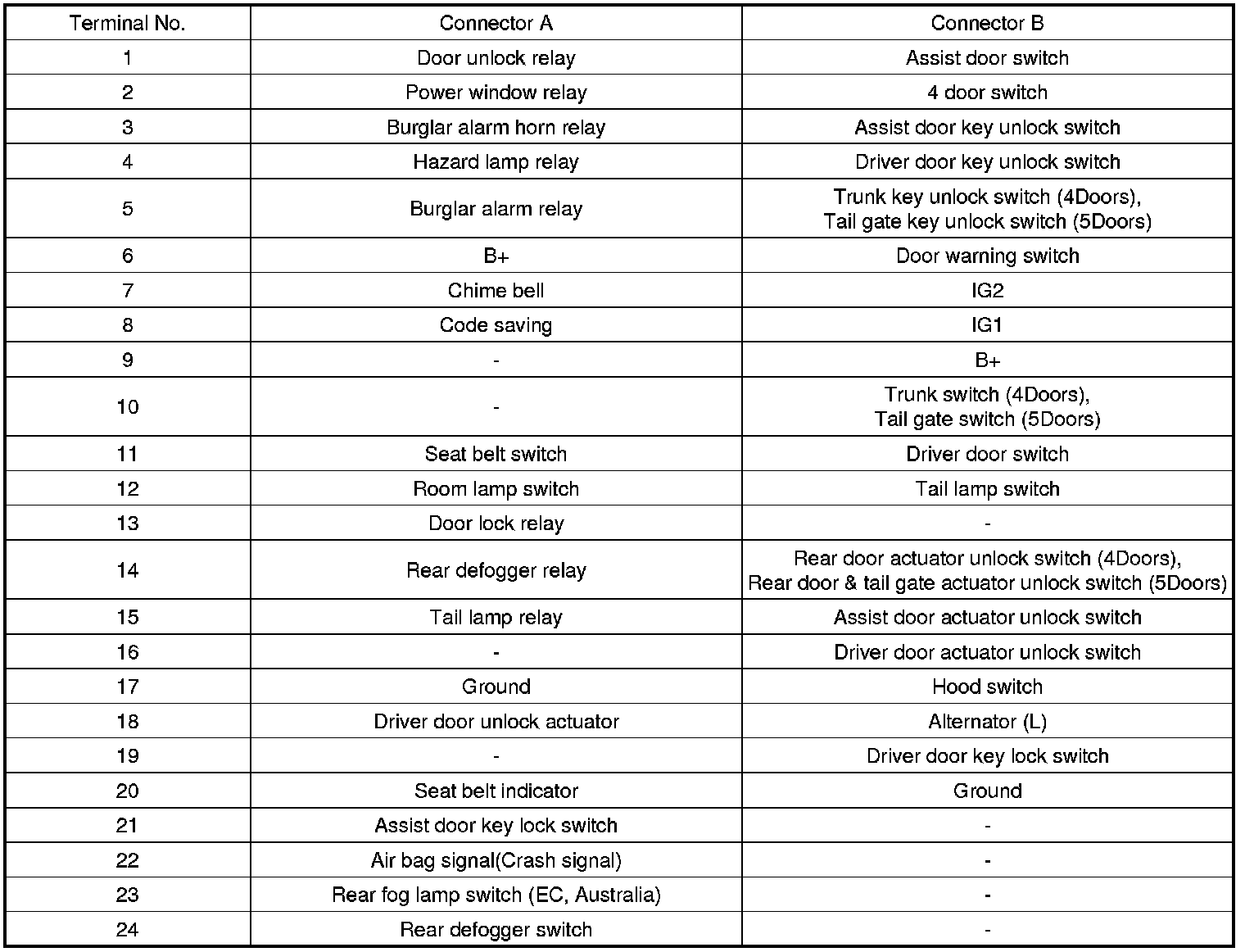

BCM Connector Terminals
