Front Door





SPEAKER REPLACEMENT
1. Remove the front door trim.

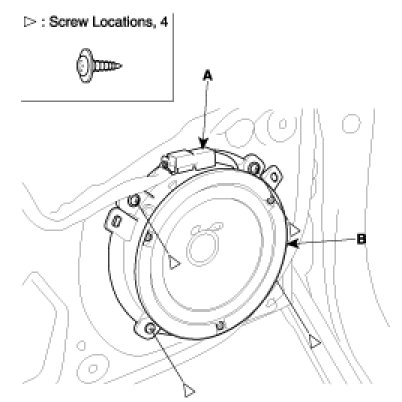

2. After disconnect the speaker mounting screw and connector(A), remove the speaker(B).




3. Installation is the reverse of removal.
