Rear Seat Belt

REPLACEMENT

REAR SEAT BELT REPLACEMENT

CAUTION:
- When installing the belt, make sure not to damaged the pretensioner.

1. Remove the following items first.
A. Rear seat assembly.
B. Front and rear door scuff trim.
C. Rear filler trim.

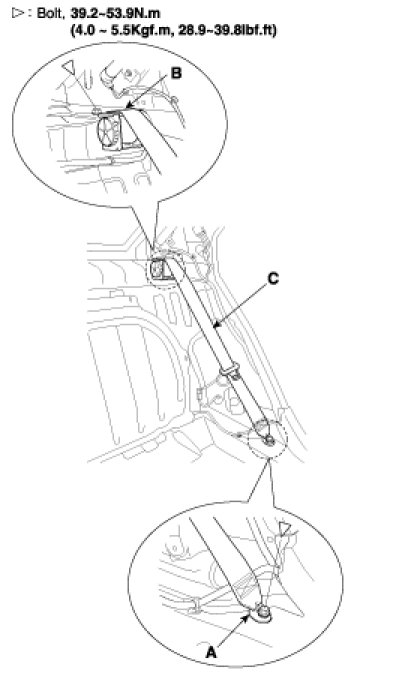

2. Remove the lower anchor (A).
3. Remove the package tray trim.
4. After loosening the retractor (C) mounting bolt, remove the rear seat belt (B).




5. Installation is the reverse of removal.
